BMW E36 Front Drift Angle Lock Kit

• Higher roll center
  Wisefab suspension kit brings the front roll center up on lowered cars, providing higher roll stiffness and letting to remove the front anti roll bar (swaybar) enabling maximum usable lock.
• Revised steering geometry (Ackermann)
  Normally in a corner the inner wheel has a greater angle than the outer. For drifting this means loss of speed and grip and we have correted this for best performance.
• Good camber control with high steering angles
  With high steering angles the leading wheel will have a positive camber, which is not a positive effect. It reduces the front grip and during turn or flip it creates a contact patch transition from inside edge to outside edge. It is not possible to eliminate it, but with our geometry it has decreased as much as possible.
• Steering jacking control
  During drifting, when steering angle is much bigger, jacking is also bigger, even with the same geometry and it could become a problem. We have monitored it and changed the geometry that it doesn’t cause any handling issues.
• Predictable self-alignment control
  With certain suspension geometry at high steering angles it could happen that the steering wheel is locking up at the end and driver needs to apply some force to flip it to other side. We know what causes it and have decreased it to minimum, if not eliminated it.
• Adjustable lock-stopper.
• Stronger inner ball joint design over OEM and older Wisefab version.

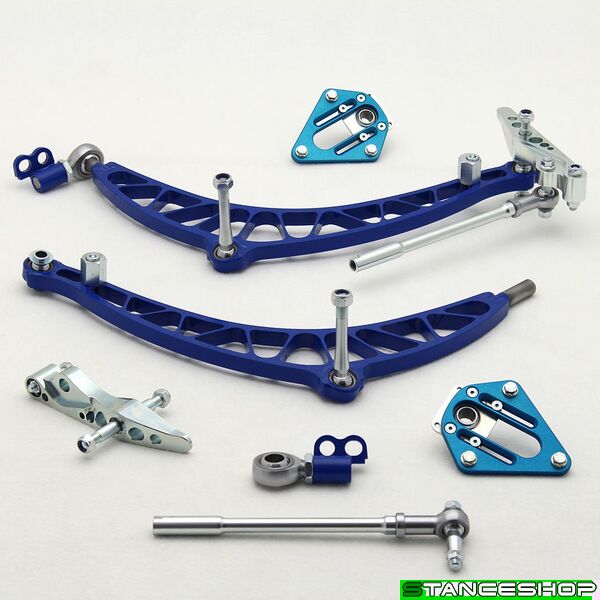

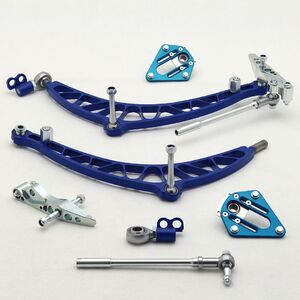

Kit includes:

• Adjustable coilover upper mounts, Formula Drift compliance.
• Hub add-ons with hardware.
• Lightweight lower control arms.
• Assembeled tie rods.
• Adjustable lower control arm rear mount.
• Installation guide

Other components, packaging and clearance.

• This kit assumes coilovers to have enough clearance.
• We recommend tire diameter not bigger than 620mm (235/40 R17).
• Wider fenders or fender flares needed with this kit.

Complete parts

1



Knuckle Add-on

Left

WF036_100LA

210.00€

Right

WF036_100RA

210.00€

2



Lower Control Arm

Left

WF036_200LA

310.00€

Right

WF036_200RA

310.00€

3



Tierod Assembly

WF036_600A

85.00€

4



Top Mount

WF036_500A

105.00€

5



Lower Control Arm Mount

Right

WF536_100RA

75.00€

6



Lower Control Arm Mount

Left

WF536_100LA

75.00€

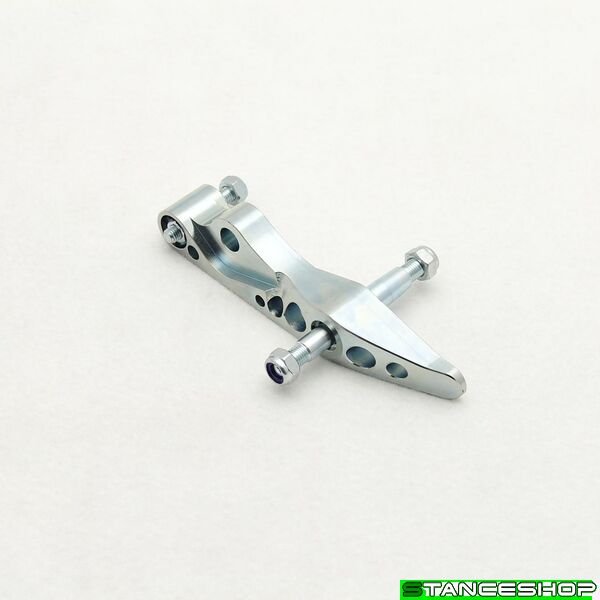

Left Knuckle Add-on

1



Knuckle Add-on

Left

WF036_100LA

210.00€

2



Conical Bolt D16.4 L125

WF036_901

21.00€

3



Conical Bolt D14 L60

WF036_902

11.00€

4



Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8

B02212150R2ZD9858

1.50€

5



Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8

B02210150R2ZD9858

1.50€

6



Nut Hex Flange M10x1.5 RH 8.8 ZN

B02510150R2ZD69238

2.80€

Right Knuckle Add-on

1



Knuckle Add-on

Right

WF036_100RA

210.00€

2



Conical Bolt D16.4 L125

WF036_901

21.00€

3



Conical Bolt D14 L60

WF036_902

11.00€

4



Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8

B02212150R2ZD9858

1.50€

5



Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8

B02210150R2ZD9858

1.50€

6



Nut Hex Flange M10x1.5 RH 8.8 ZN

B02510150R2ZD69238

2.80€

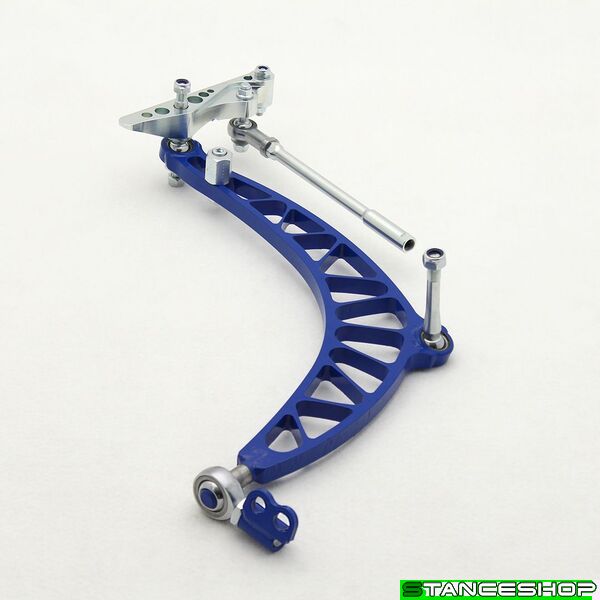

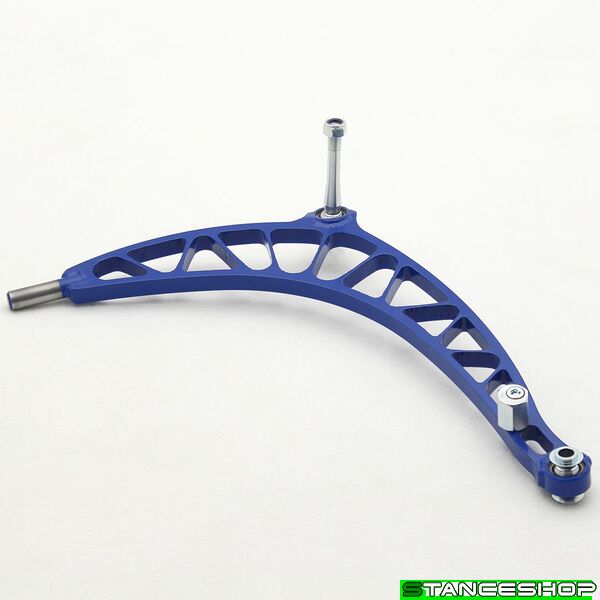

Left Lower Control Arm

1



Lower Control Arm

Left

WF036_200LA

310.00€

2



Bolt Allen M12x1.50x 12.5 RH 12.9 ZN

WF036_911

20.00€

3



BushingT ID 8 OD22 h51 Excentric Lock Stopper

WF036_913

19.00€

4



Bolt Allen M10x1.5x 55 RH 8.8 ZN DIN 912

B01210150055R2ZD912

1.50€

5



Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8

B02210150R2ZD9858

1.50€

6



Spacer ID14 OD16 h10 SPC

WF036_908

8.40€

7



C-Clip InternalSTD d32 ST DIN472

B04132SD472

1.50€

8



Spherical ID16/OD32

SSPHERICAL 16/32

25.00€

9



Spacer ID14 OD16 h10

WF036_903

8.40€

10



Nut Nylock M14x1.5 RH 8.8 ZN DIN985-8

B02214150R2ZD9858

1.50€

11



Control Arm Inner Joint Shaft V2

WF036_920

21.00€

Right Lower Control Arm

1



Lower Control Arm

Right

WF036_200RA

310.00€

2



Bolt Allen M12x1.50x 12.5 RH 12.9 ZN

WF036_911

20.00€

3



BushingT ID 8 OD22 h51 Excentric Lock Stopper

WF036_913

19.00€

4



Bolt Allen M10x1.5x 55 RH 8.8 ZN DIN 912

B01210150055R2ZD912

1.50€

5



Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8

B02210150R2ZD9858

1.50€

6



Spacer ID14 OD16 h10 SPC

WF036_908

8.40€

7



C-Clip InternalSTD d32 ST DIN472

B04132SD472

1.50€

8



Spherical ID16/OD32

SSPHERICAL 16/32

25.00€

9



Spacer ID14 OD16 h10

WF036_903

8.40€

10



Nut Nylock M14x1.5 RH 8.8 ZN DIN985-8

B02214150R2ZD9858

1.50€

11



Control Arm Inner Joint Shaft V2

WF036_920

21.00€

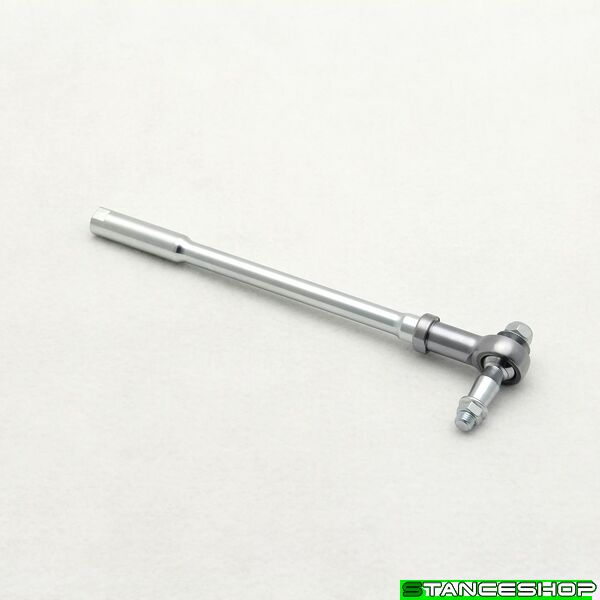

Tierod Assembly

1



Tierod Assembly

WF036_600A

85.00€

2



Tie Rod Extension

WF036_904

31.00€

3



Rod end 14x1.5 RH female CrMo

SRODEND14X1.5 RH F

26.00€

4



Nut Collar M12x1.50 RH ZN SPC

WF001_12X15

8.40€

5



Conical Bolt D16.4 L66

WF036_909

15.00€

6



Spacer ID10 OD14 h 5.4

WF080_921

7.30€

7



Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8

B02210150R2ZD9858

1.50€

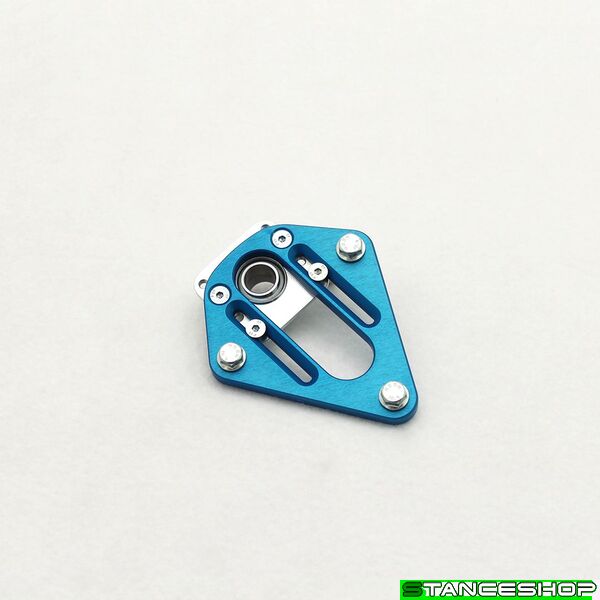

Top Mount

1



Top Mount

WF036_500A

105.00€

2



Camber Plate Spherical Housing REG

WF013_917A

50.00€

3



Bolt HexFlange M 8x1.25x 10 RH 10.9 ZN DIN6921

B01608125010R2ZD6921

2.80€

4



Bolt AllenFlat M 6x1.0x 16 RH 8.8 ZN DIN7991

B01306100016R2SD7991

1.50€

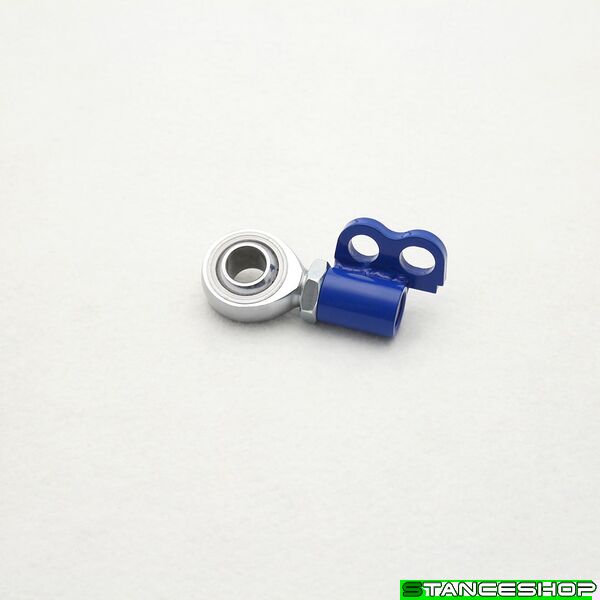

Right Lower Control Arm Mount

1



Lower Control Arm Mount

Right

WF536_100RA

75.00€

2



Rod end 20x1.5 RH male CrMo

SRODEND 20X1.5 RH M

31.00€

3



Nut Thin M20x1.5 RH 8.8 ZN DIN936/439

B02320150R2ZD936/439

2.80€

4



Lower Control Arm Mount Washer

WF536_102

6.30€

5



Bolt Allen M10x1.5x 40 RH 10.9 ZN DIN 912

B01210150040R3ZD912

1.50€

Left Lower Control Arm Mount

1



Lower Control Arm Mount

Left

WF536_100LA

75.00€

2



Rod end 20x1.5 RH male CrMo

SRODEND 20X1.5 RH M

31.00€

3



Nut Thin M20x1.5 RH 8.8 ZN DIN936/439

B02320150R2ZD936/439

2.80€

4



Lower Control Arm Mount Washer

WF536_102

6.30€

5



Bolt Allen M10x1.5x 40 RH 10.9 ZN DIN 912

B01210150040R3ZD912

1.50€
