BMW E46 M3 Front Drift Angle Lock Kit
- Higher roll center
Wisefab suspension kit brings the front roll center up on lowered cars, providing higher roll stiffness and letting to remove the front anti roll bar (swaybar) enabling maximum usable lock. - Revised steering geometry (Ackermann)
Normally in a corner the inner wheel has a greater angle than the outer. For drifting this means loss of speed and grip and we have correted this for best performance. - Good camber control with high steering angles
With high steering angles the leading wheel will have a positive camber, which is not a positive effect. It reduces the front grip and during turn or flip it creates a contact patch transition from inside edge to outside edge. It is not possible to eliminate it, but with our geometry it has decreased as much as possible. - Steering jacking control
During drifting, when steering angle is much bigger, jacking is also bigger, even with the same geometry and it could become a problem. We have monitored it and changed the geometry that it doesn’t cause any handling issues. - Predictable self-alignment control
With certain suspension geometry at high steering angles it could happen that the steering wheel is locking up at the end and driver needs to apply some force to flip it to other side. We know what causes it and have decreased it to minimum, if not eliminated it.

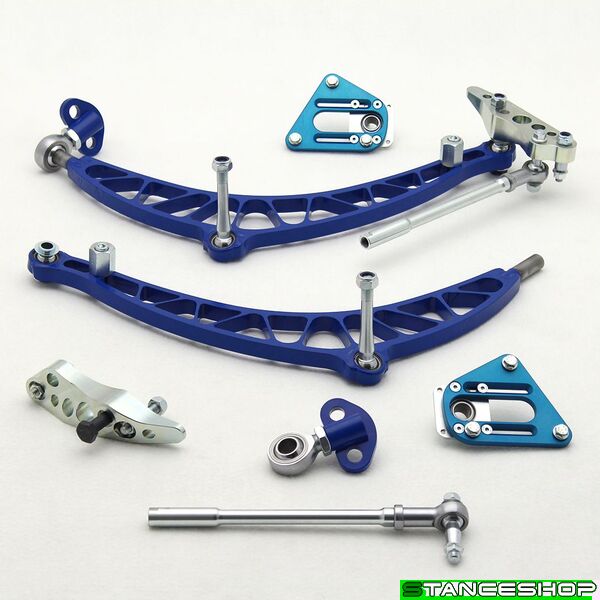

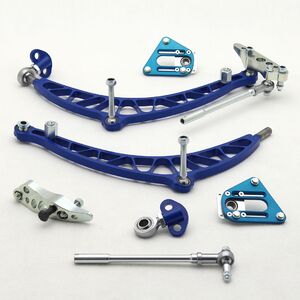

Kit includes:
- Adjustable coilover upper mounts, Formula Drift compliance.
- Hub add-ons with hardware.
- Lightweight lower control arms.
- Assembeled tie rods.
- Adjustable lower control arm rear mount.
- Installation guide
Other components, packaging and clearance.
- This kit assumes coilovers to have enough clearance.
- We recommend tire diameter not bigger than 620mm (235/40 R17).
- Wider fenders or fender flares needed with this kit.

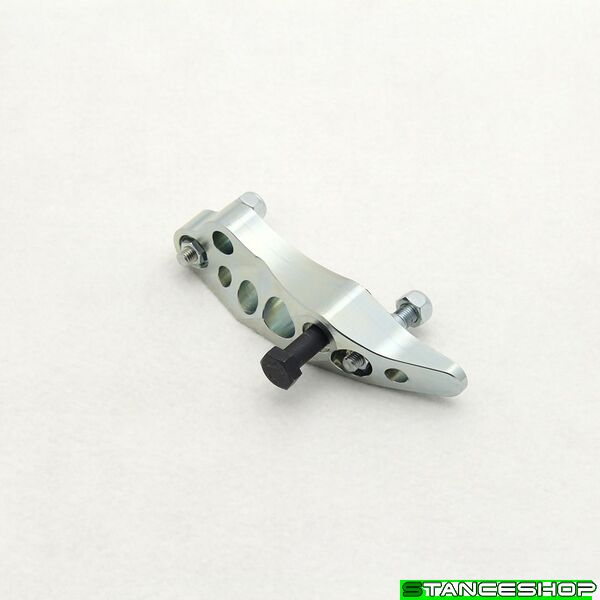

Left Knuckle Add-on
1
Knuckle Add-on
2
Conical Bolt D18 L63
WF046_901
10.00€
3
Conical Bolt D16.4 L63
WF030_901
11.00€
4
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
5
Nut Hex Flange M10x1.5 RH 8.8 ZN
B02510150R2ZD69238
2.80€
6
Bolt Hex M14x1.5x 70 RH 10.9 ST DIN 960
B01114150070R3SD960
6.30€
Right Knuckle Add-on
1
Knuckle Add-on
2
Conical Bolt D18 L63
WF046_901
10.00€
3
Conical Bolt D16.4 L63
WF030_901
11.00€
4
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
5
Nut Hex Flange M10x1.5 RH 8.8 ZN
B02510150R2ZD69238
2.80€
6
Bolt Hex M14x1.5x 70 RH 10.9 ST DIN 960
B01114150070R3SD960
6.30€

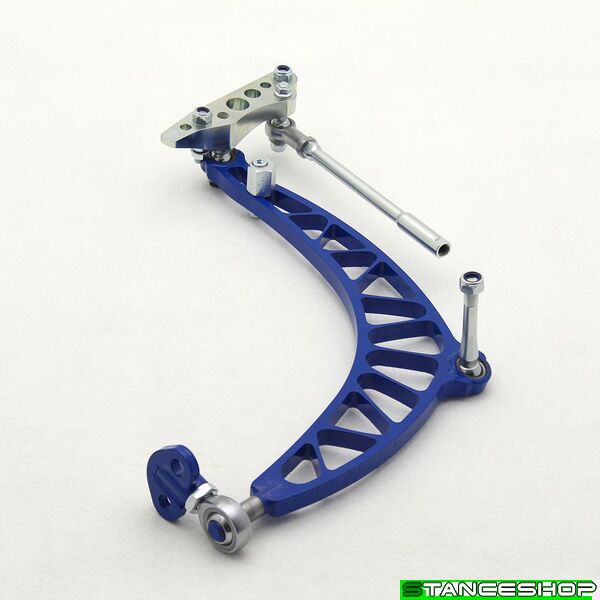

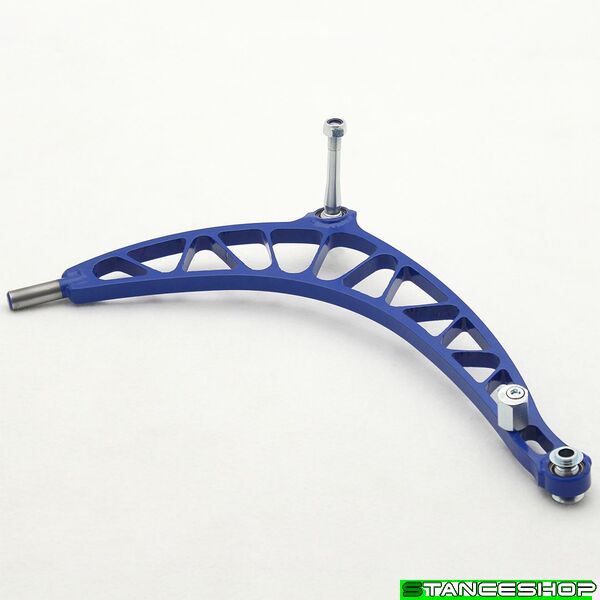

Left Lower Control Arm
1
Lower Control Arm
2
Bolt Allen M12x1.50x 12.5 RH 12.9 ZN
WF036_911
20.00€
3
BushingT ID 8 OD22 h51 Excentric Lock Stopper
WF036_913
19.00€
4
Bolt Allen M10x1.5x 55 RH 8.8 ZN DIN 912
B01210150055R2ZD912
1.50€
5
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
6
Spacer ID14 OD16 h10 SPC
WF036_908
8.40€
7
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
8
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
9
Spacer ID14 OD16 h10
WF036_903
8.40€
10
Nut Nylock M14x1.5 RH 8.8 ZN DIN985-8
B02214150R2ZD9858
1.50€
11
Control Arm Inner Joint Shaft V2
WF036_920
21.00€
Right Lower Control Arm
1
Lower Control Arm
2
Bolt Allen M12x1.50x 12.5 RH 12.9 ZN
WF036_911
20.00€
3
BushingT ID 8 OD22 h51 Excentric Lock Stopper
WF036_913
19.00€
4
Bolt Allen M10x1.5x 55 RH 8.8 ZN DIN 912
B01210150055R2ZD912
1.50€
5
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
6
Spacer ID14 OD16 h10 SPC
WF036_908
8.40€
7
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
8
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
9
Spacer ID14 OD16 h10
WF036_903
8.40€
10
Nut Nylock M14x1.5 RH 8.8 ZN DIN985-8
B02214150R2ZD9858
1.50€
11
Control Arm Inner Joint Shaft V2
WF036_920
21.00€

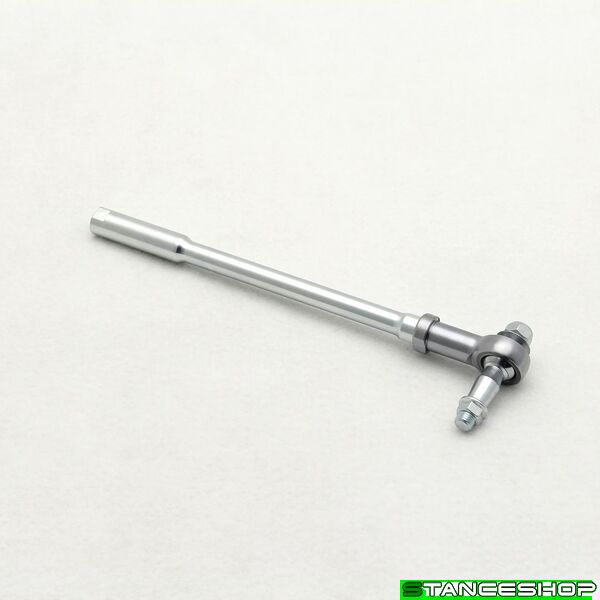

Tierod Assembly
1
Tierod Assembly
WF036_600A
85.00€
2
Tie Rod Extension
WF036_904
31.00€
3
Rod end 14x1.5 RH female CrMo
SRODEND14X1.5 RH F
26.00€
4
Nut Collar M12x1.50 RH ZN SPC
WF001_12X15
8.40€
5
Conical Bolt D16.4 L66
WF036_909
15.00€
6
Spacer ID10 OD14 h 5.4
WF080_921
7.30€
7
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€

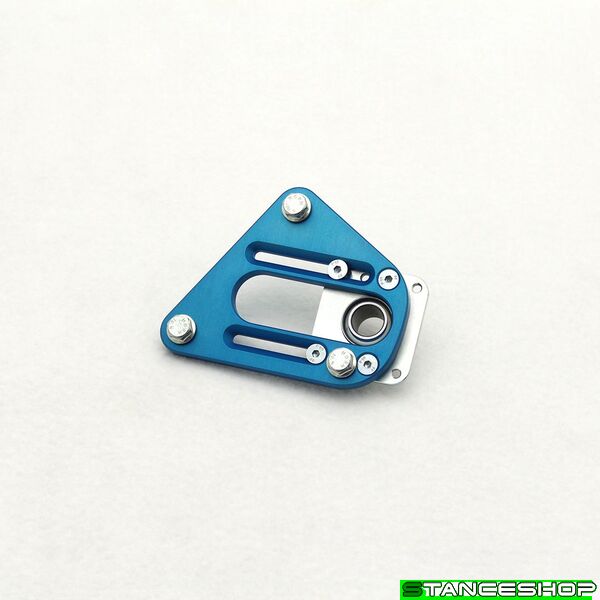

Left Top Mount
1
Top Mount
2
Camber Plate Spherical Housing REG
WF013_917A
50.00€
3
Bolt HexFlange M 8x1.25x 10 RH 10.9 ZN DIN6921
B01608125010R2ZD6921
2.80€
4
Bolt AllenFlat M 6x1.0x 16 RH 8.8 ZN DIN7991
B01306100016R2SD7991
1.50€
Right Top Mount
1
Top Mount
2
Camber Plate Spherical Housing REG
WF013_917A
50.00€
3
Bolt HexFlange M 8x1.25x 10 RH 10.9 ZN DIN6921
B01608125010R2ZD6921
2.80€
4
Bolt AllenFlat M 6x1.0x 16 RH 8.8 ZN DIN7991
B01306100016R2SD7991
1.50€

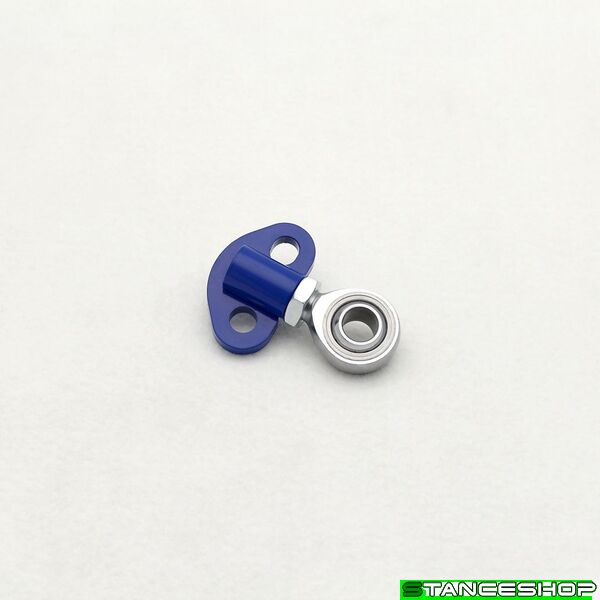

Right Control Arm Mount
1
Control Arm Mount
2
Rod end 20x1.5 RH male CrMo
SRODEND 20X1.5 RH M
31.00€
3
Nut Thin M20x1.5 RH 8.8 ZN DIN936/439
B02320150R2ZD936/439
2.80€
Left Control Arm Mount
1
Control Arm Mount
2
Rod end 20x1.5 RH male CrMo
SRODEND 20X1.5 RH M
31.00€
3
Nut Thin M20x1.5 RH 8.8 ZN DIN936/439
B02320150R2ZD936/439
2.80€
