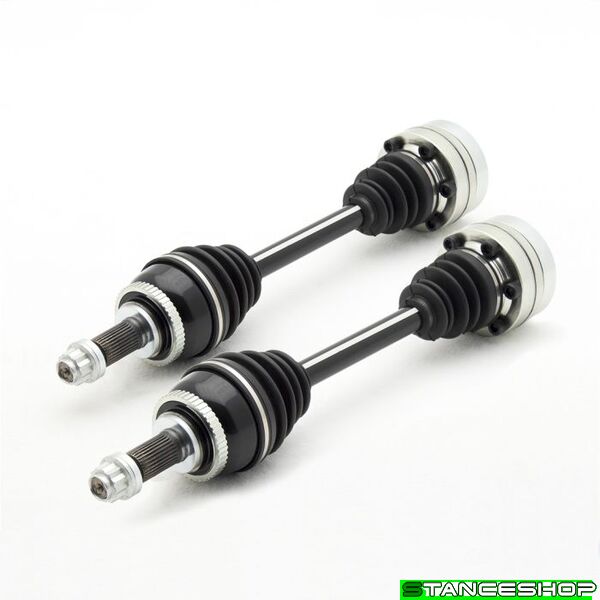

BMW E46 Rear Halfshaft Kit

We, at Wisefab, always strive to engineer the best products that allow drivers to push their limits on the track. Behind our unique designs are countless hours of research, problem-solving, and meticulous development. Wisefab Dynamic Halfshaft Axles can hold 1500hp and offer outstanding reliability. We designed the axle shaft strength to be just a little below the strength of differential output shafts. Our axles use CV joints with low wear and high strength. As expensive drivetrain components become common place in most rally, drift, and race cars, it is important to create a system between them that helps with their longevity. The key is superior shaft material that not only has high-yield strength, but can also survive deformations or twists. In the case when some part in a drivetrain has to give, Wisefab shafts will take the abuse. Our shafts will flex to absorb the excess of critical torque. In these situations, Wisefab shafts can twist to at least 90 degrees, often times reaching 180 degrees or even 360 degrees without failure, allowing you to finish your race in one piece. Keep in mind that any twisting won’t happen until the torque limit has been reached. If your shafts do twist more than 90 degrees, it is recommended to replace the shaft.

  • Max hp rating 1500 hp
  • 30 spline outer, 6x94 inner flange
  • Length from wheel bearing surface to inner flange Left: min 524mm, max 570mm, Right: min 559mm, max 605mm
  • Max CV operating angle: outer 50 deg / inner 25 deg
  • Max allowed permanent shaft flex before replacement: 90 degrees

Complete parts

1

Halfshaft Assembly 29X555
WF369_100
840.00€
2

Halfshaft Assembly 29X580
WF369_200
840.00€


Halfshaft Assembly 29X555

1

Halfshaft Assembly 29X555
WF369_100
840.00€
2

Halfshaft
WF369_901
260.00€
3

Metal Tightening Strap 180
B071180T
0.00€
4

CV Joint Bellow 30X98X122
5

C-Clip Internal Snap Ring STD d30 ST DIN7993B
B04330SD7993B
1.50€
6

Metal Tightening Strap 410
B071410T
0.00€
7

CV Joint Outer
WF369_905
0.00€
8

ABS Sensor Spacer
WF369_107
8.40€
9

ABS Ring
WF369_908
47.00€
10

Spacer bushing
WF369_906
0.00€
11

BushingT ID24.5 OD44 h 8
WF369_904
5.20€
13

Bolt Allen M12x1.5x 50 RH 12.9 ST DIN 912
17

C-Clip ExternalSTD d30 ST DIN471
B04230SD471
1.50€
18

Bolt ETorx M10x1.50x 15 RH 12.9 ZN SPC
WF369_903
10.00€
20

Drive Flange Adapter 94/104
WF369_902
70.00€
21

CV Joint Grease 80g

Halfshaft Assembly 29X580

1

Halfshaft Assembly 29X580
WF369_200
840.00€
2

Halfshaft
WF369_911
260.00€
3

Metal Tightening Strap 180
B071180T
0.00€
4

CV Joint Bellow 30X98X122
5

C-Clip Internal Snap Ring STD d30 ST DIN7993B
B04330SD7993B
1.50€
6

Metal Tightening Strap 410
B071410T
0.00€
7

CV Joint Outer
WF369_905
0.00€
8

ABS Sensor Spacer
WF369_107
8.40€
9

ABS Ring
WF369_908
47.00€
10

Spacer bushing
WF369_906
0.00€
11

BushingT ID24.5 OD44 h 8
WF369_904
5.20€
13

Bolt Allen M12x1.5x 50 RH 12.9 ST DIN 912
17

C-Clip ExternalSTD d30 ST DIN471
B04230SD471
1.50€
18

Bolt ETorx M10x1.50x 15 RH 12.9 ZN SPC
WF369_903
10.00€
20

Drive Flange Adapter 94/104
WF369_902
70.00€
21

CV Joint Grease 80g
1 570 € купить в 1 клик
