BMW E90 E92 E81 E82 Rear Suspension Drop Knuckle Kit
- M model also available.
Link lengths are different between nonM and M. Shock absorbers and brakes can be used either from M and nonM as components have attachments for both. - Revised kinematics, not just dropped knuckle.
If the focus is more towards performance, then the car can act better with lowered ride height, but then the factory designed kinematics wouldn't work as it supposed to. The kit would give a good kinematics with lowered car - higher roll center, , revised cambergain, anti-squat and bumpsteer for maximum grip. - Easy camber adjustment.
As the top links are straight tubular type, then camber can be adjusted simply by changing their length. - Bump steer adjustment.
Possibility to adjust bump steer by changing rod end location in a slot. - Anti-squat adjustment possibility.
Possibility to adjust anti-squat by changing the top forward link height on upright. It can be done in less than 10 minutes at the trackside. Lowering link would increase anti-squat, raising it would decrease anti-squat. - Original wheelspeed sensor (ABS sensor) can be used.
- Only takes either M model or 336mm or bigger brake discs.
Smaller brakes will not fit. - Wheel bearing size should be 45x85x41

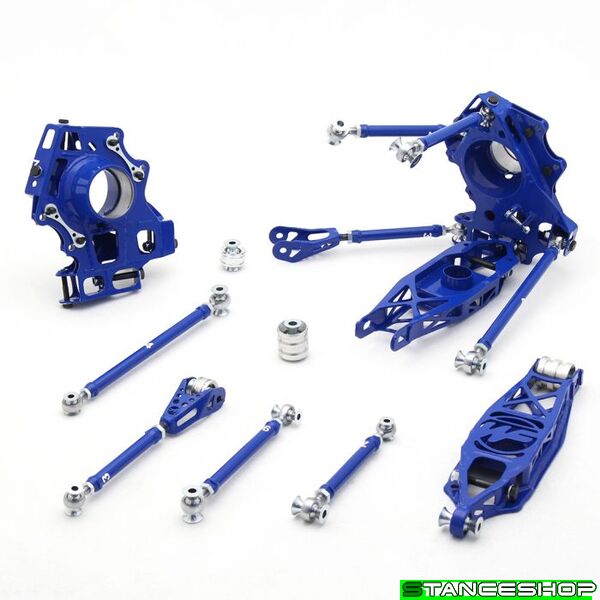

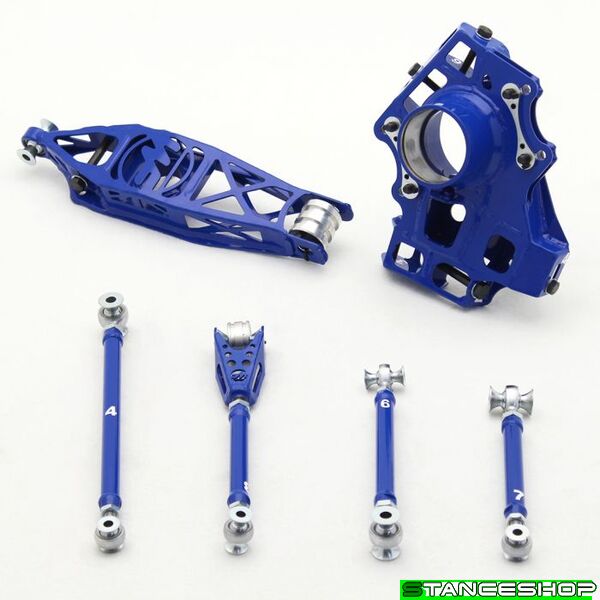

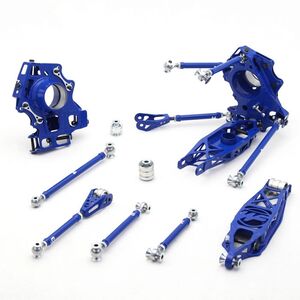

Kit includes:
- Pre-set suspension links.
- Uprights with hardware.
- Subframe bushings with sperical bearings.
Other components
- Hub to hub length (track) is the same as original, as this is defined by halfshaft lengths.
- This kit assumes lower (shorter) springs or coilovers to lower the car.
- Possibility to use bigger CV joint ø110mm (Driveshaftshop 1200 hp)
Minimum rim size is 17"
Complete parts
2
Suspension Arm #2
WF901_200A
280.00€
3
Suspension Arm #3
WF901_300A
145.00€
4
Suspension Arm #4
WF901_400A
145.00€
5
Suspension Arm #6
WF901_600A
0.00€
6
Suspension Arm #7
WF901_700A
0.00€

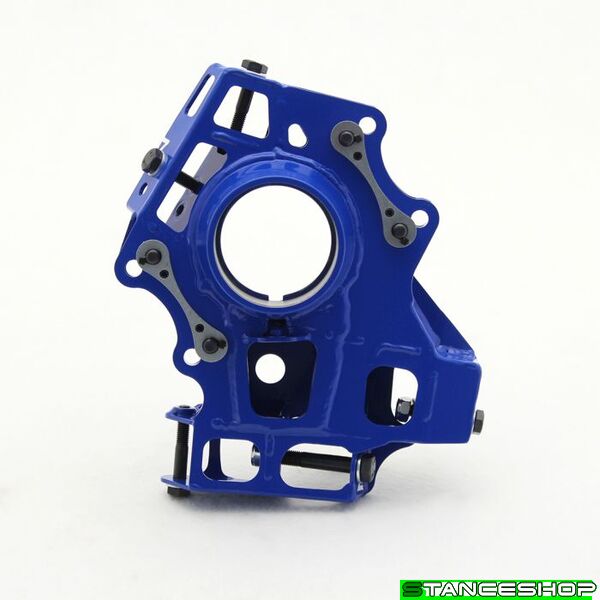

Left Knuckle
1
Knuckle
2
Bolt Hex M10x1.5x 35 RH 10.9 ST DIN 933
B01110150035R3SD933
2.80€
3
Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960
B01112150080R3SD960
6.30€
4
Washer Flat M12 ZN DIN125
B03112NAZD125
1.50€
5
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
6
Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931
B01110150060R3SD931
2.80€
7
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
8
Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
9
Bolt Hex M10x1.5x 55 RH 10.9 ST DIN 931
B01110150055R3SD931
2.80€
11
Bolt Hex M10x1.5x 45 RH 10.9 ST DIN 931
B01110150045R3SD931
2.80€
13
Brake Adapter
WF901_121
10.00€
14
Pin Spring 6x10 Normal ST DIN1481
B05206010NSD1481
1.50€
15
Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8
B02208125R2ZD9858
1.50€
16
Washer Flat M 8 ZN DIN125
B03108NAZD125
1.50€
17
Bolt Hex M 8x1.25x 45 RH 8.8 ZN DIN 931
B01108125045R2ZD931
1.50€
Right Knuckle
1
Knuckle
2
Bolt Hex M10x1.5x 35 RH 10.9 ST DIN 933
B01110150035R3SD933
2.80€
3
Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960
B01112150080R3SD960
6.30€
4
Washer Flat M12 ZN DIN125
B03112NAZD125
1.50€
5
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
6
Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931
B01110150060R3SD931
2.80€
7
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
8
Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
9
Bolt Hex M10x1.5x 55 RH 10.9 ST DIN 931
B01110150055R3SD931
2.80€
11
Bolt Hex M10x1.5x 45 RH 10.9 ST DIN 931
B01110150045R3SD931
2.80€
13
Brake Adapter
WF901_121
10.00€
14
Pin Spring 6x10 Normal ST DIN1481
B05206010NSD1481
1.50€
15
Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8
B02208125R2ZD9858
1.50€
16
Washer Flat M 8 ZN DIN125
B03108NAZD125
1.50€
17
Bolt Hex M 8x1.25x 45 RH 8.8 ZN DIN 931
B01108125045R2ZD931
1.50€

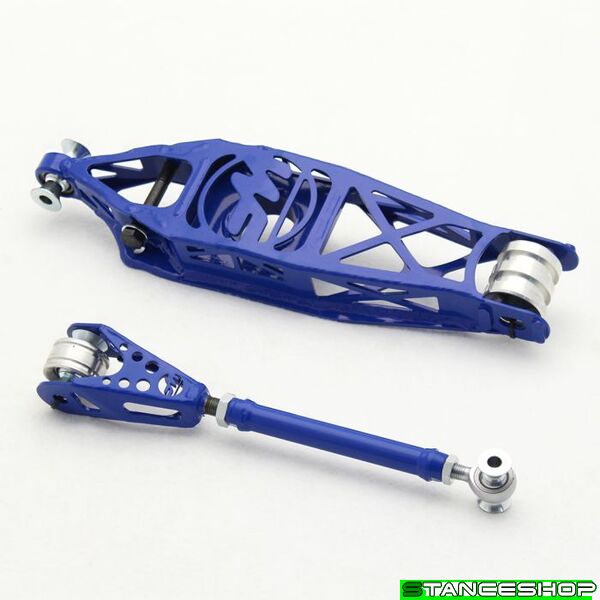

Suspension Arm #2
1
Suspension Arm #2
WF901_200A
280.00€
2
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
3
Suspension Arm #2 Bushing
WF901_280A
70.00€
4
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
5
Spacer ID12 OD16 h18
WF136_903
8.40€
6
Bolt Allen M10x1.5x 25 RH 12.9 ST DIN 912
B01210150025R4SD912
1.50€
7
Bolt Hex M12x1.5x 90 RH 10.9 ST DIN 960
B01112150090R3SD960
6.30€
8
Washer Flat M12 ZN DIN125
B03112NAZD125
1.50€
9
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
Suspension Arm #3
1
Suspension Arm #3
WF901_300A
145.00€
2
Suspension Arm #3 Bushing
WF901_380A
70.00€
3
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
4
Nut Thin M12x1.5 RH 8.8 ZN DIN936/439
B02312150R2ZD936/439
2.80€
5
Rod end 12x1.5 RH male CrMo
SRODEND12X1.5 RH M
21.00€
6
Spacer ID10 OD12 h14
WF080_906
8.40€
Suspension Arm #4
1
Suspension Arm #4
WF901_400A
145.00€
2
Spacer ID12 OD14 h14
WF113_905
8.40€
3
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
21.00€
4
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
5
Nut Thin M12x1.5 RH 8.8 ZN DIN936/439
B02312150R2ZD936/439
2.80€
6
Rod end 12x1.5 RH male CrMo
SRODEND12X1.5 RH M
21.00€
7
Spacer ID10 OD12 h 7
WF862_902
7.30€
Suspension Arm #6
1
Suspension Arm #6
WF901_600A
0.00€
2
Spacer ID12 OD14 h14
WF113_905
8.40€
3
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
21.00€
4
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
5
Nut Thin M12x1.5 RH 8.8 ZN DIN936/439
B02312150R2ZD936/439
2.80€
6
Rod end 12x1.5 RH male CrMo
SRODEND12X1.5 RH M
21.00€
7
Spacer ID10 OD12 h 7
WF862_902
7.30€
Suspension Arm #7
1
Suspension Arm #7
WF901_700A
0.00€
2
Spacer ID12 OD14 h14
WF113_905
8.40€
3
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
21.00€
4
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
5
Nut Thin M12x1.5 RH 8.8 ZN DIN936/439
B02312150R2ZD936/439
2.80€
6
Rod end 12x1.5 RH male CrMo
SRODEND12X1.5 RH M
21.00€
7
Spacer ID10 OD12 h 7
WF862_902
7.30€
