BMW E90 E92 E90 M3 E92 M3 E81 E82 E82 M Front Drift Angle Lock Kit
- 65 degrees of lock, parallel steering.
You could tune your steering geometry either towards positive or negative Ackermann in just a few minutes even at trackside without messing up an alignment.
Ackermann adjustment kit included. - Adjustable lock stopper.

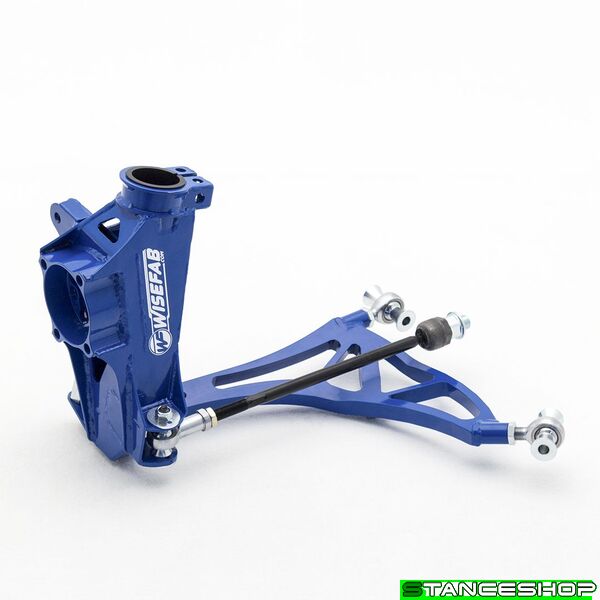

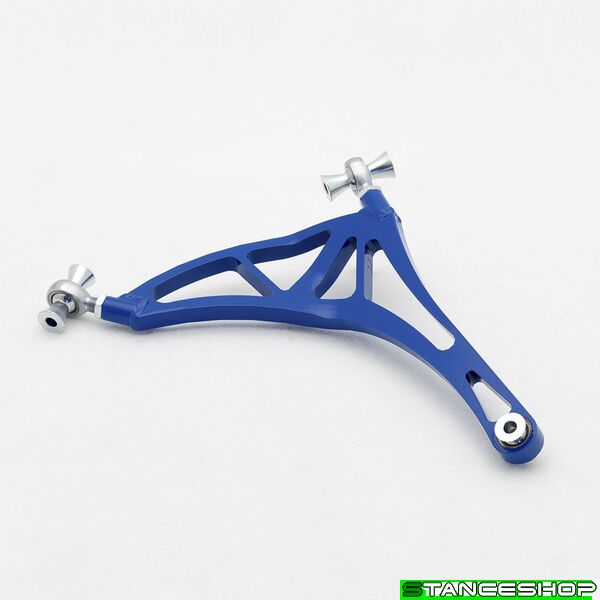

- One piece lower control arm desing.
Lower links are replaced with one arm. Drifting with higher steering angle the stiffness and packaging would become an issue. Therefore lower one piece arm is used. - Higher roll center (RC).

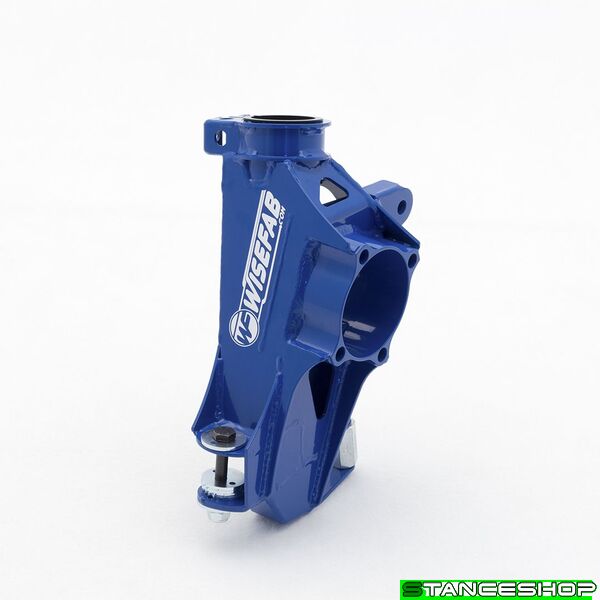

On Wisefab knuckle, joints are dropped, which brings the front RC up on lowered car, providing higher roll stiffness and letting to remove the front anti roll bar (sway bar) that is quite difficult to package with that high lock angles. - Very good camber control and minimal bump steer with high steering angles.
On drift cars the dynamic camber and bump steer is much more important than static. With our kinematics we have assured that the camber would provide very good front grip and bump steer is minimal at all the range of steering. - Steering jacking control.
During drifting, when steering angle is much bigger, jacking is also bigger, even with the same geometry and it could become a problem. We have changed the geometry that it doesn’t cause any handling issues. - Consistent and predictable self-alignment torque.
Caster is not the only important parameter to provide sufficient self-alignment torque especially at high lock. It’s the combination of different parameters to maintain consistent trail and self-alignment torque. With our setup the steering wheel turns always to the direction of movement and doesn’t get stuck at full lock. - Original wheelspeed sensor (ABS sensor) can be used.

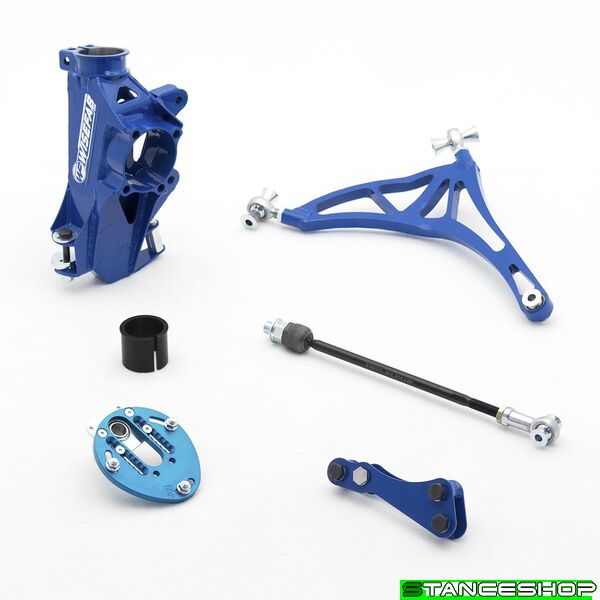

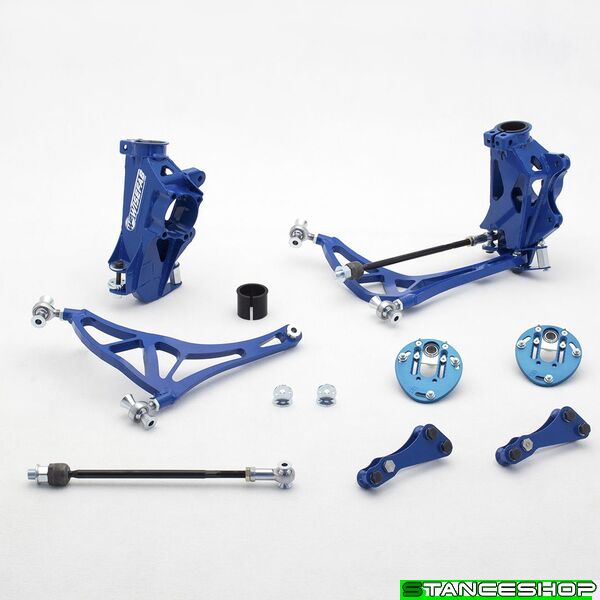

Kit includes:

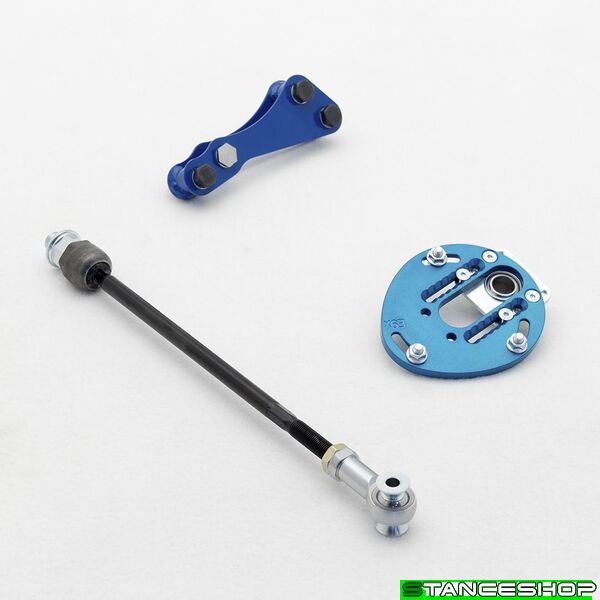

- Adjustable coilover upper mounts, Formula Drift compliance.
- Knuckles with hardware.
- Lower control arms.
- Assembeled tie rods.
- Brake adapters for M model brakes.
- 45mm coilover adapter sleeve.
- Installation guide.
Other components, packaging and clearance.
- This kit assumes coilovers, to have enough clearance.
- Ride height is designed to be ~80mm from front subframe to ground.
- Dependent on rim width and ET, wider fenders or fender flares would be needed.
- Inner wheel wells do not need to be modified with tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 etc).
- Minimum rim diameter is 17”.
- Recommended backspacing is ~135mm (7“ ET45; 8“ ET35; 9“ ET20).
- If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used.
- The kit is designed and manufactured the way that after installation and toe adjustment it’s ready to use right away.
Complete parts
3
Tie Rod Assembly
WF900_600A
70.00€
4
M3 Brake Adapter
WF900_400A
65.00€
5
Top Mount
WF900_500A
105.00€
Left Knuckle
1
Knuckle
2
Strut Adapter
WF900_906
20.00€
3
Bolt Hex M10x1.5x 70 RH 10.9 ST DIN 931
B01110150070R3SD931
2.80€
4
Ackermann Washer Round 0 offset
WF013_140
7.30€
5
Ackermann Washer Round 3 Offset
WF080_142
7.30€
6
Ackermann Washer Round 6 Offset
WF080_144
7.30€
7
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
8
Bolt Hex M12x1.5x 60 RH 10.9 ST DIN 960
B01112150060R3SD960
4.20€
9
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
10
Bolt AllenButton M 8x1.25x 60 RH 8.8 ZN ISO7380
B01408125060R2ZI7380
2.80€
11
BushingT ID 8 OD22 h41 Excentric Lock Stopper
WF350_950
11.00€
12
Washer Flat M 8 ZN DIN125
B03108NAZD125
1.50€
13
Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8
B02208125R2ZD9858
1.50€
Right Knuckle
1
Knuckle
2
Strut Adapter
WF900_906
20.00€
3
Bolt Hex M10x1.5x 70 RH 10.9 ST DIN 931
B01110150070R3SD931
2.80€
4
Ackermann Washer Round 0 offset
WF013_140
7.30€
5
Ackermann Washer Round 3 Offset
WF080_142
7.30€
6
Ackermann Washer Round 6 Offset
WF080_144
7.30€
7
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
8
Bolt Hex M12x1.5x 60 RH 10.9 ST DIN 960
B01112150060R3SD960
4.20€
9
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
10
Bolt AllenButton M 8x1.25x 60 RH 8.8 ZN ISO7380
B01408125060R2ZI7380
2.80€
11
BushingT ID 8 OD22 h41 Excentric Lock Stopper
WF350_950
11.00€
12
Washer Flat M 8 ZN DIN125
B03108NAZD125
1.50€
13
Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8
B02208125R2ZD9858
1.50€
Left Lower Control Arm
1
Lower Control Arm
2
Spacer ID12 OD16 h24.5
WF900_902
8.40€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
5
Washer FlatLarge M12 ZN SFS3738
B03512ZSFS3738
1.50€
6
Spacer ID12 OD16 h10
WF013_903
8.40€
7
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
8
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
Right Lower Control Arm
1
Lower Control Arm
2
Spacer ID12 OD16 h24.5
WF900_902
8.40€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
5
Washer FlatLarge M12 ZN SFS3738
B03512ZSFS3738
1.50€
6
Spacer ID12 OD16 h10
WF013_903
8.40€
7
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
8
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
Tie Rod Assembly
1
Tie Rod Assembly
WF900_600A
70.00€
2
Tie Rod Inner M14x1.5 M14x1.5 L360
STIEROD_M14_M14_L360
21.00€
3
Rack Extender M14x1.5 M18x1.5 L24
WF900_901
15.00€
4
Rod end 14x1.5 RH female CrMo
SRODEND14X1.5 RH F
26.00€
5
Spacer ID10 OD14 h11
WF013_901
7.30€
M3 Brake Adapter
1
M3 Brake Adapter
WF900_400A
65.00€
2
Bolt HexThin M12x1.50x 50 RH 10.9 ST SPC
WF900_908
10.00€
3
Bolt Hex M12x1.5x 50 RH 10.9 ST DIN 961
B01112150050R3SD961
4.20€
4
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
5
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
Top Mount
1
Top Mount
WF900_500A
105.00€
2
Camber Plate Spherical Housing REG
WF013_917A
50.00€
3
Nut Hex Flange M 8x1.25 RH 8.8 ZN
B02508125R2ZD69238
1.50€
4
Bolt AllenFlat M 6x1.0x 16 RH 8.8 ZN DIN7991
B01306100016R2SD7991
1.50€
5
Bolt Hex M 8x1.25x 16 RH 8.8 ZN DIN 933
B01108125016R2ZD933
1.50€
