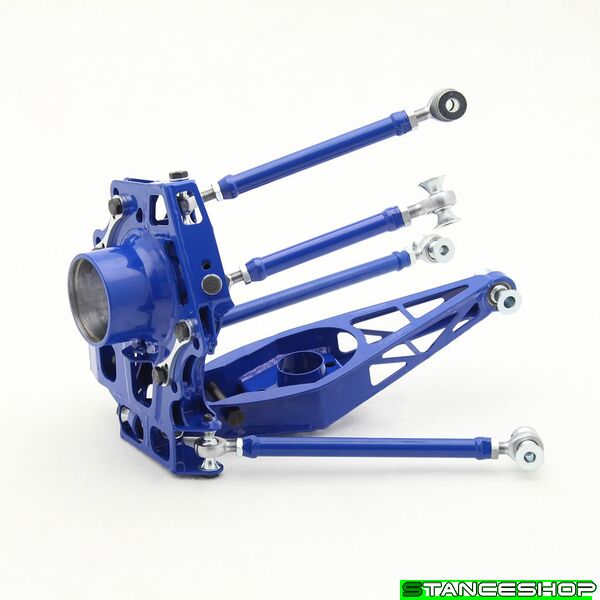

BMW F20 F21 F22 F30 F32 F33 F36 Rear Suspension Drop Knuckle Kit

• Revised kinematics, not just dropped knuckle.
  If the focus is more towards performance, then the car can act better with lowered ride height, but then the factory designed kinematics wouldn't work as it supposed to. The kit would give a good kinematics with lowered car - higher roll center, , revised cambergain, anti-squat and bumpsteer for maximum grip.
• Easy camber adjustment.
  As the top links are straight tubular type, then camber can be adjusted simply by changing their length.
• Bump steer adjustment.
  Possibility to adjust bump steer by changing rod end location in a slot.
• Anti-squat adjustment possibility.
  Possibility to adjust anti-squat by changing the top forward link height on upright. It can be done in less than 10 minutes at the trackside. Lowering link would increase anti-squat, raising it would decrease anti-squat.
• Original wheelspeed sensor (ABS sensor) can be used.
• Only takes either M model or 336mm or bigger brake discs.
  Smaller brakes will not fit.
• Wheel bearing size should be 45x85x41

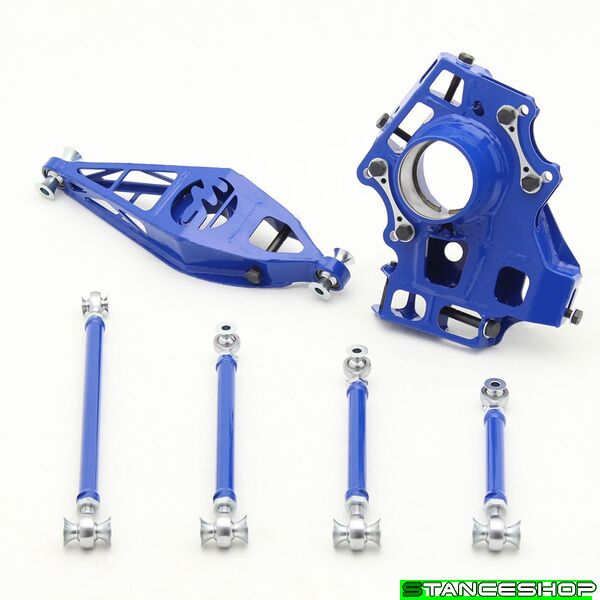

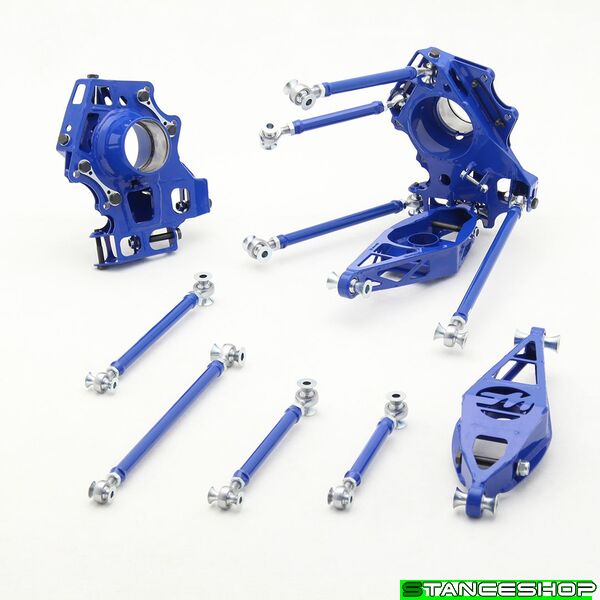

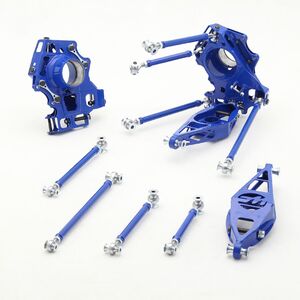

Kit includes:

• Pre-set suspension links.
• Uprights with hardware.
• Subframe bushings with sperical bearings.

Other components

• Hub to hub length (track) is the same as E90. E90 halfshafts need to be used
• This kit assumes lower (shorter) springs or coilovers to lower the car.
• Possibility to use bigger CV joint ø110mm (Driveshaftshop 1200 hp)

Minimum rim size is 17"

Complete parts

1 Knuckle

Left

WF901_100LA

0.00€

Right

WF901_100RA

310.00€

2 Suspension Arm #2

WF221_200A

260.00€

3 Suspension Arm #3

WF221_300A

210.00€

4 Suspension Arm #4

WF221_400A

145.00€

5 Suspension Arm #6

WF221_600A

145.00€

6 Suspension Arm #7

WF221_700A

145.00€

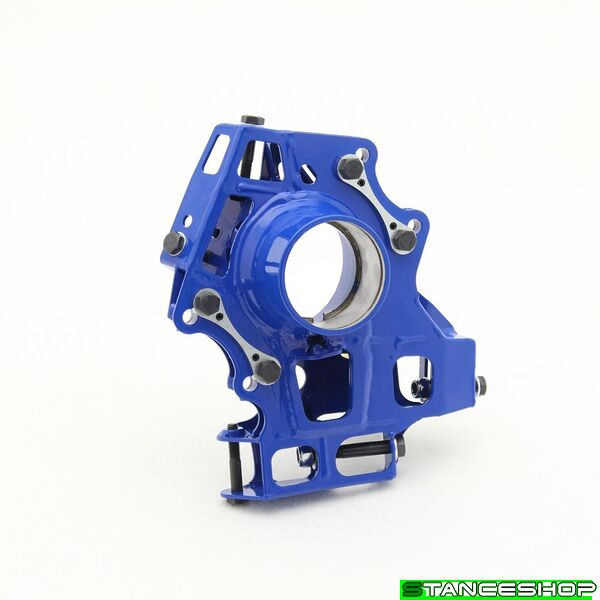

Left Knuckle

1 Knuckle

Left

WF901_100LA

0.00€

2 Bolt Hex M10x1.5x 35 RH 10.9 ST DIN 933

B01110150035R3SD933

2.80€

3 Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960

B01112150080R3SD960

6.30€

4 Washer Flat M12 ZN DIN125

B03112NAZD125

1.50€

5 Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8

B02212150R2ZD9858

1.50€

6 Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931

B01110150060R3SD931

2.80€

7 Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8

B02210150R2ZD9858

1.50€

8 Washer Flat M10 ZN DIN125

B03110NAZD125

1.50€

9 Bolt Hex M10x1.5x 55 RH 10.9 ST DIN 931

B01110150055R3SD931

2.80€

11 Bolt Hex M10x1.5x 45 RH 10.9 ST DIN 931

B01110150045R3SD931

2.80€

13 Brake Adapter

WF901_121

10.00€

14 Pin Spring 6x10 Normal ST DIN1481

B05206010NSD1481

1.50€

15 Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8

B02208125R2ZD9858

1.50€

16 Washer Flat M 8 ZN DIN125

B03108NAZD125

1.50€

17 Bolt Hex M 8x1.25x 45 RH 8.8 ZN DIN 931

B01108125045R2ZD931

1.50€

Right Knuckle

1 Knuckle

Right

WF901_100RA

310.00€

2 Bolt Hex M10x1.5x 35 RH 10.9 ST DIN 933

B01110150035R3SD933

2.80€

3 Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960

B01112150080R3SD960

6.30€

4 Washer Flat M12 ZN DIN125

B03112NAZD125

1.50€

5 Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8

B02212150R2ZD9858

1.50€

6 Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931

B01110150060R3SD931

2.80€

7 Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8

B02210150R2ZD9858

1.50€

8 Washer Flat M10 ZN DIN125

B03110NAZD125

1.50€

9 Bolt Hex M10x1.5x 55 RH 10.9 ST DIN 931

B01110150055R3SD931

2.80€

11 Bolt Hex M10x1.5x 45 RH 10.9 ST DIN 931

B01110150045R3SD931

2.80€

13 Brake Adapter

WF901_121

10.00€

14 Pin Spring 6x10 Normal ST DIN1481

B05206010NSD1481

1.50€

15 Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8

B02208125R2ZD9858

1.50€

16 Washer Flat M 8 ZN DIN125

B03108NAZD125

1.50€

17 Bolt Hex M 8x1.25x 45 RH 8.8 ZN DIN 931

B01108125045R2ZD931

1.50€

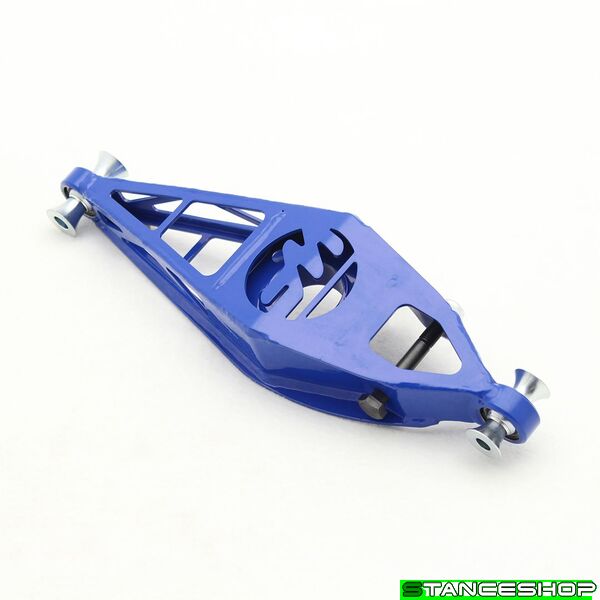

Suspension Arm #2

1



Suspension Arm #2

WF221_200A

260.00€

2



Spacer ID12 OD16 h22

WFA91_901

8.40€

3



C-Clip InternalSTD d32 ST DIN472

B04132SD472

1.50€

4



Spherical ID16/OD32

SSPHERICAL 16/32

25.00€

5



Bolt Hex M12x1.5x 90 RH 10.9 ST DIN 960

B01112150090R3SD960

6.30€

6



Washer Flat M12 ZN DIN125

B03112NAZD125

1.50€

7



Spacer ID12 OD16 h18

WF136_903

8.40€

8



Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8

B02212150R2ZD9858

1.50€

Suspension Arm #3

1



Suspension Arm #3

WF221_300A

210.00€

2



Spacer ID12 OD14 h14

WF113_905

8.40€

3



Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

4



Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

5



Nut Thin M12x1.5 RH 8.8 ZN DIN936/439

B02312150R2ZD936/439

2.80€

6



Rod end 12x1.5 RH male CrMo

SRODEND12X1.5 RH M

21.00€

7



Spacer ID10 OD12 h 7

WF862_902

7.30€

Suspension Arm #4

1



Suspension Arm #4

WF221_400A

145.00€

2



Spacer ID12 OD14 h14

WF113_905

8.40€

3



Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

4



Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

5



Nut Thin M12x1.5 RH 8.8 ZN DIN936/439

B02312150R2ZD936/439

2.80€

6



Rod end 12x1.5 RH male CrMo

SRODEND12X1.5 RH M

21.00€

7



Spacer ID10 OD12 h 7

WF862_902

7.30€

Suspension Arm #6

1



Suspension Arm #6

WF221_600A

145.00€

2



Spacer ID12 OD14 h14

WF113_905

8.40€

3



Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

4



Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

5



Nut Thin M12x1.5 RH 8.8 ZN DIN936/439

B02312150R2ZD936/439

2.80€

6



Rod end 12x1.5 RH male CrMo

SRODEND12X1.5 RH M

21.00€

7



Spacer ID10 OD12 h 7

WF862_902

7.30€

Suspension Arm #7

1



Suspension Arm #7

WF221_700A

145.00€

2



Spacer ID12 OD14 h14

WF113_905

8.40€

3



Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

4



Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

5



Nut Thin M12x1.5 RH 8.8 ZN DIN936/439

B02312150R2ZD936/439

2.80€

6



Rod end 12x1.5 RH male CrMo

SRODEND12X1.5 RH M

21.00€

7



Spacer ID10 OD12 h 7

WF862_902

7.30€
