Главная ДрифтWisefabWisefab → Honda S2000 Front Suspension Drop Knuckle Kit
Honda S2000 Front Suspension Drop Knuckle Kit Honda S2000 Front Suspension Drop Knuckle Kit Honda S2000 Front Suspension Drop Knuckle Kit Honda S2000 Front Suspension Drop Knuckle Kit Honda S2000 Front Suspension Drop Knuckle Kit Honda S2000 Front Suspension Drop Knuckle Kit Honda S2000 Front Suspension Drop Knuckle Kit

Honda S2000 Front Suspension Drop Knuckle Kit

  • Weight saving over original components
    But still maintaining required strength and stiffness
  • Over 40mm lower A-arm joint drop compare to original knuckle
  • 7075-T6 aluminium billet CNC knuckles and CrMo arms
    With optimized double shear deasing that provides low weight and high strenght
  • CrMo rod ends and sphericals used instead of OEM style bushings.

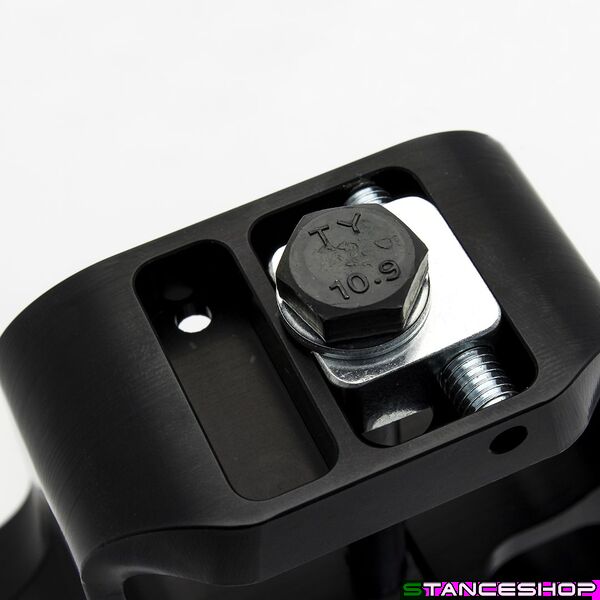

  • Easy camber adjustment on the knuckle
    Camber can be adjusted easily on trackside in just a few minutes
  • Bump steer adjustment
    Bump steer is adjustable by tie rod height on the knuckle
  • Quicker steering ratio
    Steering ratio is slightly quicker compared to OEM

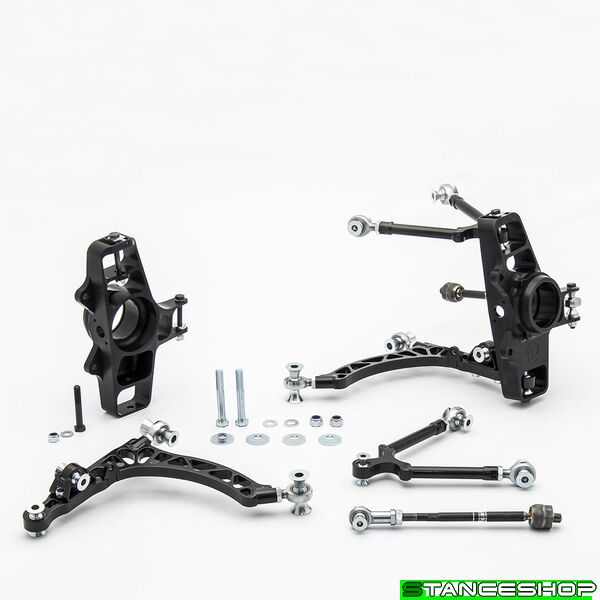

Kit includes:

  • Upper and lower control arms
  • Knuckles with hardware
  • Lower control arms
  • Assembeled tie rods
  • Hardware for caster control
  • Installation guide

Other information:

  • This kit assumes coilovers
  • Minimum rim size is 17“
  • Track width is close to original. Similar size and offset rims can be used as with original suspension
  • Original wheel speed sensor can be used

Complete parts

1

Knuckle
Left
WFS22_100LA
760.00€
Right
WFS22_100RA
760.00€
2

Lower Control Arm
Left
WFS22_200LA
520.00€
Right
WFS22_200RA
520.00€
3

Upper Control Arm
WFS22_300A
310.00€
4

Tie Rod Assembly
WFS22_600A
70.00€
5

Adjustment Sticker
A_KL_S2000
6.00€

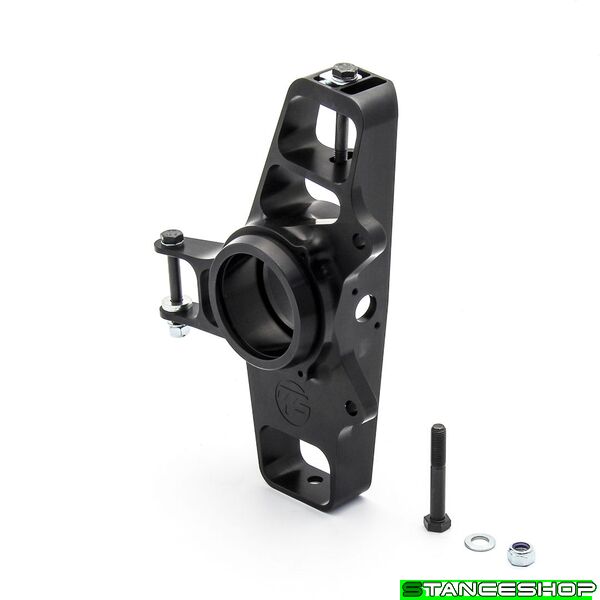

Left Knuckle

1

Knuckle
Left
WFS22_100LA
760.00€
2

Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960
3

Washer Flat M12 ZN DIN125
B03112NAZD125
1.50€
4

Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
5

Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
6

Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
7

Camber Adjustment Plate
WF700_911
13.00€
8

Bolt SetScrew M 8x1.25x 39.6 RH 10.9 ZN SPC
WFS22_905
8.40€
9

Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
10

Bolt Hex M10x1.5x 90 RH 10.9 ST DIN 931
11

Bolt Hex M10x1.5x 80 RH 10.9 ST DIN 931
12

Washer ID10 OD24.5 h 1
WF861_111
6.30€
13

Washer ID10 OD24.5 h 2
WF861_112
6.30€

Right Knuckle

1

Knuckle
Right
WFS22_100RA
760.00€
2

Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960
3

Washer Flat M12 ZN DIN125
B03112NAZD125
1.50€
4

Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
5

Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
6

Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
7

Camber Adjustment Plate
WF700_911
13.00€
8

Bolt SetScrew M 8x1.25x 39.6 RH 10.9 ZN SPC
WFS22_905
8.40€
9

Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
10

Bolt Hex M10x1.5x 90 RH 10.9 ST DIN 931
11

Bolt Hex M10x1.5x 80 RH 10.9 ST DIN 931
12

Washer ID10 OD24.5 h 1
WF861_111
6.30€
13

Washer ID10 OD24.5 h 2
WF861_112
6.30€

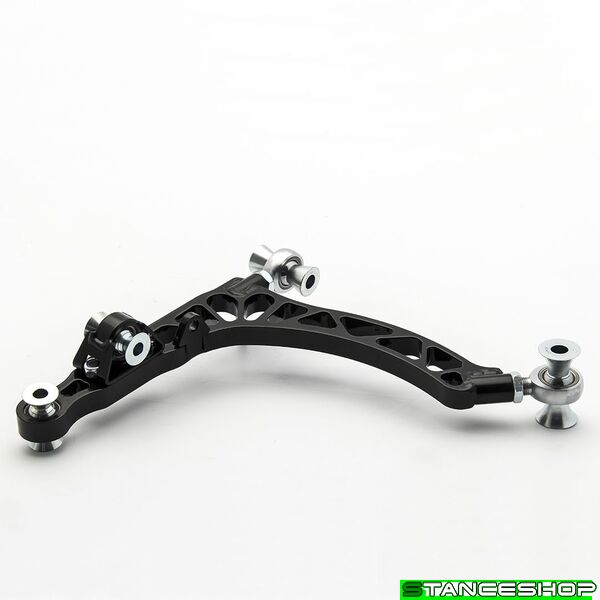

Left Lower Control Arm

1

Lower Control Arm
Left
WFS22_200LA
520.00€
2

Bolt Hex M14x1.50x100 RH 10.9 ZN SPC
WFS22_903
17.00€
3

Washer Flat M14 ZN DIN125
B03114NAZD125
1.50€
4

Control Arm Adjustment Washer
WFS22_203
7.30€
5

Spacer ID14 OD16 h23
WFS22_901
8.40€
6

Rod end 16x1.5 RH male CrMo
7

Nut Nylock M14x1.5 RH 8.8 ZN DIN985-8
8

Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
9

Spacer ID14 OD16 h21
WF013_902
8.40€
10

Bolt Hex M10x1.5x 35 RH 10.9 ST DIN 933
11

Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
12

Lower Control Arm Spherical Shock Mount
WF350_700A
42.00€
13

Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
14

Spacer ID12 OD16 h14.5
WF113_913
8.40€
15

C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
16

Spherical ID16/OD32

Right Lower Control Arm

1

Lower Control Arm
Right
WFS22_200RA
520.00€
2

Bolt Hex M14x1.50x100 RH 10.9 ZN SPC
WFS22_903
17.00€
3

Washer Flat M14 ZN DIN125
B03114NAZD125
1.50€
4

Control Arm Adjustment Washer
WFS22_203
7.30€
5

Spacer ID14 OD16 h23
WFS22_901
8.40€
6

Rod end 16x1.5 RH male CrMo
7

Nut Nylock M14x1.5 RH 8.8 ZN DIN985-8
8

Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
9

Spacer ID14 OD16 h21
WF013_902
8.40€
10

Bolt Hex M10x1.5x 35 RH 10.9 ST DIN 933
11

Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
12

Lower Control Arm Spherical Shock Mount
WF350_700A
42.00€
13

Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
14

Spacer ID12 OD16 h14.5
WF113_913
8.40€
15

C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
16

Spherical ID16/OD32

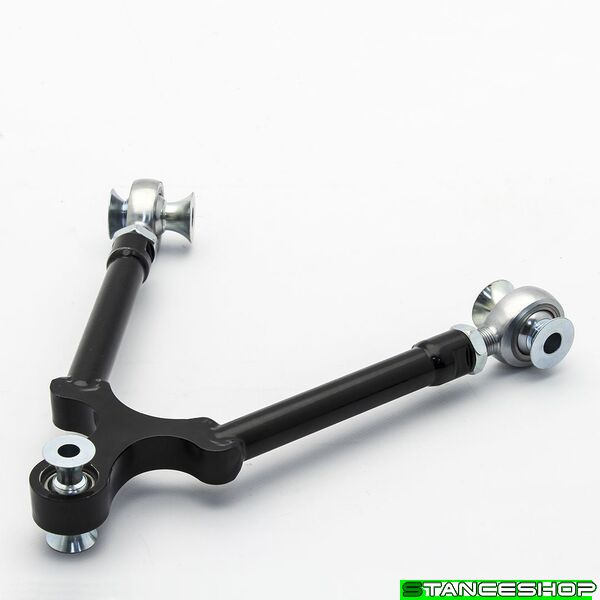

Upper Control Arm

1

Upper Control Arm
WFS22_300A
310.00€
2

Spacer ID12 OD16 h 9.5
WFE81_905
8.40€
3

Rod end 16x1.5 RH male CrMo
4

ID12 OD16 h16.5
WF371_903
8.40€
5

Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
6

Spacer ID10 OD12 h17
WFS22_902
8.40€
7

C-Clip InternalSTD d26 ST DIN472
B04126SD472
1.50€
8

Spherical ID12/OD26

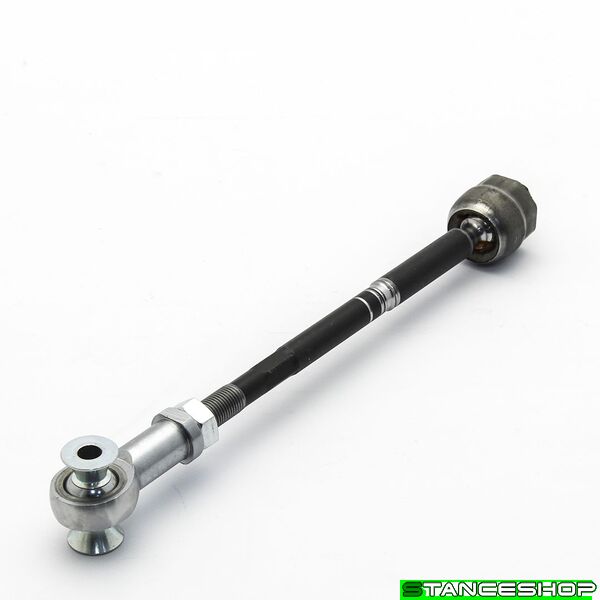

Tie Rod Assembly

1

Tie Rod Assembly
WFS22_600A
70.00€
2

Tie Rod Inner M14x1.5 M16x1.5 L278
3

Spacer ID10 OD14 h13
WF370_909
8.40€
4

Rod end 14x1.5 RH female CrMo
Image currently unavailable

Adjustment Sticker

1

Adjustment Sticker
A_KL_S2000
6.00€
3 361 € купить в 1 клик
