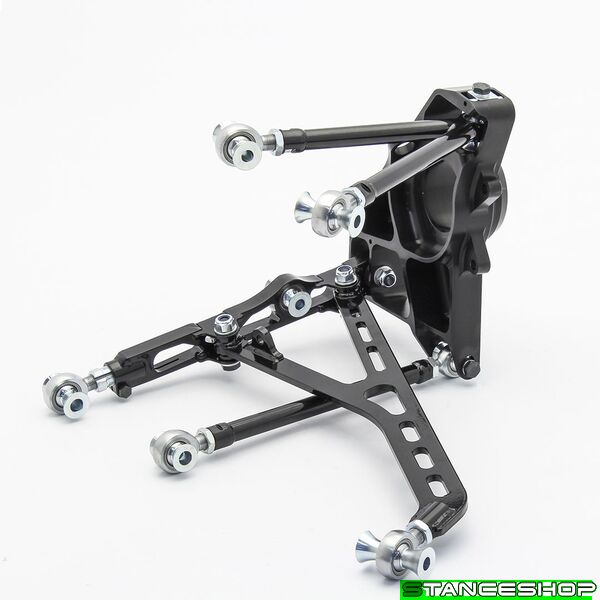

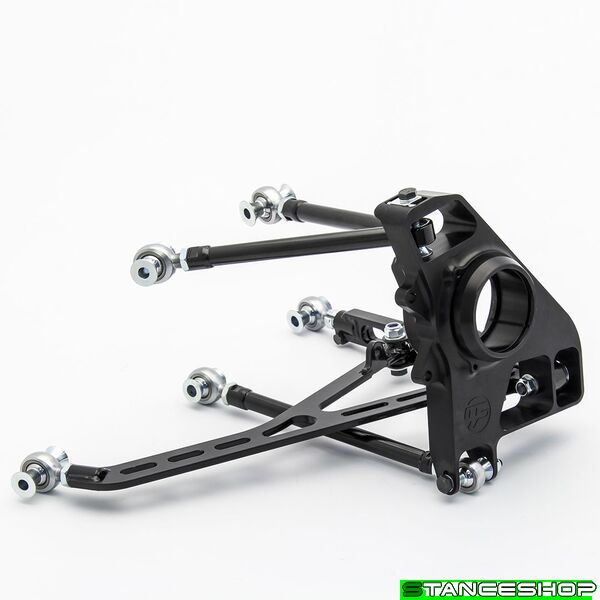

Honda S2000 Rear Suspension Drop Knuckle Kit

• Weight saving over original components
  But still maintaining required strength and stiffness
• Over 40mm lower A-arm joint drop compared to original knuckle
• 7075-T6 aluminium billet CNC knuckles and CrMo arms
  With optimized double shear deasing that provides low weight and high strenght
• CrMo rod ends and sphericals used instead of OEM style bushings.
• Easy camber adjustment on the knuckle
  Camber can be adjusted easily on trackside in just a few minutes
• Bump steer adjustment
  Bump steer is adjustable by tie rod height on the knuckle
• Quicker steering ratio
  Steering ratio is slightly quicker compared to OEM

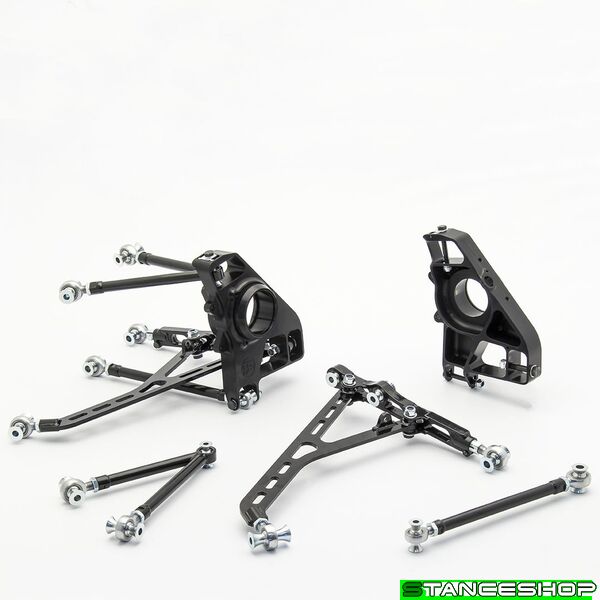

Kit includes:

• Upper and lower control arms
• Knuckles with hardware
• Lower control arms
• Assembeled tie rods
• Hardware for caster control
• AP1 and AP2 spacers
• Installation guide

Other information:

• This kit assumes coilovers
• Minimum rim size is 17“
• Track width is close to original. Similar size and offset rims can be used as with original suspension
• Original wheel speed sensor can be used

Complete parts

1



Knuckle

Left

WFS21_100LA

760.00€

Right

WFS21_100RA

760.00€

2



Suspension Arm #2

Left

WFS21_200LA

260.00€

Right

WFS21_200RA

260.00€

3



Suspension Arm #3

WFS21_300A

310.00€

4



Suspension Arm #4

Left

WFS21_400LA

150.00€

Right

WFS21_400RA

150.00€

5



Suspension Arm #5

WFS21_500A

175.00€

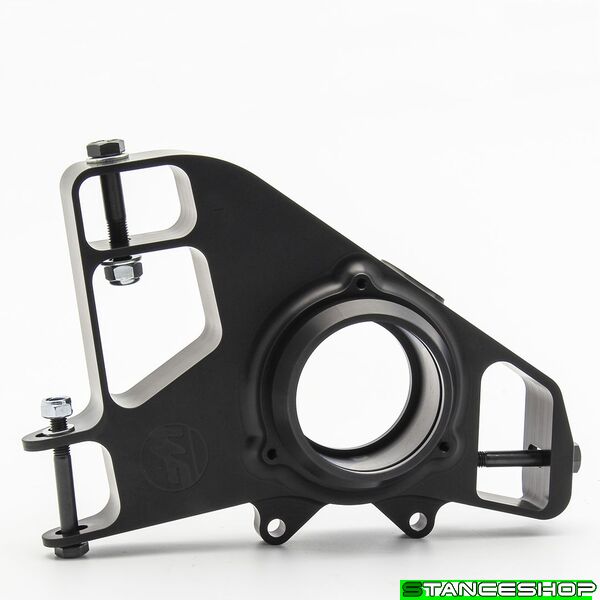

Left Knuckle

1



Knuckle

Left

WFS21_100LA

760.00€

2



Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960

B01112150070R3SD960

6.30€

3



Washer Flat M12 ZN DIN125

B03112NAZD125

1.50€

4



Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8

B02212150R2ZD9858

1.50€

5



Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8

B02210150R2ZD9858

1.50€

6



Washer FlatSmall M10 ZN DIN433

B03210NAZD433

1.50€

7



Bolt Hex M10x1.5x 80 RH 10.9 ST DIN 931

B01110150080R3SD931

4.20€

8



Washer Flat M10 ZN DIN125

B03110NAZD125

1.50€

9



Camber Adjustment Plate

WF700_911

13.00€

10



Bolt SetScrew M 8x1.25x 39.6 RH 10.9 ZN SPC

WFS22_905

8.40€

Right Knuckle

1



Knuckle

Right

WFS21_100RA

760.00€

2



Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960

B01112150070R3SD960

6.30€

3



Washer Flat M12 ZN DIN125

B03112NAZD125

1.50€

4



Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8

B02212150R2ZD9858

1.50€

5



Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8

B02210150R2ZD9858

1.50€

6



Washer FlatSmall M10 ZN DIN433

B03210NAZD433

1.50€

7



Bolt Hex M10x1.5x 80 RH 10.9 ST DIN 931

B01110150080R3SD931

4.20€

8



Washer Flat M10 ZN DIN125

B03110NAZD125

1.50€

9



Camber Adjustment Plate

WF700_911

13.00€

10



Bolt SetScrew M 8x1.25x 39.6 RH 10.9 ZN SPC

WFS22_905

8.40€

Left Suspension Arm #2

1



Suspension Arm #2

Left

WFS21_200LA

260.00€

2



Spacer ID14 OD16 h10

WF036_903

8.40€

3



Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

4



Spacer ID14 OD16 h19

WF180_910

8.40€

5



Double Adjuster Female/Male M16x1.5 M22x1.5

WF700_906

15.00€

6



Bolt Hex M 8x1.25x 25 RH 12.9 ST DIN 933

B01108125025R4SD933

1.50€

7



Bolt Hex M12x1.5x 50 RH 10.9 ST DIN 961

B01112150050R3SD961

4.20€

8



Washer Flat M12 ZN DIN125

B03112NAZD125

1.50€

9



Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8

B02212150R2ZD9858

1.50€

10



Spacer ID12 OD16 h14.5

WF113_913

8.40€

11



Spherical ID16/OD32

SSPHERICAL 16/32

25.00€

12



C-Clip InternalSTD d32 ST DIN472

B04132SD472

1.50€

13



Spacer ID12 OD16 h 9.5

WFE81_905

8.40€

Right Suspension Arm #2

1



Suspension Arm #2

Right

WFS21_200RA

260.00€

2



Spacer ID14 OD16 h10

WF036_903

8.40€

3



Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

4



Spacer ID14 OD16 h19

WF180_910

8.40€

5



Double Adjuster Female/Male M16x1.5 M22x1.5

WF700_906

15.00€

6



Bolt Hex M 8x1.25x 25 RH 12.9 ST DIN 933

B01108125025R4SD933

1.50€

7



Bolt Hex M12x1.5x 50 RH 10.9 ST DIN 961

B01112150050R3SD961

4.20€

8



Washer Flat M12 ZN DIN125

B03112NAZD125

1.50€

9



Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8

B02212150R2ZD9858

1.50€

10



Spacer ID12 OD16 h14.5

WF113_913

8.40€

11



Spherical ID16/OD32

SSPHERICAL 16/32

25.00€

12



C-Clip InternalSTD d32 ST DIN472

B04132SD472

1.50€

13



Spacer ID12 OD16 h 9.5

WFE81_905

8.40€

Suspension Arm #3

1



Suspension Arm #3

WFS21_300A

310.00€

2



Spacer ID12 OD16 h18

WF136_903

8.40€

3



Spacer ID12 OD16 h 9.5

WFE81_905

8.40€

4



Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

5



Nut Thin M16x1.5 RH 8.8 ZN DIN936/439

B02316150R2ZD936/439

2.80€

6



Spacer ID10 OD12 h14

WF080_906

8.40€

7



C-Clip InternalSTD d26 ST DIN472

B04126SD472

1.50€

8



Spherical ID12/OD26

SSPHERICAL 12/26

23.00€

Left Suspension Arm #4

1



Suspension Arm #4

Left

WFS21_400LA

150.00€

2



Spacer ID12 OD16 h20.75

WF871_906

8.40€

3



Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

4



Nut Thin M16x1.5 RH 8.8 ZN DIN936/439

B02316150R2ZD936/439

2.80€

Right Suspension Arm #4

1



Suspension Arm #4

Right

WFS21_400RA

150.00€

2



Spacer ID12 OD16 h20.75

WF871_906

8.40€

3



Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

4



Nut Thin M16x1.5 RH 8.8 ZN DIN936/439

B02316150R2ZD936/439

2.80€

Suspension Arm #5

1



Suspension Arm #5

WFS21_500A

175.00€

2



Spacer ID14 OD16 h11.5

WF180_907

8.40€

3



Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

4



Nut Thin M16x1.5 RH 8.8 ZN DIN936/439

B02316150R2ZD936/439

2.80€

5



Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

6



Spacer ID10 OD14 h15.5

WF370_901

8.40€

7



Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€
