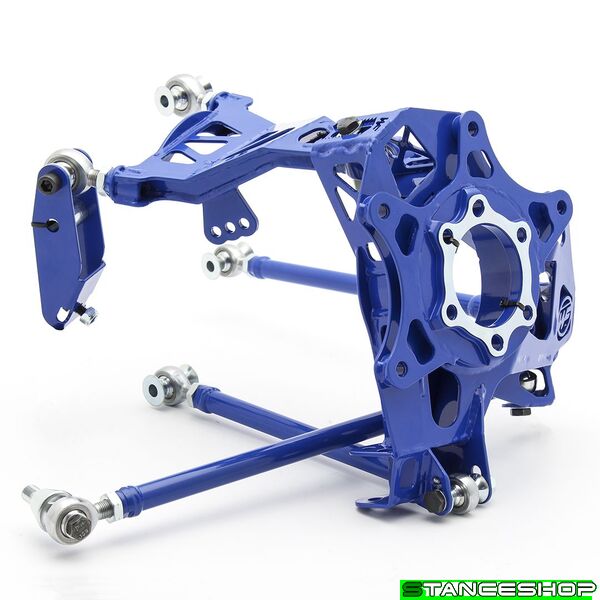

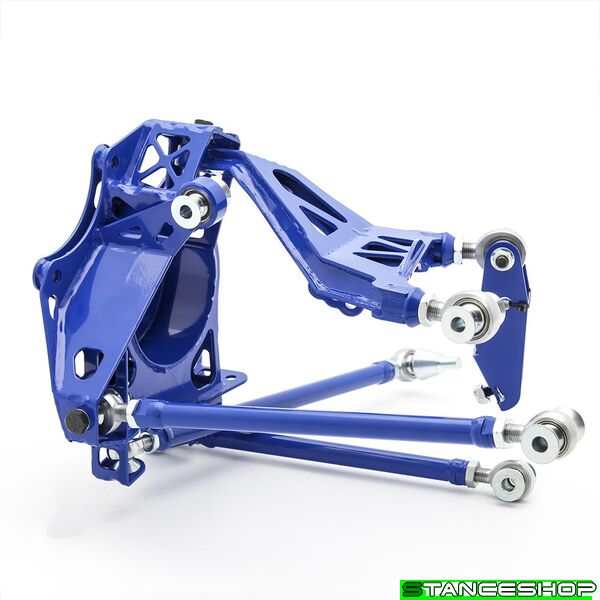

Infiniti G35 Rear Suspension Drop Knuckle Kit
- Revised kinematics, not just dropped knuckle.
The top arm front pickup point is raised by 40mm for better antisquat. This correlates with all the known championship regulations. For lower grip and wet conditions the original pickup point can be used as well. - About the same weight as original aluminium suspension.
All the metal components on Infiniti G35 rear suspension are from high strenght steel, including sheetmetal components, tubes, tube ends and rod end housings. Rod ends and spherical bearings used, no rubber bushings. - Easy camber adjustment.
Special teethed washer is used for adjustment. - Bump steer adjustment.
Possibility to adjust bump steer by changing rod end location in a slot. - Anti-squat adjustment.
Possibility to adjust anti-squat by changing the top forward link height on upright. - Adjustable antiroll bar (swaybar) motion ratio.
There are 3 possibilities for antiroll bar drop link attachments.
Changing antiroll bar motion ratio is quick and easy way to tune your car understeer/oversteer.

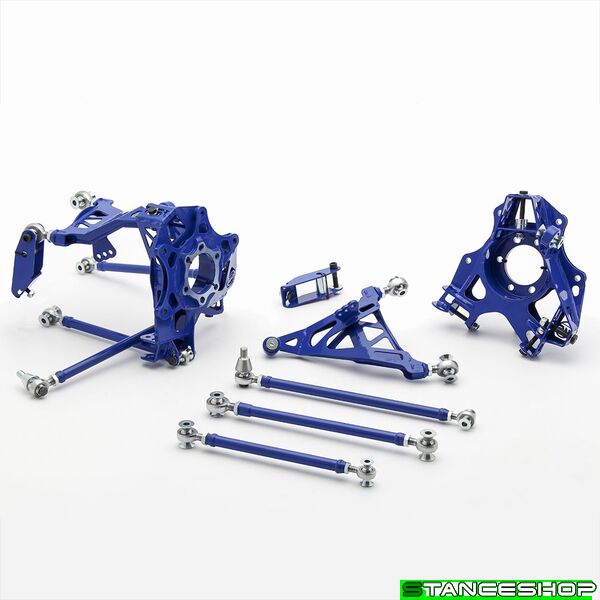

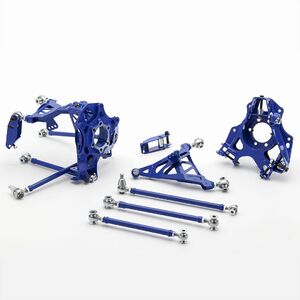

Kit includes:

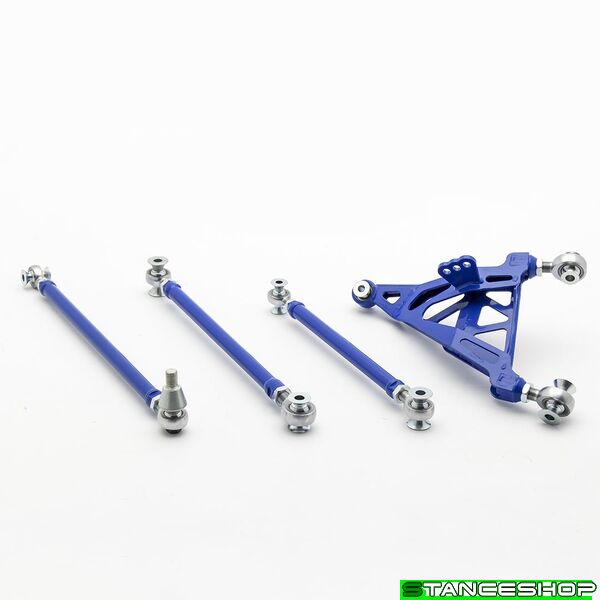

- Pre-set suspension links.
- Knuckles with hardware.
- Pick-up point relocating bracket.
- Installation guide.
Other components
- Hub to hub length (track) is the same as original, as this is defined by halfshaft lengths.
- This kit assumes coilovers to adjust ride height and use spring around the shock not on rear link.
- Possibility to use Nissan S-Chassis hub with bigger CV joint.
- Minimum rim size is 17“
Complete parts
2
Suspension Arm #2
WF351_200A
145.00€
4
Suspension Arm #4
WF351_400A
145.00€
5
Suspension Arm #5
WF351_500A
145.00€
6
Arm #3 Relocating Bracket
WF351_700A
50.00€
Right Knuckle
1
Knuckle
2
Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960
B01112150070R3SD960
6.30€
3
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
4
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
5
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
6
Camber Adjustmen
WF351_118
4.20€
7
Bolt Hex M10x1.5x 90 RH 10.9 ST DIN 931
B01110150090R3SD931
4.20€
8
Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931
B01110150060R3SD931
2.80€
9
Bolt Hex M10x1.5x 65 RH 10.9 ST DIN 931
B01110150065R3SD931
2.80€
10
Hub Spacer
WF371_102
7.30€
11
Spacer ID12 OD16 h14.5
WF113_913
8.40€
12
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
13
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
14
BushingT ID10 OD24 h10
WF901_905
7.30€
15
Washer Flat M12 ZN DIN125
B03112NAZD125
1.50€
Left Knuckle
1
Knuckle
2
Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960
B01112150070R3SD960
6.30€
3
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
4
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
5
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
6
Camber Adjustmen
WF351_118
4.20€
7
Bolt Hex M10x1.5x 90 RH 10.9 ST DIN 931
B01110150090R3SD931
4.20€
8
Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931
B01110150060R3SD931
2.80€
9
Bolt Hex M10x1.5x 65 RH 10.9 ST DIN 931
B01110150065R3SD931
2.80€
10
Hub Spacer
WF371_102
7.30€
11
Spacer ID12 OD16 h14.5
WF113_913
8.40€
12
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
13
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
14
BushingT ID10 OD24 h10
WF901_905
7.30€
15
Washer Flat M12 ZN DIN125
B03112NAZD125
1.50€
Suspension Arm #2
1
Suspension Arm #2
WF351_200A
145.00€
2
Spacer ID12 OD14 h15.5
WF351_902
8.40€
3
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
21.00€
4
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
5
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
6
Spacer ID12 OD16 h10
WF013_903
8.40€
7
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
Left Suspension Arm #3
1
Suspension Arm #3
2
Spacer ID12 OD16 h14.5
WF113_913
8.40€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
5
Spacer ID12 OD16 h 8.5
WF351_904
7.30€
7
Spacer ID10 OD12 h14
WF080_906
8.40€
8
C-Clip InternalSTD d26 ST DIN472
B04126SD472
1.50€
9
Spherical ID12/OD26
SSPHERICAL 12/26
23.00€
Right Suspension Arm #3
1
Suspension Arm #3
2
Spacer ID12 OD16 h14.5
WF113_913
8.40€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
5
Spacer ID12 OD16 h 8.5
WF351_904
7.30€
7
Spacer ID10 OD12 h14
WF080_906
8.40€
8
C-Clip InternalSTD d26 ST DIN472
B04126SD472
1.50€
9
Spherical ID12/OD26
SSPHERICAL 12/26
23.00€
Suspension Arm #4
1
Suspension Arm #4
WF351_400A
145.00€
2
Conical Bolt
WF351_903
19.00€
3
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
21.00€
4
Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
5
Bolt Hex M10x1.5x 20 RH 10.9 ST DIN 933
B01110150020R3SD933
1.50€
6
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
7
Nut Thin M12x1.5 RH 8.8 ZN DIN936/439
B02312150R2ZD936/439
2.80€
8
Spacer ID10 OD12 h10.5
WF113_902
7.30€
9
Rod end 12x1.5 RH male CrMo
SRODEND12X1.5 RH M
21.00€
Suspension Arm #5
1
Suspension Arm #5
WF351_500A
145.00€
2
Spacer ID12 OD14 h12.5
WF351_901
8.40€
3
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
21.00€
4
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
5
Nut Thin M12x1.5 RH 8.8 ZN DIN936/439
B02312150R2ZD936/439
2.80€
6
Spacer ID10 OD12 h14
WF080_906
8.40€
7
Rod end 12x1.5 RH male CrMo
SRODEND12X1.5 RH M
21.00€
Arm #3 Relocating Bracket
1
Arm #3 Relocating Bracket
WF351_700A
50.00€
2
Bolt Hex M10x1.5x 20 RH 10.9 ST DIN 933
B01110150020R3SD933
1.50€
3
Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
4
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
5
Bolt Allen M12x1.5x 60 RH 12.9 ST DIN 912
B01212150060R4SD912
7.30€
6
WasherT ID13 OD30 h 4
WF351_702
4.20€
7
Nut Collar M12x1.50 RH ZN SPC
WF001_12X15
8.40€
8
BushingT ID12 OD24 h43
WF351_905
8.40€
