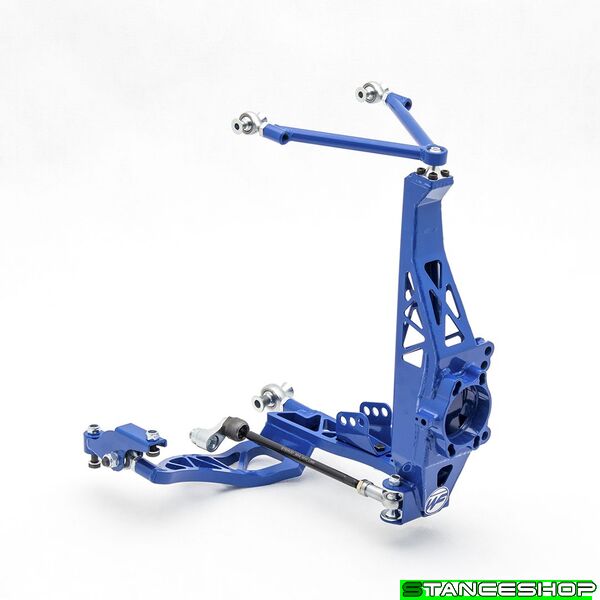

Infiniti G37 Front Drift Angle Lock Kit
- 65 degrees of lock, parallel steering.
You can tune your steering geometry either towards positive or negative Ackermann in just a few minutes even at trackside without messing up an alignment.
Ackermann adjustment kit included. - Adjustable lock stopper.
- One piece lower control arm desing.
2 lower links would have some benefits for circuit racing, but for drifting with higher steering angle the stiffness and packaging would become an issue. Therefore lower one piece arm is used. - Higher roll center (RC).
On Wisefab knuckle, both joints are dropped, which brings the front RC up on lowered car, providing higher roll stiffness and letting to remove the front anti roll bar (sway bar) that is quite difficult to package with that high lock angles. - Very good camber control and minimal bump steer with high steering angles.
On drift cars the dynamic camber and bump steer is much more important than static. With our kinematics we have assured that the camber would provide very good front grip and bump steer is minimal at all the range of steering. - Steering jacking control.
During drifting, when steering angle is much bigger, jacking is also bigger, even with the same geometry and it could become a problem. We have changed the geometry that it doesn't cause any handling issues. - Consistent and predictable self-alignment torque.
Caster is not the only important parameter to provide sufficient self-alignment torque especially at high lock. It's the combination of different parameters to maintain consistent trail and self-alignment torque. With our setup the steering wheel turns always to the direction of movement and doesn't get stuck at full lock. - Adjustable spring and shock absorber motion ratio.
The shock lower bracket has 3 attachment possibilities, which allows to change suspension stiffness and handling very quickly.

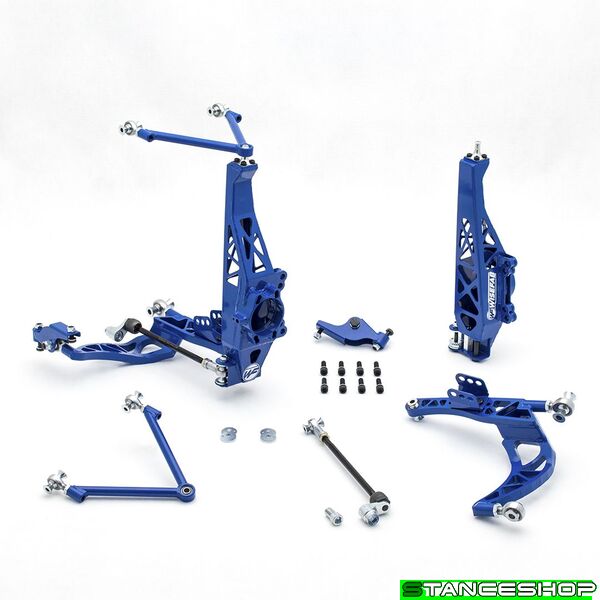

Kit includes:
- Pre-set upper and lower control arms.
- Knuckles with hardware.
- Assembeled tie rods.
- Installation guide
Other components, packaging and clearance.
- This kit assumes car to have coilovers to have enough clearance.
- Ride height is designed to be ~80mm from front subframe to ground.
- Dependent on rim width and ET, wider fenders or fender flares would be needed. Inner wheel wells do not need to be modified with tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 etc).
- Minimum rim diameter is 17".
- Recommended backspacing is ~135mm (7" ET45; 8" ET35; 9" ET20). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used.
The kit is designed and manufactured the way that after installation and toe adjustment it's ready to use right away.
e right away.
Complete parts
3

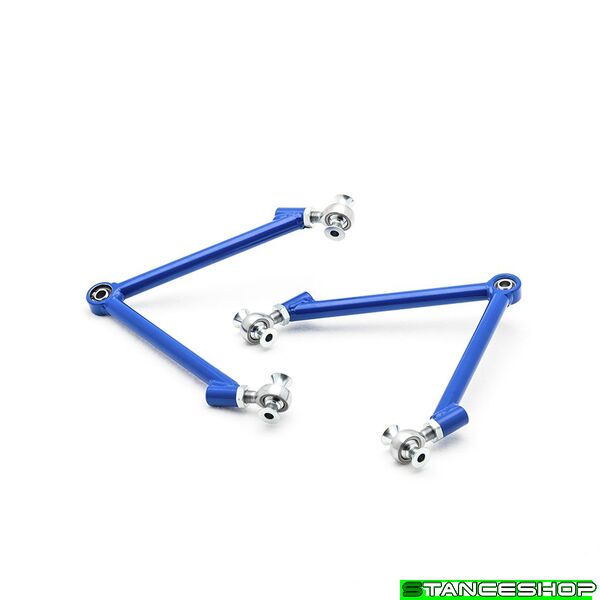

Upper Control Arm
WF370_300A
210.00€
4

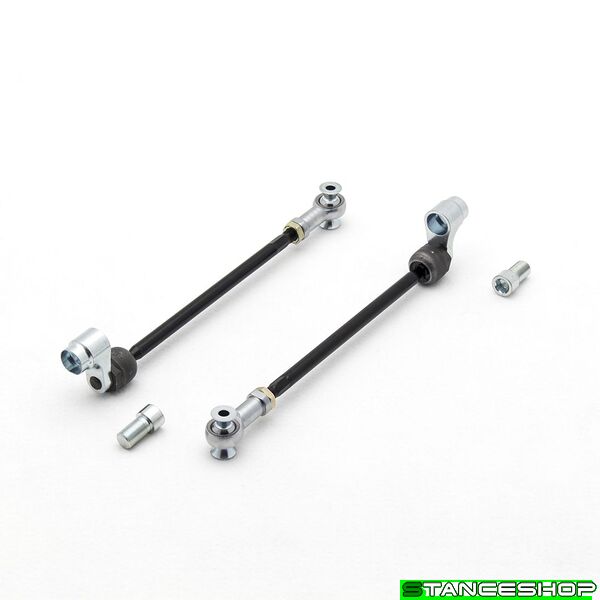

Tie Rod Assembly
WF370_600A
90.00€
5
Lower Control Arm Support
WF370_220A
65.00€

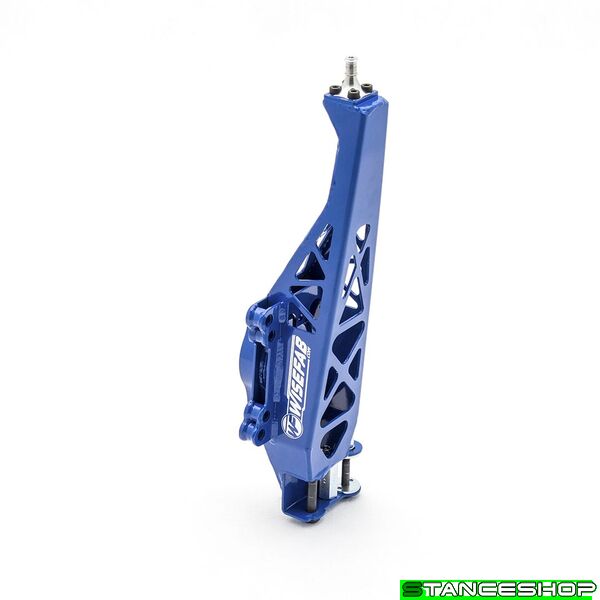

Left Knuckle
1
Knuckle
2
Bolt Allen M12x1.25x 50 RH 12.9 ST DIN 912
B01212125050R4SD912
7.30€
3
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
4
Bolt Hex M10x1.5x 70 RH 10.9 ST DIN 931
B01110150070R3SD931
2.80€
5
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
6
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
7
Ackermann Washer Round 0 offset
WF013_140
7.30€
8
Ackermann Washer Round 3 Offset
WF080_142
7.30€
9
Ackermann Washer Round 6 Offset
WF080_144
7.30€
10
Bolt Hex M 8x1.25x 70 RH 8.8 ZN DIN 931
B01108125070R2ZD931
1.50€
11
Washer Flat M 8 ZN DIN125
B03108NAZD125
1.50€
12
BushingT ID 8 OD22 h51 Excentric Lock Stopper
WF370_950
11.00€
14
Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960
B01112150080R3SD960
6.30€
15
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
16
Single Share Mount ID 8 OD12
WF700_903
25.00€
17
Bolt Allen M 8x1.25x 62.5 RH 12.9 ZN SPC
WF700_904
23.00€
18
Bolt Allen M 8x1.25x 12 RH 12.9 ST DIN 912
B01208125012R4SD912
1.50€

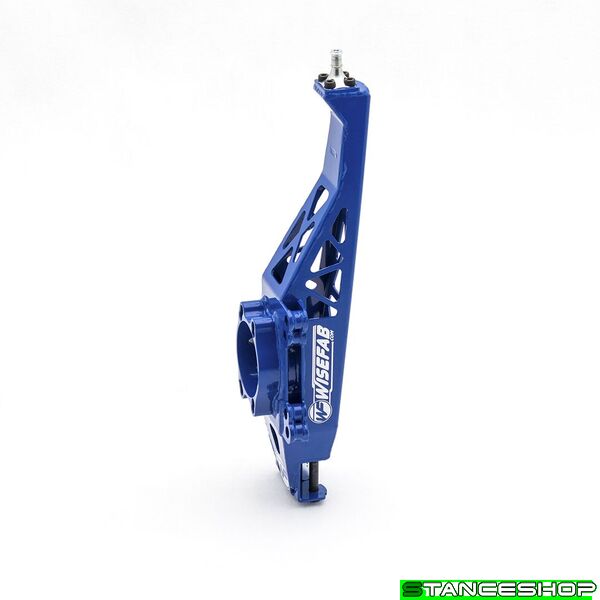

Right Knuckle
1
Knuckle
2
Bolt Allen M12x1.25x 50 RH 12.9 ST DIN 912
B01212125050R4SD912
7.30€
3
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
4
Bolt Hex M10x1.5x 70 RH 10.9 ST DIN 931
B01110150070R3SD931
2.80€
5
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
6
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
7
Ackermann Washer Round 0 offset
WF013_140
7.30€
8
Ackermann Washer Round 3 Offset
WF080_142
7.30€
9
Ackermann Washer Round 6 Offset
WF080_144
7.30€
10
Bolt Hex M 8x1.25x 70 RH 8.8 ZN DIN 931
B01108125070R2ZD931
1.50€
11
Washer Flat M 8 ZN DIN125
B03108NAZD125
1.50€
12
BushingT ID 8 OD22 h51 Excentric Lock Stopper
WF370_950
11.00€
14
Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960
B01112150080R3SD960
6.30€
15
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
16
Single Share Mount ID 8 OD12
WF700_903
25.00€
17
Bolt Allen M 8x1.25x 62.5 RH 12.9 ZN SPC
WF700_904
23.00€
18
Bolt Allen M 8x1.25x 12 RH 12.9 ST DIN 912
B01208125012R4SD912
1.50€

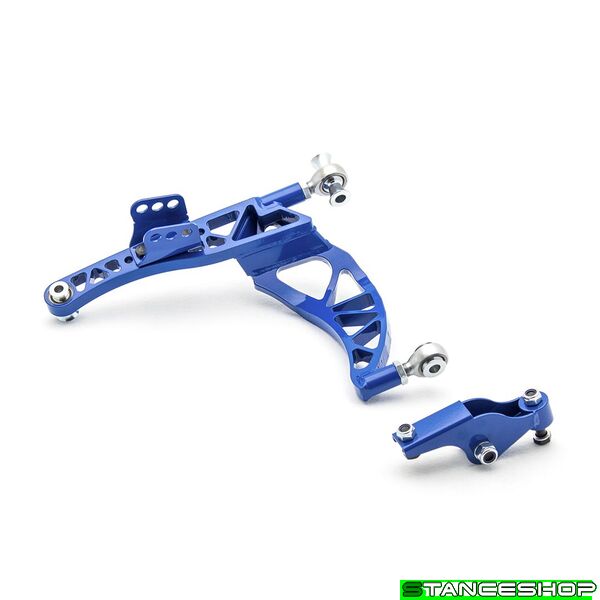

Left Lower Control Arm
1
Lower Control Arm
2
Spacer ID14 OD18 h 3.5
WF370_908
7.30€
3
Rod end 18x1.5 RH male CrMo
SRODEND18X1.5 RH M
31.00€
4
Nut Thin M18x1.5 RH 8.8 ZN DIN936/439
B02318150R2ZD936/439
2.80€
5
Spacer ID14 OD18 h23.5
WF370_907
8.40€
6
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
7
Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
8
Lower Control Arm Shock Mount
WF080_220
20.00€
9
Washer Flat M14 ZN DIN125
B03114NAZD125
1.50€
10
Bolt Hex M10x1.5x 35 RH 10.9 ST DIN 933
B01110150035R3SD933
2.80€
11
Spacer ID12 OD16 h 8.5
WF351_904
7.30€
12
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
13
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
14
Spacer ID12 OD16 h18
WF136_903
8.40€
Right Lower Control Arm
1
Lower Control Arm
2
Spacer ID14 OD18 h 3.5
WF370_908
7.30€
3
Rod end 18x1.5 RH male CrMo
SRODEND18X1.5 RH M
31.00€
4
Nut Thin M18x1.5 RH 8.8 ZN DIN936/439
B02318150R2ZD936/439
2.80€
5
Spacer ID14 OD18 h23.5
WF370_907
8.40€
6
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
7
Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
8
Lower Control Arm Shock Mount
WF080_220
20.00€
9
Washer Flat M14 ZN DIN125
B03114NAZD125
1.50€
10
Bolt Hex M10x1.5x 35 RH 10.9 ST DIN 933
B01110150035R3SD933
2.80€
11
Spacer ID12 OD16 h 8.5
WF351_904
7.30€
12
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
13
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
14
Spacer ID12 OD16 h18
WF136_903
8.40€
Upper Control Arm
1
Upper Control Arm
WF370_300A
210.00€
2
Spacer ID10 OD14 h15.5
WF370_901
8.40€
3
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
21.00€
4
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
5
C-Clip InternalSTD d26 ST DIN472
B04126SD472
1.50€
6
Spherical ID12/OD26
SSPHERICAL 12/26
23.00€
Tie Rod Assembly
1
Tie Rod Assembly
WF370_600A
90.00€
2
Rack Offset Spacer
WF370_801
50.00€
3
Bolt Allen M18x1.0x 30 RH 12.9 ZN D912
WF370_910
15.00€
4
Tie Rod Inner M14x1.5 M14x1.5 L323
STIEROD_M14_M14_L323
21.00€
5
Spacer ID10 OD14 h13
WF370_909
8.40€
6
Rod end 14x1.5 RH female CrMo
SRODEND14X1.5 RH F
26.00€
Lower Control Arm Support
1
Lower Control Arm Support
WF370_220A
65.00€
2
Nut Nylock M14x1.5 RH 8.8 ZN DIN985-8
B02214150R2ZD9858
1.50€
3
Washer FlatSmall M14 ZN DIN433
B03214NAZD433
1.50€
4
Bolt Hex M14x1.5x 60 RH 10.9 ST DIN 960
B01114150060R3SD960
4.20€
5
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
6
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
7
Bolt Hex M12x1.5x 60 RH 10.9 ST DIN 960
B01112150060R3SD960
4.20€
8
Bolt Hex M12x1.5x 30 RH 10.9 ST DIN 961
B01112150030R3SD961
4.20€
