Mazda RX-8 Front Drift Angle Lock Kit
- Suitable for Mazda RX8 and MX5 NC (2005 – 2015)
The kit comes with parts to fit a BMW E36 or E46 rack to the subframe. The knuckle has 2 positions for tie rod attachment: for original rack position and for a lowered position. For lowered position it has also some adjustability in case someone has already lowered the rack and it doesn't match with our designed height. - 65 degrees of lock, parallel steering
You can tune your steering geometry either towards positive or negative Ackermann in just a few minutes even at trackside without messing up the alignment. The Ackermann adjustment kit is included. - Adjustable lock stopper
- Higher roll center (RC)

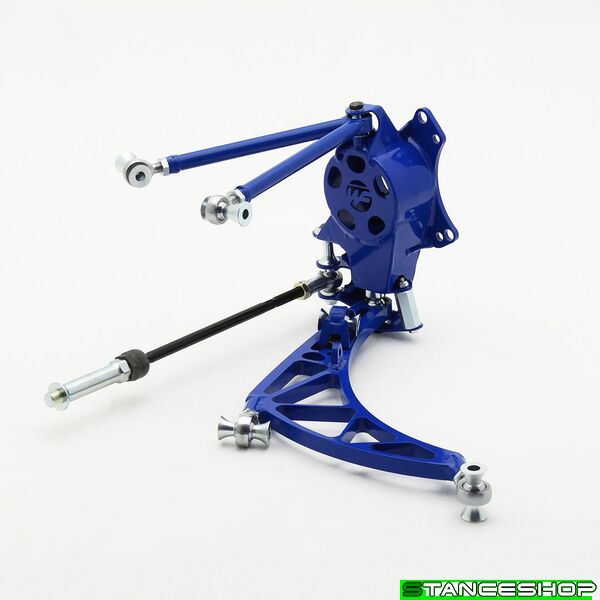

On Wisefab knuckles, both joints are dropped, which brings the front RC up on a lowered car, providing higher roll stiffness, good camber control and minimal bump steer with high steering angles. With our kinematics we have assured that the camber will provide very good front grip and bump steer is minimal throughout the steering range. - Steering jacking control
During drifting, when steering angle is increased, jacking is also bigger, even with the same geometry it could become a problem. We have changed the geometry in a way that doesn't cause any handling issues. - Consistent and predictable self-alignment torque
Caster is not the only important parameter to provide sufficient self-alignment torque, especially at high lock. It's the combination of different parameters to maintain consistent trail and self-alignment torque. With our setup the steering wheel turns always to the direction of movement and doesn't get stuck at full lock.

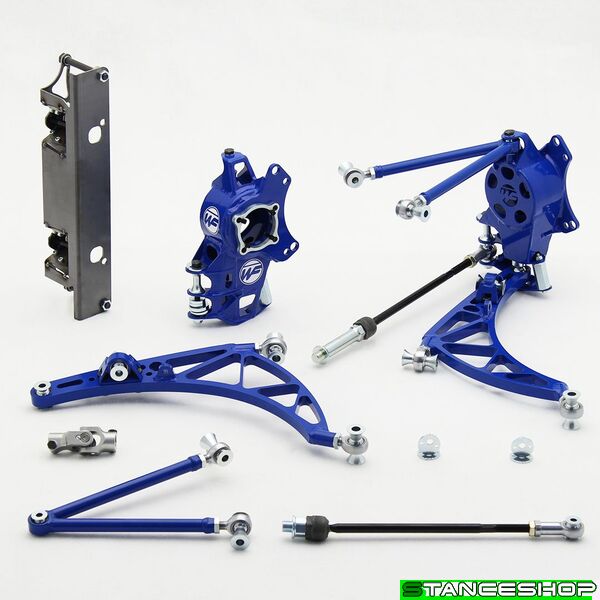

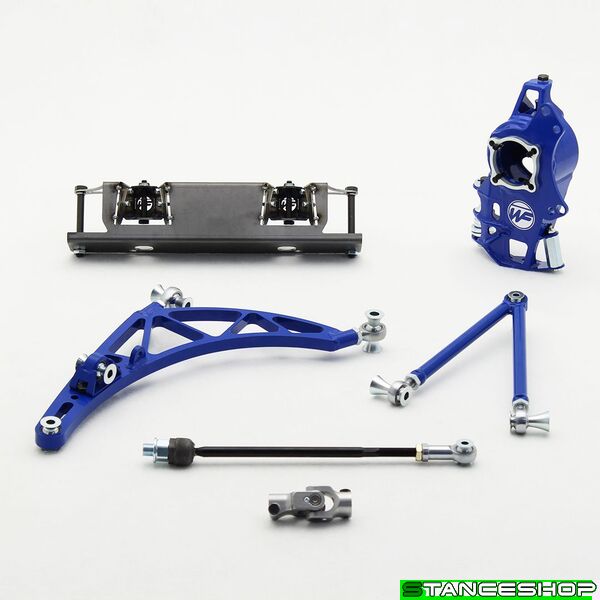

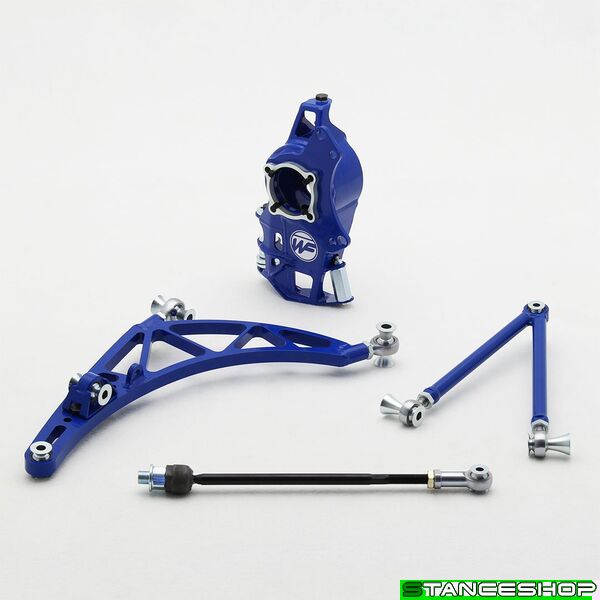

Kit includes:

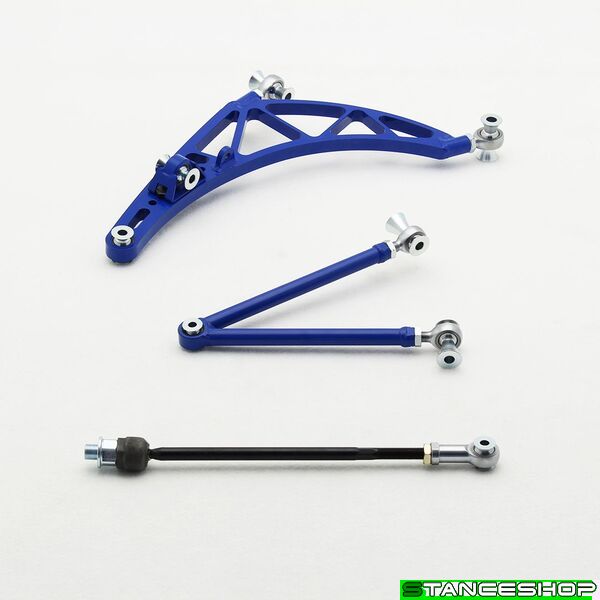

- Upper and lower control arms
- Knuckles with hardware
- Assembeled tie rods
- Rack relocating kit
- Installation guide
Other information:
- This kit assumes coilovers for enough clearance
- Ride height is designed to be ~80mm when measured from the subframe to the ground
- Dependent on rim width and ET, widened fenders or flares will be needed
- Inner wheel wells do not need to be modified with tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 etc)
- Minimum rim size is 17"
- Recommended backspacing is ~135mm (7" ET45; 8" ET35; 9" ET20). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used
- Original wheelspeed sensor (ABS sensor) can be used
- Original swaybar can be used in front
Complete parts
3
Upper Control Arm
WFR80_300A
210.00€
5
Steering Rack Template LHD
WFR80_400A
110.00€
6
Steering Column Universal Joint
WFR80_700A
210.00€

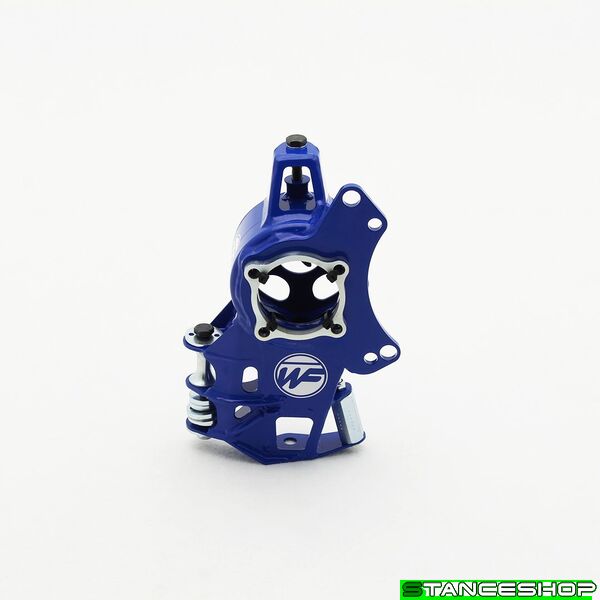

Left Knuckle
1
Knuckle
2
Bolt Hex M 8x1.25x 70 RH 8.8 ZN DIN 931
B01108125070R2ZD931
1.50€
3
BushingT ID 8 OD22 h51 Excentric Lock Stopper
WF370_950
11.00€
4
Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8
B02208125R2ZD9858
1.50€
5
Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960
B01112150070R3SD960
6.30€
6
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
7
BushingT ID12 OD28 h11
WF180_905
8.40€
8
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
9
Ackermann Washer Round 0 offset
WF013_140
7.30€
10
Ackermann Washer Round 3 Offset
WF080_142
7.30€
11
Ackermann Washer Round 6 Offset
WF080_144
7.30€
12
BushingT ID10 OD29.5 h 5.5
WFR80_909
7.30€
13
BushingT ID10 OD29.5 h41 Special
WFR80_905
11.00€
14
Bolt Hex M10x1.5x110 RH 10.9 ST DIN 931
B01110150110R3SD931
4.20€
15
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
16
Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931
B01110150060R3SD931
2.80€
17
Hub Spacer
WFR80_101
13.00€
Right Knuckle
1
Knuckle
2
Bolt Hex M 8x1.25x 70 RH 8.8 ZN DIN 931
B01108125070R2ZD931
1.50€
3
BushingT ID 8 OD22 h51 Excentric Lock Stopper
WF370_950
11.00€
4
Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8
B02208125R2ZD9858
1.50€
5
Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960
B01112150070R3SD960
6.30€
6
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
7
BushingT ID12 OD28 h11
WF180_905
8.40€
8
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
9
Ackermann Washer Round 0 offset
WF013_140
7.30€
10
Ackermann Washer Round 3 Offset
WF080_142
7.30€
11
Ackermann Washer Round 6 Offset
WF080_144
7.30€
12
BushingT ID10 OD29.5 h 5.5
WFR80_909
7.30€
13
BushingT ID10 OD29.5 h41 Special
WFR80_905
11.00€
14
Bolt Hex M10x1.5x110 RH 10.9 ST DIN 931
B01110150110R3SD931
4.20€
15
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
16
Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931
B01110150060R3SD931
2.80€
17
Hub Spacer
WFR80_101
13.00€

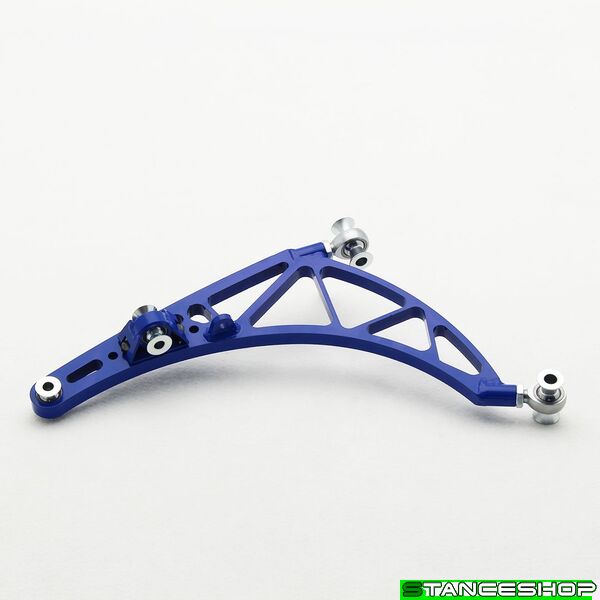

Left Lower Control Arm
1
Lower Control Arm
2
Spacer ID14 OD16 h19
WF180_910
8.40€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
5
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
6
Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
7
Spacer ID12 OD16 h14.5
WF113_913
8.40€
8
Lower Control Arm Spherical Shock Mount
WF350_700A
42.00€
9
Bolt Hex M10x1.5x 35 RH 10.9 ST DIN 933
B01110150035R3SD933
2.80€
10
Spacer ID12 OD16 h10
WF013_903
8.40€
11
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
12
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
Right Lower Control Arm
1
Lower Control Arm
2
Spacer ID14 OD16 h19
WF180_910
8.40€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
5
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
6
Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
7
Spacer ID12 OD16 h14.5
WF113_913
8.40€
8
Lower Control Arm Spherical Shock Mount
WF350_700A
42.00€
9
Bolt Hex M10x1.5x 35 RH 10.9 ST DIN 933
B01110150035R3SD933
2.80€
10
Spacer ID12 OD16 h10
WF013_903
8.40€
11
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
12
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
Upper Control Arm
1
Upper Control Arm
WFR80_300A
210.00€
2
Spacer ID12 OD14 h29.5
WFR80_904
8.40€
3
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
21.00€
4
Spacer ID12 OD14 h 5.5
WFR80_903
7.30€
5
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
6
Spacer ID10 OD12 h10.5
WF113_902
7.30€
7
C-Clip InternalSTD d26 ST DIN472
B04126SD472
1.50€
8
Spherical ID12/OD26
SSPHERICAL 12/26
23.00€
Left Tie Rod Assembly
1
Tie Rod Assembly
2
Rack Extender M14x1.5 M18x1.5 L24
WF900_901
15.00€
3
Tie Rod Inner M14x1.5 M14x1.5 L366
STIEROD_M14_M14_L366
21.00€
4
Spacer ID10 OD14 h 5.4
WF080_921
7.30€
5
Rod end 14x1.5 RH female CrMo
SRODEND14X1.5 RH F
26.00€
Right Tie Rod Assembly
1
Tie Rod Assembly
2
Rack Extender M14x1.5 M18x1.5 L110
WFR80_906
31.00€
3
Tie Rod Inner M14x1.5 M14x1.5 L366
STIEROD_M14_M14_L366
21.00€
4
Spacer ID10 OD14 h 5.4
WF080_921
7.30€
5
Rod end 14x1.5 RH female CrMo
SRODEND14X1.5 RH F
26.00€
Image currently unavailable
Steering Rack Template LHD
1
Steering Rack Template LHD
WFR80_400A
110.00€
Steering Column Universal Joint
1
Steering Column Universal Joint
WFR80_700A
210.00€
2
Bolt Hex M 8x1.25x 25 RH 12.9 ST DIN 933
B01108125025R4SD933
1.50€
3
Washer Flat M 8 ZN DIN125
B03108NAZD125
1.50€
4
Bolt AllenButton M 4x0.7x 6 RH 8.8 ZN ISO7380
B01404070006R2ZI7380
1.50€
5
Universal Joint 16x40
SUJOINT1640
26.00€
