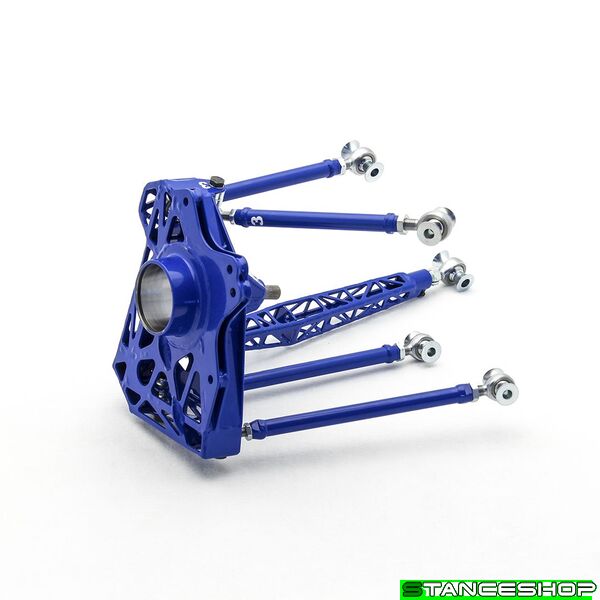

Mazda RX-8 Rear Suspension Drop Knuckle Kit

• Suitable for Mazda RX8 and MX5 NC (2005 – 2015)
• Revised kinematics, not just dropped knuckle
• Higher rollcenter, revised camber gain.
  Mazda RX8 rear suspension kit will provide good kinematics with lowered car, adjustable antisquat and bumpsteer for maximum grip
• Anti-squat adjustment
  Possibility to adjust anti-squat by changing top forward link height on upright
• Bump steer adjustment
  Possibility to adjust bump steer by changing rod end location in the slots
• Slightly lighter than original aluminium suspension
  All the metal components on RX8 rear suspension are from high strenght steel, including sheetmetal components, tubes, tube ends and rod end housings. For weight reduction and stiffness purposes all the suspension links are tubular straight design. CrMo 3-piece design rod ends and spherical bearings used, no rubber bushings
• Clearance for up to 110mm CV joint

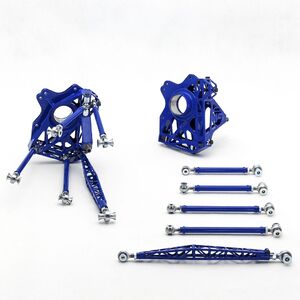

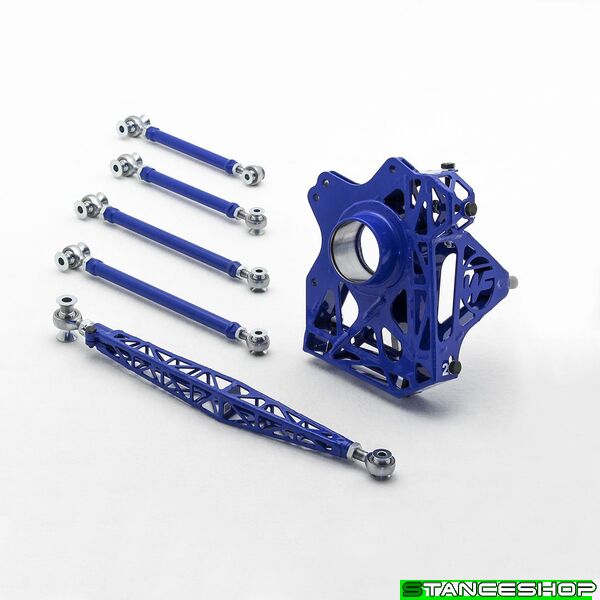

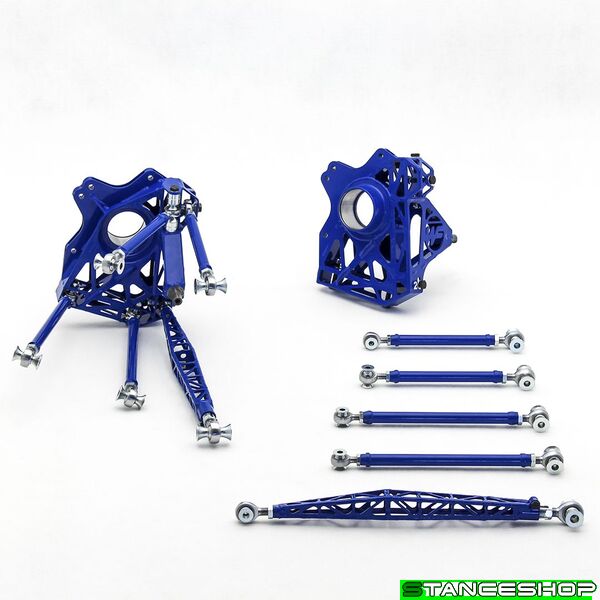

Kit includes:

• Pre-set suspension links
• Uprights with hardware
• Installation guide

Other information

• Hub to hub length (track) is the same as original, as this is defined by halfshaft length
• Knuckles have dual caliper setup
• This kit assumes coilovers to adjust ride height
• Minimum rim size is 17"

Complete parts

1



Knuckle

Left

WFR81_100LA

305.00€

Right

WFR81_100RA

305.00€

2



Suspension Arm #2

WFR81_200A

210.00€

3



Suspension Arm #3

WFR81_300A

145.00€

4



Suspension Arm #4

WFR81_400A

145.00€

5



Suspension Arm #5

WFR81_500A

145.00€

6



Suspension Arm #6

WFR81_600A

145.00€

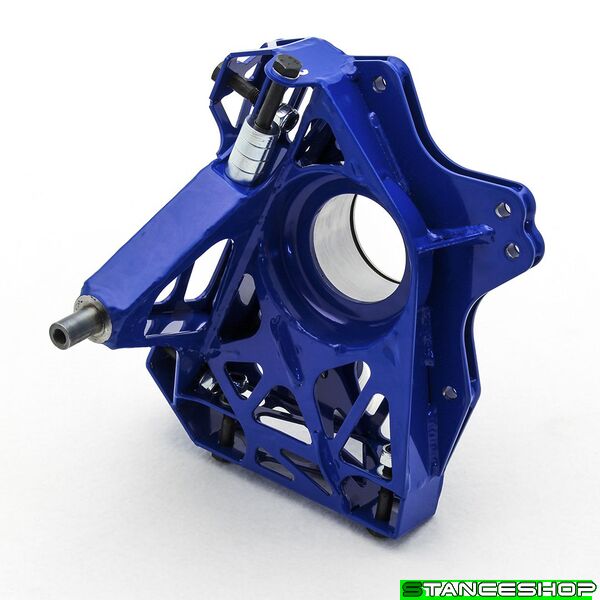

Left Knuckle

1



Knuckle

Left

WFR81_100LA

305.00€

2



Bolt Hex M10x1.5x 55 RH 10.9 ST DIN 931

B01110150055R3SD931

2.80€

3



Washer FlatSmall M10 ZN DIN433

B03210NAZD433

1.50€

4



Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8

B02210150R2ZD9858

1.50€

5



Nut Hex Flange M10x1.5 RH 8.8 ZN

B02510150R2ZD69238

2.80€

6



Bolt Hex M10x1.5x100 RH 10.9 ST DIN 931

B01110150100R3SD931

4.20€

7



BushingT ID10 OD24 h10

WF901_905

7.30€

Right Knuckle

1



Knuckle

Right

WFR81_100RA

305.00€

2



Bolt Hex M10x1.5x 55 RH 10.9 ST DIN 931

B01110150055R3SD931

2.80€

3



Washer FlatSmall M10 ZN DIN433

B03210NAZD433

1.50€

4



Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8

B02210150R2ZD9858

1.50€

5



Nut Hex Flange M10x1.5 RH 8.8 ZN

B02510150R2ZD69238

2.80€

6



Bolt Hex M10x1.5x100 RH 10.9 ST DIN 931

B01110150100R3SD931

4.20€

7



BushingT ID10 OD24 h10

WF901_905

7.30€

Suspension Arm #2

1



Suspension Arm #2

WFR81_200A

210.00€

2



Spacer ID14 OD16 h19

WF180_910

8.40€

3



Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

4



Double Adjuster Female/Male M16x1.5 M22x1.5

WF700_906

15.00€

5



Bolt Hex M 8x1.25x 25 RH 12.9 ST DIN 933

B01108125025R4SD933

1.50€

6



Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

7



Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

8



Spacer ID10 OD14 h 5.4

WF080_921

7.30€

Suspension Arm #3

1



Suspension Arm #3

WFR81_300A

145.00€

2



Spacer ID12 OD14 h14

WF113_905

8.40€

3



Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

4



Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

5



Nut Thin M12x1.5 RH 8.8 ZN DIN936/439

B02312150R2ZD936/439

2.80€

6



Spacer ID10 OD12 h10.5

WF113_902

7.30€

7



Rod end 12x1.5 RH male CrMo

SRODEND12X1.5 RH M

21.00€

Suspension Arm #4

1



Suspension Arm #4

WFR81_400A

145.00€

2



Spacer ID12 OD14 h14

WF113_905

8.40€

3



Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

4



Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

5



Nut Thin M12x1.5 RH 8.8 ZN DIN936/439

B02312150R2ZD936/439

2.80€

6



Spacer ID10 OD12 h 7

WF862_902

7.30€

7



Rod end 12x1.5 RH male CrMo

SRODEND12X1.5 RH M

21.00€

Suspension Arm #5

1



Suspension Arm #5

WFR81_500A

145.00€

2



Spacer ID12 OD14 h14

WF113_905

8.40€

3



Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

4



Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

5



Nut Thin M12x1.5 RH 8.8 ZN DIN936/439

B02312150R2ZD936/439

2.80€

6



Spacer ID10 OD12 h 7

WF862_902

7.30€

7



Rod end 12x1.5 RH male CrMo

SRODEND12X1.5 RH M

21.00€

Suspension Arm #6

1



Suspension Arm #6

WFR81_600A

145.00€

2



Spacer ID12 OD14 h14

WF113_905

8.40€

3



Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

4



Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

5



Nut Thin M12x1.5 RH 8.8 ZN DIN936/439

B02312150R2ZD936/439

2.80€

6



Spacer ID10 OD12 h 7

WF862_902

7.30€

7



Rod end 12x1.5 RH male CrMo

SRODEND12X1.5 RH M

21.00€
