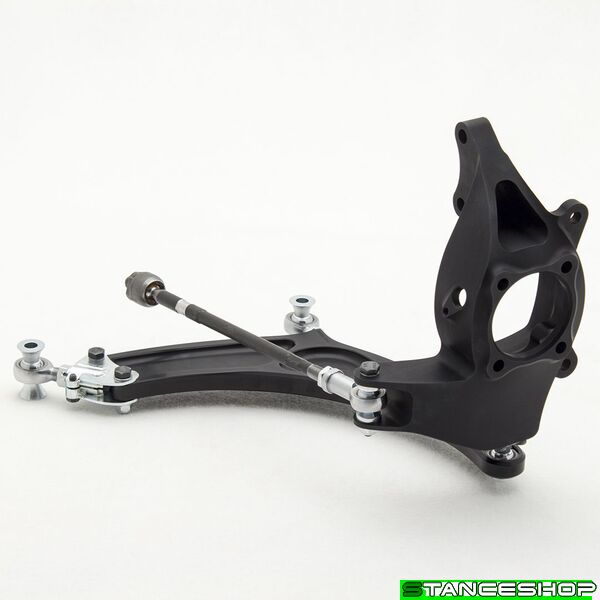

Mitsubishi EVO 7 8 9 Front Suspension Drop Knuckle Kit
- -15 kg of combined weight saving over original components
But still maintaining required strength and stiffness - 7075-T6 aluminium billet CNC knuckles and arms
With optimized double shear design that provides low weight and high strenght - CrMo rod ends and sphericals used instead of OEM style bushings
- Quicker steering ratio
Steering ratio is slightly quicker compared to OEM - Separate camber, caster adjustments
The kit comes with camberplates that have separate camber and caster adjustment. Initially the caster is set to 4,7 degrees - The standard 17“ or bigger wheel can be used
If standard wheels are used, then there are no modifications needed to the chassis. If the wheels are wider to outside, then wider front fenders will be needed - Mounting points for both EVO 7, 8 9, or 10 brake calipers
- EVO CV joints are known to be very good to handle big power
If power and grip exeeds their limits, then the uprights have room for bigger CV joints if needed

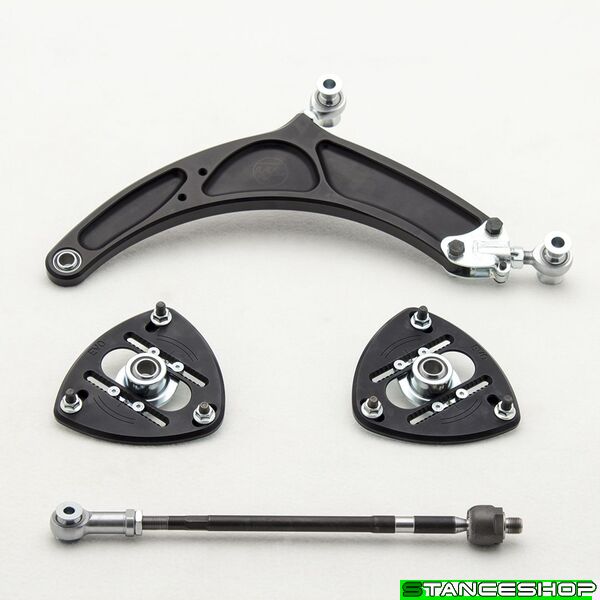

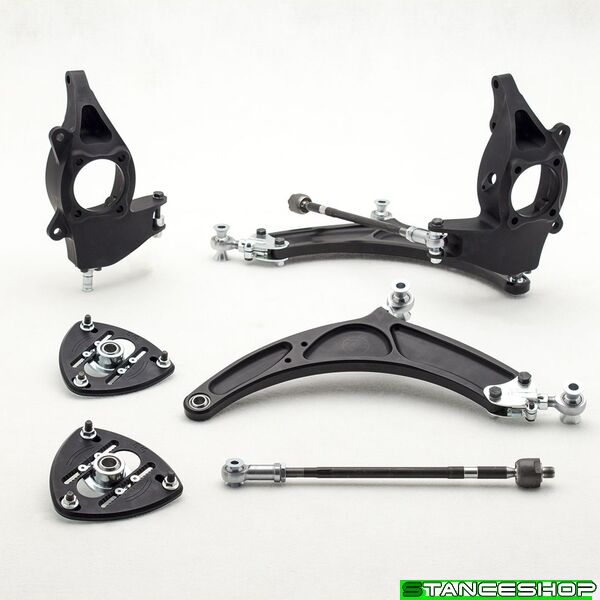

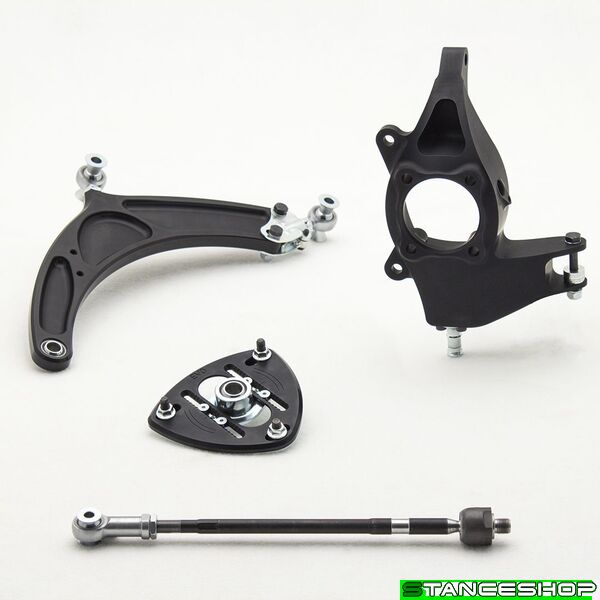

Kit includes:
- Adjustable camber and caster top mounts
- Knuckles with hardware
- Lower control arms
- Assembled tie rods
- Installation guide
Other information:
- This kit assumes coilovers
- Minimum rim size is 17“
- Original wheel speed sensor can be used
Complete parts
3
Tie Rod Assembly
WFE82_600A
100.00€
4
Top mount
WFE82_500A
140.00€
5
Adjustment Sticker
A_KL_EVO
6.00€

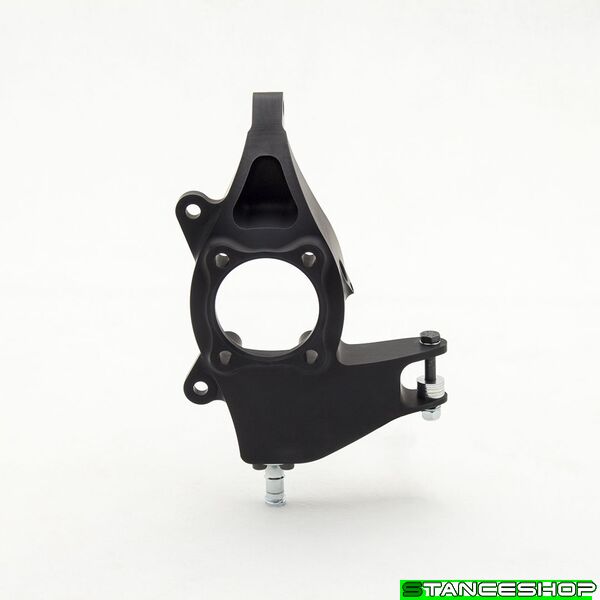

Left Knuckle
1
Knuckle
2
Single Share Mount ID10 OD16
WF700_902
25.00€
3
Bolt Allen M 8x1.25x 16 RH 12.9 ST DIN 912
B01208125016R4SD912
1.50€
4
Bolt Allen M10x1.50x 62.5 RH 12.9 ZN SPC
WF700_901
21.00€
5
Bolt Hex M10x1.5x 70 RH 10.9 ST DIN 931
B01110150070R3SD931
2.80€
6
Washer ID10 OD24.5 h 1
WF861_111
6.30€
7
Washer ID10 OD24.5 h 2
WF861_112
6.30€
8
Washer ID10 OD24.5 h 3
WF861_113
6.30€
9
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
10
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
Right Knuckle
1
Knuckle
2
Single Share Mount ID10 OD16
WF700_902
25.00€
3
Bolt Allen M 8x1.25x 16 RH 12.9 ST DIN 912
B01208125016R4SD912
1.50€
4
Bolt Allen M10x1.50x 62.5 RH 12.9 ZN SPC
WF700_901
21.00€
5
Bolt Hex M10x1.5x 70 RH 10.9 ST DIN 931
B01110150070R3SD931
2.80€
6
Washer ID10 OD24.5 h 1
WF861_111
6.30€
7
Washer ID10 OD24.5 h 2
WF861_112
6.30€
8
Washer ID10 OD24.5 h 3
WF861_113
6.30€
9
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
10
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€

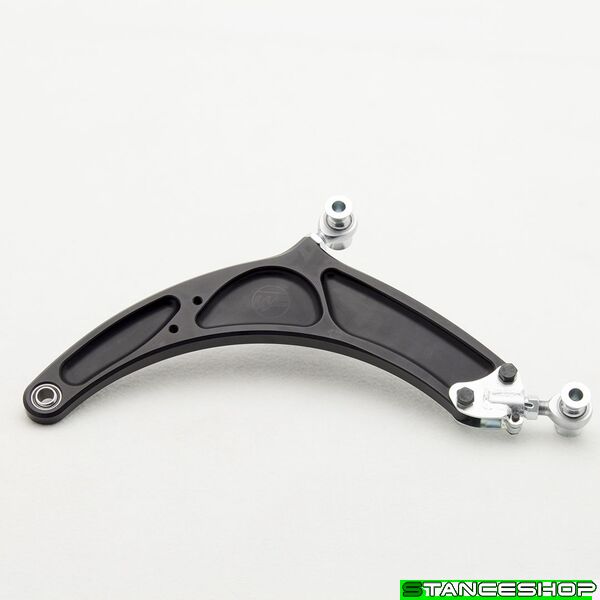

Left Lower Control Arm
1
Lower Control Arm
2
Spacer ID14 OD16 h19
WF180_910
8.40€
3
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
4
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
5
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
6
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
7
Lower Control Arm Rear Fixing
Right Lower Control Arm
1
Lower Control Arm
2
Spacer ID14 OD16 h19
WF180_910
8.40€
3
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
4
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
5
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
6
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
7
Lower Control Arm Rear Fixing
Tie Rod Assembly
1
Tie Rod Assembly
WFE82_600A
100.00€
2
Tie Rod Inner M14x1.5 M16x1.5 L360
STIEROD_M16_M14_L360
21.00€
3
Spacer ID10 OD14 h 5.4
WF080_921
7.30€
4
Rod end 14x1.5 RH female CrMo
SRODEND14X1.5 RH F
26.00€
Top mount
1
Top mount
WFE82_500A
140.00€
2
Nut Hex Flange M10x1.5 RH 8.8 ZN
B02510150R2ZD69238
2.80€
3
Bolt AllenFlat M 6x1.0x 10 RH 8.8 ZN DIN7991
B01306100010R2ZD7991
1.50€
4
Top mount Underside Plate
WFE82_502
7.30€
5
Camber Plate Spherical Housing
WFE82_901A
55.00€
6
Bolt Hex M10x1.5x 25 RH 10.9 ST DIN 933
B01110150025R3SD933
1.50€
7
Bolt Hex M10x1.5x 20 RH 10.9 ST DIN 933
B01110150020R3SD933
1.50€
8
Bolt AllenButton M 4x0.7x 6 RH 8.8 ZN ISO7380
B01404070006R2ZI7380
1.50€
Image currently unavailable
Adjustment Sticker
1
Adjustment Sticker
A_KL_EVO
6.00€
