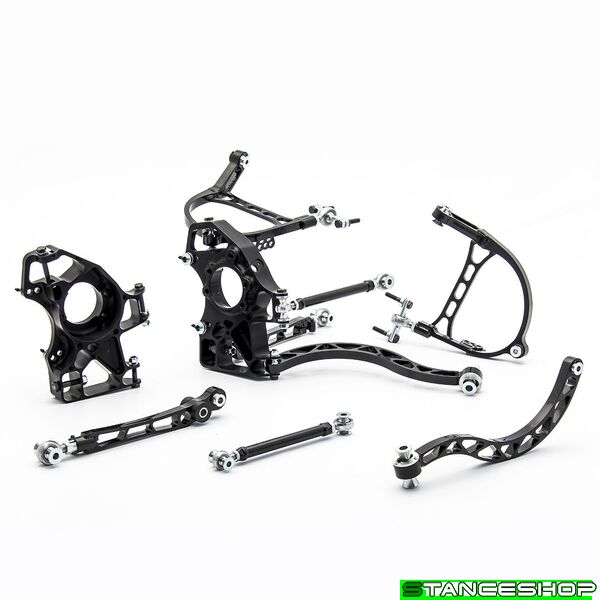

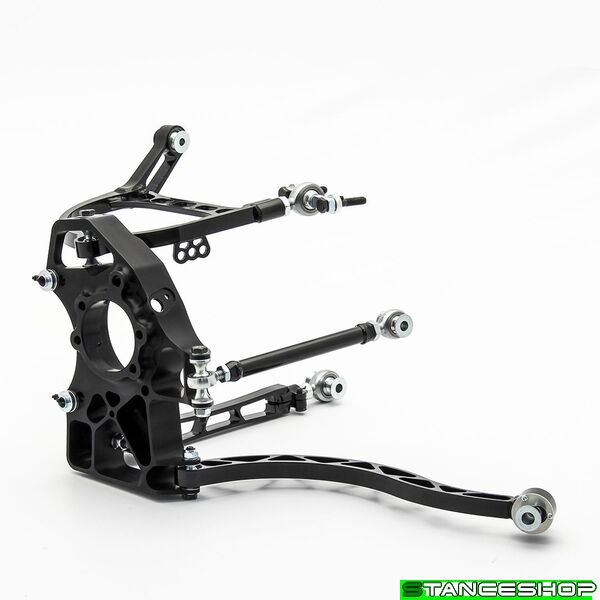

Mitsubishi EVO 7 8 9 Rear Suspension Drop Knuckle Kit
- Minus 15 kg of total front and rear weight over original components and still maintaining required strength and stiffness.
- 7075-T6 aluminium billet CNC knuckles and with optimized design
and all double shear connections provide low weight and high strenght. - All the rear links and arms are made of high strength steel.
CrMo rod ends and sphericals used instead of rubber bushings. - Camber and bumpsteer adjustments.

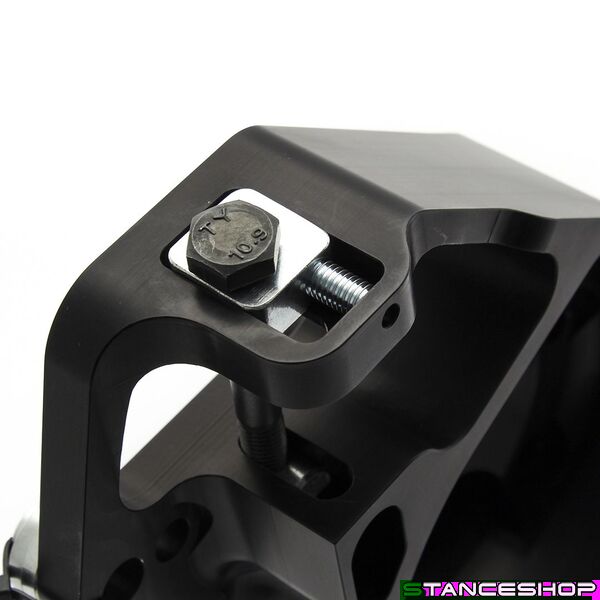

Rear Camber adjustment is buit into the upright and it is very easy to use at the trackside.
Also possibility to adjust bumpsteer at the upright. - The standard 17“ or bigger wheel can be used.
If standard wheels are used, then there are no modifications needed for bodywork. If the wheels are wider to outside, then some bodywork should be done to have enough wheel clearance for bump travel. - Brakes can be used from EVO 7, 8, 9, or 10.
There are 2 caliper attachment possibilities for rear. - EVO CV joints are known to be very good to handle big power,
but for any case if power and grip exeed their limits, then uprights have room for bigger CV joint if needed. - Adjustable antiroll bar (swaybar) motion ratio.
There are 3 possibilities for antiroll bar drop link attachments.
Changing antiroll bar motion ratio is quick and easy way to tune your car understeer/oversteer
Kit includes:
- Pre-set suspension links.
- Knuckles with hardware.
- Installation guide
Other components, packaging and clearance.
- This kit assumes coilovers.
- Minimum rim size is 17“.
- Original wheel speed sensor can be used.
Complete parts
2
Suspension Arm #2
WFE81_200A
255.00€
3
Suspension Arm #3
WFE81_300A
255.00€
5
Suspension Arm #5
WFE81_500A
175.00€

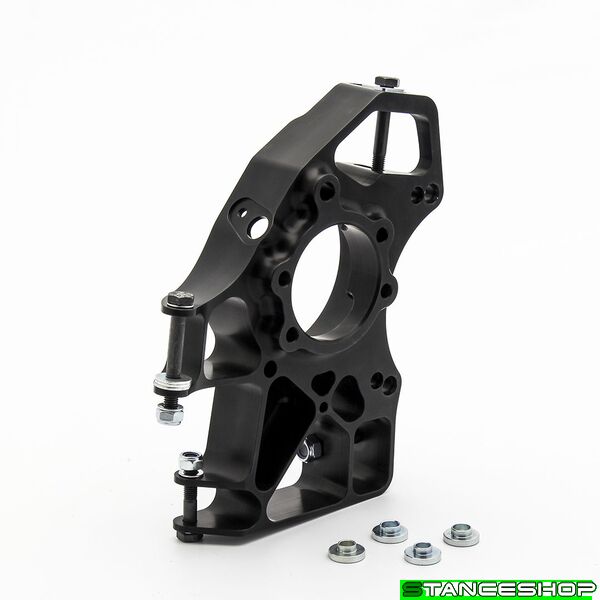

Left Knuckle
1
Knuckle
2
Bolt Hex M12x1.5x 60 RH 10.9 ST DIN 960
B01112150060R3SD960
4.20€
3
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
4
Bolt Hex M10x1.5x 55 RH 10.9 ST DIN 931
B01110150055R3SD931
2.80€
5
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
6
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
7
Washer ID10 OD24.5 h 1
WF861_111
6.30€
8
Washer ID10 OD24.5 h 2
WF861_112
6.30€
9
Bolt Hex M10x1.5x 80 RH 10.9 ST DIN 931
B01110150080R3SD931
4.20€
10
Camber Adjustment Plate
WF700_911
13.00€
11
Bolt SetScrew M 8x1.25x 39.6 RH 10.9 ZN SPC
WFS22_905
8.40€
12
Nut Special M10x1.50 RH ZN Cylindrical
WFE81_907
13.00€
13
BushingT ID10.5 OD13 h10 Step
WFE81_901
7.30€
14
BushingT ID12.5 OD15 h10 Step
WFE81_902
7.30€
Right Knuckle
1
Knuckle
2
Bolt Hex M12x1.5x 60 RH 10.9 ST DIN 960
B01112150060R3SD960
4.20€
3
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
4
Bolt Hex M10x1.5x 55 RH 10.9 ST DIN 931
B01110150055R3SD931
2.80€
5
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
6
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
7
Washer ID10 OD24.5 h 1
WF861_111
6.30€
8
Washer ID10 OD24.5 h 2
WF861_112
6.30€
9
Bolt Hex M10x1.5x 80 RH 10.9 ST DIN 931
B01110150080R3SD931
4.20€
10
Camber Adjustment Plate
WF700_911
13.00€
11
Bolt SetScrew M 8x1.25x 39.6 RH 10.9 ZN SPC
WFS22_905
8.40€
12
Nut Special M10x1.50 RH ZN Cylindrical
WFE81_907
13.00€
13
BushingT ID10.5 OD13 h10 Step
WFE81_901
7.30€
14
BushingT ID12.5 OD15 h10 Step
WFE81_902
7.30€

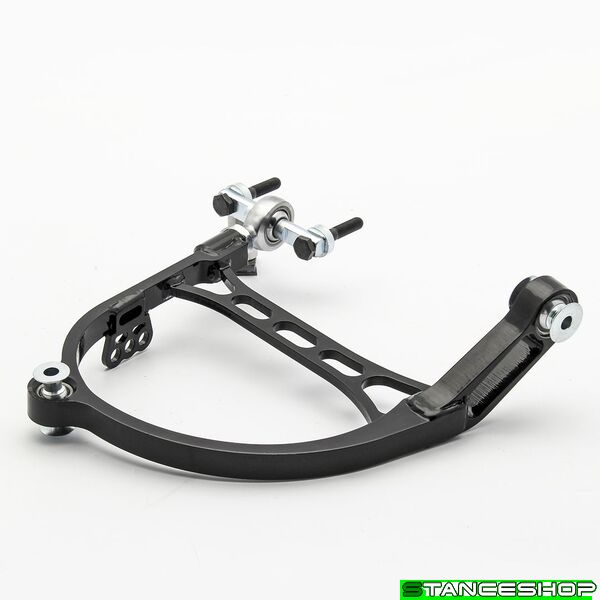

Suspension Arm #2
1
Suspension Arm #2
WFE81_200A
255.00€
2
Spacer ID12 OD16 h14.5
WF113_913
8.40€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
Double Adjuster Female/Male M16x1.5 M22x1.5
WF700_906
15.00€
5
Bolt Hex M 8x1.25x 25 RH 12.9 ST DIN 933
B01108125025R4SD933
1.50€
6
BushingPOM ID20 OD24/39 h24.5
WF180_904
8.40€
7
BushingT ID14 OD20 h50
WF180_902
8.40€
8
Spacer ID12 OD16 h 8.5
WF351_904
7.30€
9
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
10
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
Suspension Arm #3
1
Suspension Arm #3
WFE81_300A
255.00€
2
Spacer ID10 OD12 h 7
WF862_902
7.30€
3
C-Clip InternalSTD d26 ST DIN472
B04126SD472
1.50€
4
Spherical ID12/OD26
SSPHERICAL 12/26
23.00€
5
Spacer ID14 OD16 h24.5
WFE81_904
8.40€
6
Bolt AllenButton M 4x0.7x 10 RH 8.8 ZN ISO7380
B01404070010R2ZI7380
1.50€
7
Arm #3 Angle Limiter
WFE81_302
6.30€
8
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
9
Spherical ID16/OD32

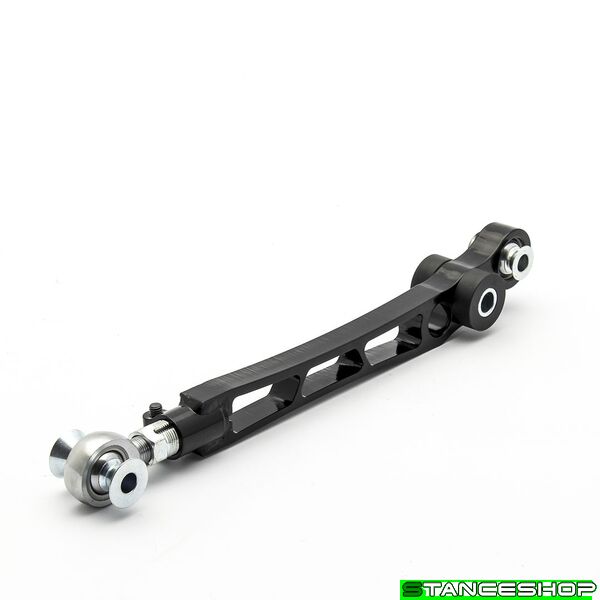

Left Suspension Arm #4
1
Suspension Arm #4
2
Spacer ID10 OD16 h 9.5
WFE81_908
8.40€
3
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
4
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
5
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
6
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
7
BushingT ID10.5 OD24 h 8
WFE81_405
6.30€
8
Arm #4 Body Mount
WFE81_906
37.00€
9
Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
10
Bolt Hex M10x1.25x 50 RH 10.9 ST DIN 961
B01110125050R3SD961
5.20€
11
Spacer ID10 OD12 h14
WF080_906
8.40€
12
C-Clip InternalSTD d26 ST DIN472
B04126SD472
1.50€
13
Spherical ID12/OD26
SSPHERICAL 12/26
23.00€
Right Suspension Arm #4
1
Suspension Arm #4
2
Spacer ID10 OD16 h 9.5
WFE81_908
8.40€
3
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
4
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
5
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
6
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
7
BushingT ID10.5 OD24 h 8
WFE81_405
6.30€
8
Arm #4 Body Mount
WFE81_906
37.00€
9
Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
10
Bolt Hex M10x1.25x 50 RH 10.9 ST DIN 961
B01110125050R3SD961
5.20€
11
Spacer ID10 OD12 h14
WF080_906
8.40€
12
C-Clip InternalSTD d26 ST DIN472
B04126SD472
1.50€
13
Spherical ID12/OD26
SSPHERICAL 12/26
23.00€
Suspension Arm #5
1
Suspension Arm #5
WFE81_500A
175.00€
2
Spacer ID12 OD14 h 8.5
WF180_901
8.40€
3
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
21.00€
4
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
5
Nut Thin M12x1.5 RH 8.8 ZN DIN936/439
B02312150R2ZD936/439
2.80€
6
Spacer ID10 OD12 h14
WF080_906
8.40€
7
Rod end 12x1.5 RH male CrMo
SRODEND12X1.5 RH M
21.00€
