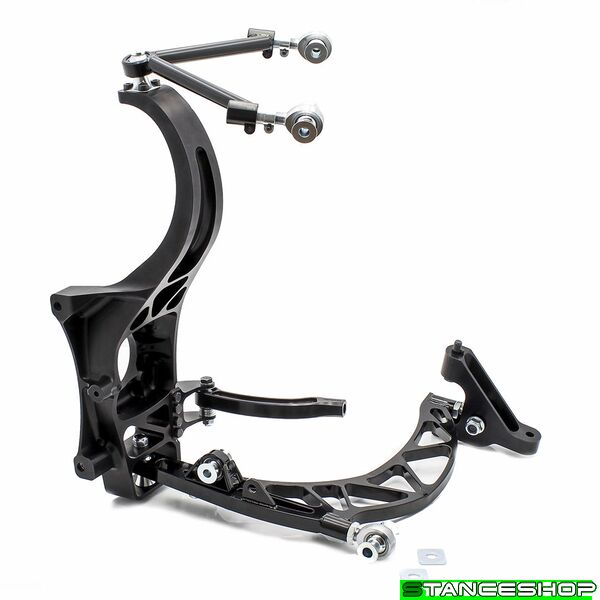

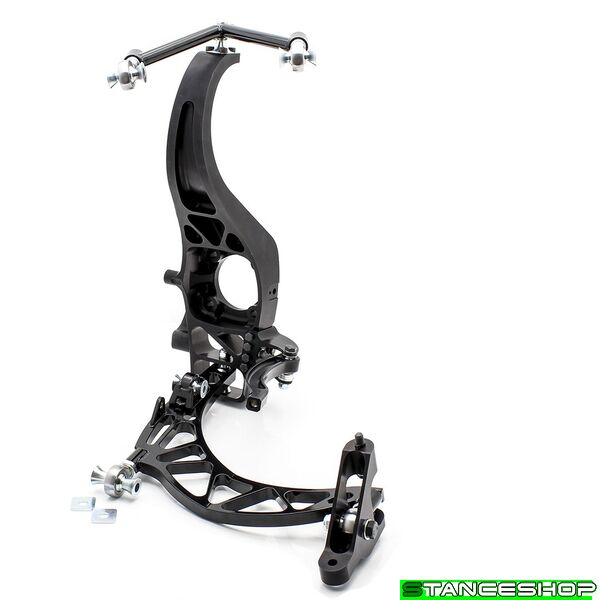

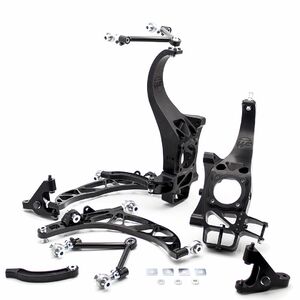

Nissan R35 GT-R Front Suspension Drop Knuckle Kit
- Higher roll center (RC)
Our Nissan GT-R front kit brings the RC, bump steer and camber curve into normal range, provides better roll stiffness, handling and grip on a lowered car - Dual kinematics setup
Uprights have two attachment points. One is for lowered rideheight with standard 710mm (28“) diameter wheels and second set of points is for either small wheels (that are required by some series rules) with lowered rideheight or for standard wheel with standard ride height. - Adjustable shock motion ratio
Shock motion ratio can be adjusted by changing the shocks position on the arm. It can be done quickly and has the effect of changing the springrate. This means that understeer or oversteer can be removed within a few minutes - CrMo rod ends and sphericals used instead of OEM style bushings
- Quicker steering ratio
Steering ratio is slightly quicker compared to OEM. - Easy camber and caster adjustments

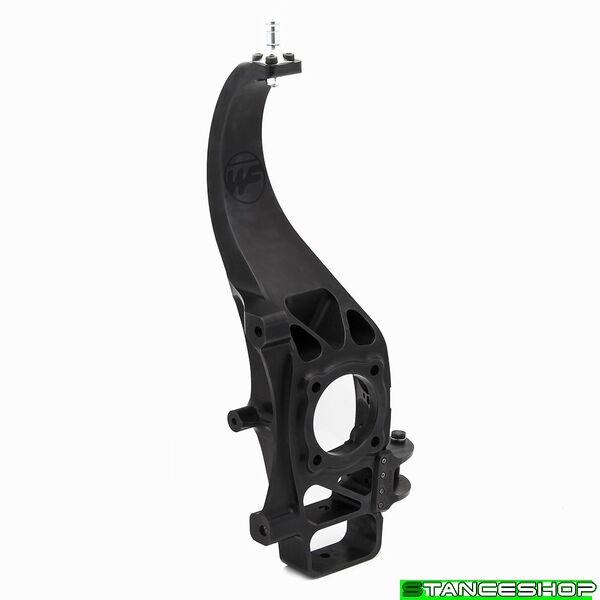

- 7075-T6 aluminium billet CNC knuckles
With optimized double shear design that provides low weight and high strenght - Designed for bigger CV joints
Nissan GT-R R35 CV joints are good to handle big power, but for any case if the power and grip exceed their limits, then the uprights have room for bigger CV joints if needed

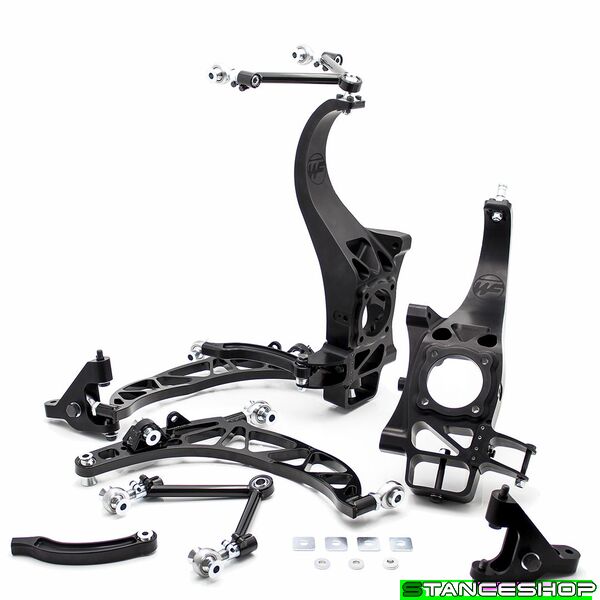

Kit includes:
- Pre-set upper and lower arms
- Knuckles with hardware
- Rearward mounting bracket
- Assembeled tie rods
- Installation guide
Other information
- This kit assumes coilovers
- Original wheel speed sensor can be used
Complete parts
3
Upper Control Arm
WF452_300A
335.00€
4
Tie Rod Assembly
WF452_600A
160.00€
5
Knuckle Steering Arm
WF452_102A
190.00€
6
Lower Control Arm Mount
WF452_210A
215.00€
7
Adjustment Sticker
A_KL_GT-R
6.00€
Left Knuckle
1
Knuckle
2
Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960
B01112150080R3SD960
6.30€
3
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
4
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
5
Single Share Mount ID10 OD16
WF700_902
25.00€
7
Bolt Allen M 8x1.25x 16 RH 12.9 ST DIN 912
B01208125016R4SD912
1.50€
8
Bolt Hex M 8x1.25x 25 RH 12.9 ST DIN 933
B01108125025R4SD933
1.50€
Right Knuckle
1
Knuckle
2
Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960
B01112150080R3SD960
6.30€
3
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
4
Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8
B02212150R2ZD9858
1.50€
5
Single Share Mount ID10 OD16
WF700_902
25.00€
7
Bolt Allen M 8x1.25x 16 RH 12.9 ST DIN 912
B01208125016R4SD912
1.50€
8
Bolt Hex M 8x1.25x 25 RH 12.9 ST DIN 933
B01108125025R4SD933
1.50€

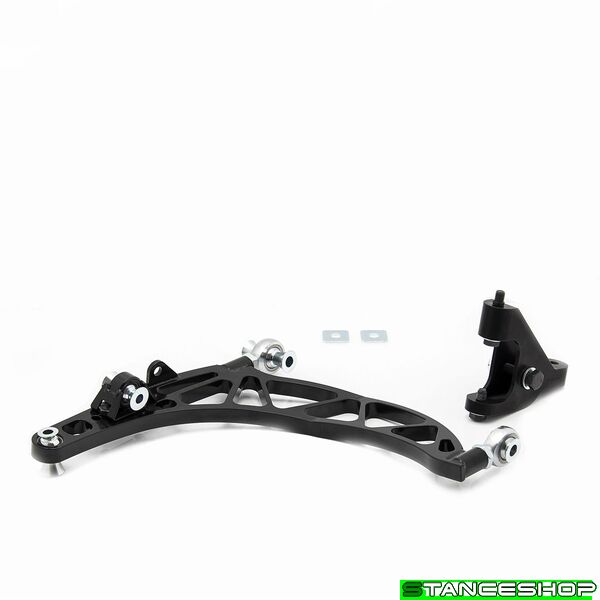

Left Lower Control Arm
1
Lower Control Arm
2
Spacer ID14 OD18 h 3.5
WF370_908
7.30€
3
Rod end 18x1.5 RH male CrMo
SRODEND18X1.5 RH M
31.00€
5
WasherT 35x35x3
WF452_203
7.30€
6
Spacer ID14 OD18 h23.5
WF370_907
8.40€
7
Bolt Allen M10x1.5x 25 RH 12.9 ST DIN 912
B01210150025R4SD912
1.50€
9
Bolt Allen M 8x1.25x 20 RH 12.9 ST DIN 912
B01208125020R4SD912
1.50€
10
Spacer ID12 OD16 h11.9
WF113_903
8.40€
11
Spacer ID12 OD16 h22
WF221_901
8.40€
12
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
13
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
14
Spacer ID12 OD16 h 8.5
WF351_904
7.30€
15
Lower Control Arm Mount
WF452_220A
205.00€
Right Lower Control Arm
1
Lower Control Arm
2
Spacer ID14 OD18 h 3.5
WF370_908
7.30€
3
Rod end 18x1.5 RH male CrMo
SRODEND18X1.5 RH M
31.00€
5
WasherT 35x35x3
WF452_203
7.30€
6
Spacer ID14 OD18 h23.5
WF370_907
8.40€
7
Bolt Allen M10x1.5x 25 RH 12.9 ST DIN 912
B01210150025R4SD912
1.50€
9
Bolt Allen M 8x1.25x 20 RH 12.9 ST DIN 912
B01208125020R4SD912
1.50€
10
Spacer ID12 OD16 h11.9
WF113_903
8.40€
11
Spacer ID12 OD16 h22
WF221_901
8.40€
12
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
13
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
14
Spacer ID12 OD16 h 8.5
WF351_904
7.30€
15
Lower Control Arm Mount
WF452_220A
205.00€

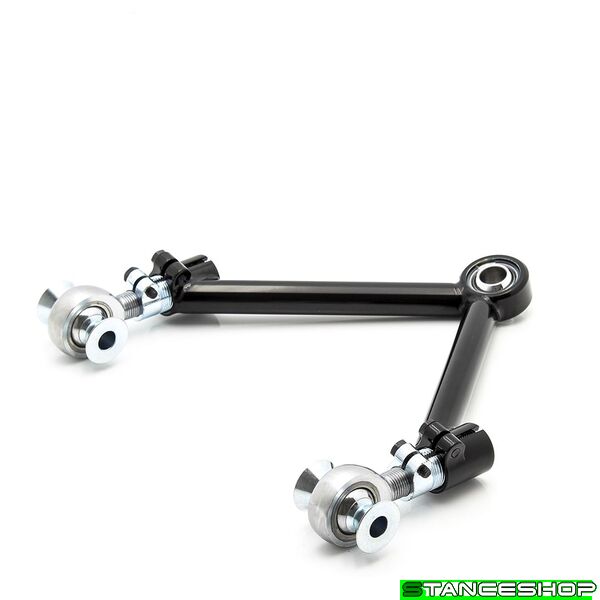

Upper Control Arm
1
Upper Control Arm
WF452_300A
335.00€
2
Spacer ID12 OD16 h14.5
WF113_913
8.40€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
6
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
7
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
8
Bolt Allen M 8x1.25x 20 RH 12.9 ST DIN 912
B01208125020R4SD912
1.50€
Tie Rod Assembly
1
Tie Rod Assembly
WF452_600A
160.00€
2
Washer Hydraulic 3/4in x2 ZN
B03600304IN20Z
6.30€
3
Spacer ID10 OD12 h 7
WF862_902
7.30€
4
C-Clip InternalSTD d26 ST DIN472
B04126SD472
1.50€
5
Spherical ID12/OD26
SSPHERICAL 12/26
23.00€
Knuckle Steering Arm
1
Knuckle Steering Arm
WF452_102A
190.00€
2
Bolt Hex M 8x1.25x 60 RH 10.9 ZN DIN 931
B01108125060R3ZD931
1.50€
3
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
4
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
5
Bolt Hex M10x1.5x 65 RH 10.9 ST DIN 931
B01110150065R3SD931
2.80€
6
Washer ID10 OD24.5 h 1
WF861_111
6.30€
7
Washer ID10 OD24.5 h 2
WF861_112
6.30€
8
Washer ID10 OD24.5 h 3
WF861_113
6.30€
Lower Control Arm Mount
1
Lower Control Arm Mount
WF452_210A
215.00€
2
Bolt Hex M12x1.5x 25 RH 10.9 ST DIN 961
B01112150020R3SD961
0.00€
3
Washer Flat M12 ZN DIN125
B03112NAZD125
1.50€
4
Bolt Hex M12x1.25x 60 RH 10.9 ST DIN 960
B01112125060R3SD960
6.30€
5
Bolt Hex M14x1.5x 60 RH 10.9 ST DIN 960
B01114150060R3SD960
4.20€
6
Washer Flat M14 ZN DIN125
B03114NAZD125
1.50€
7
Nut Nylock M14x1.5 RH 8.8 ZN DIN985-8
B02214150R2ZD9858
1.50€
Image currently unavailable
Adjustment Sticker
1
Adjustment Sticker
A_KL_GT-R
6.00€
