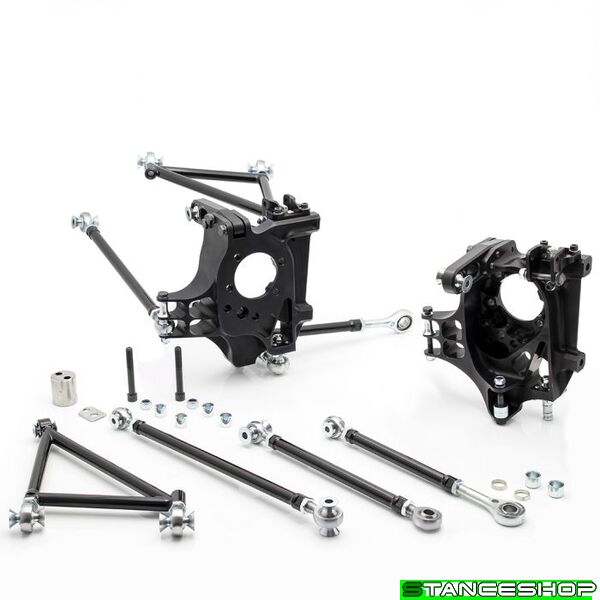

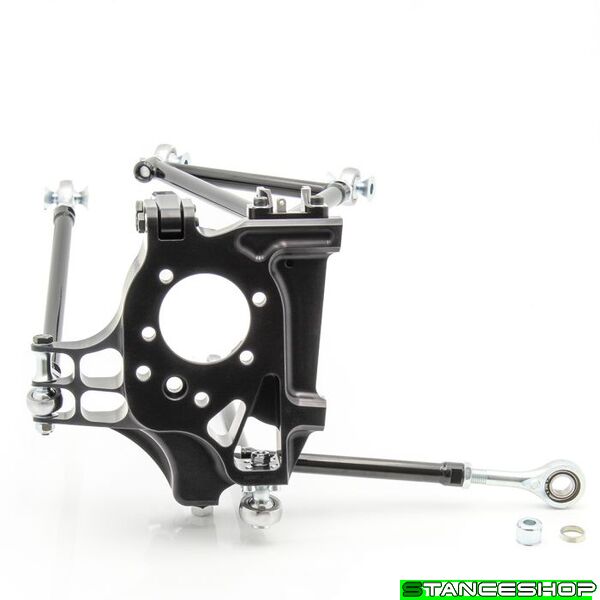

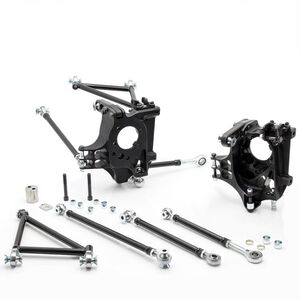

Nissan R35 GT-R Rear Suspension Drop Knuckle Kit
- Higher roll center (RC)
Our Nissan GT-R front kit brings the RC, bump steer and camber curve into normal range, provides better roll stiffness, handling and grip on a lowered car - Dual kinematics setup
Uprights have two attachment points. One is for lowered rideheight with standard 710mm (28“) diameter wheels and second set of points is for either small wheels (that are required by some series rules) with lowered rideheight or for standard wheel with standard ride height. - 7075-T6 aluminium billet CNC knuckles
With optimized double shear design that provides low weight and high strenght - CrMo rod ends and sphericals used instead of OEM style bushings
- Easy camber adjustment
- Designed for bigger CV joints
Nissan GT-R R35 CV joints are good to handle big power, but for any case if the power and grip exceed their limits, then the uprights have room for bigger CV joints if needed
Kit includes:

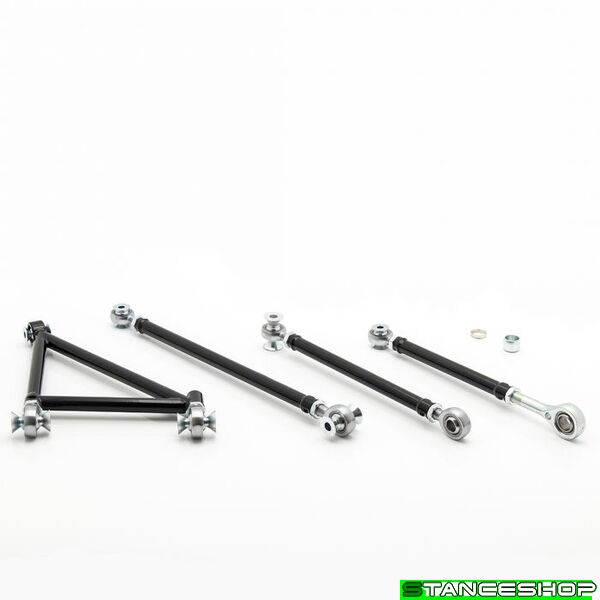

- Pre-set suspension links
- Knuckles with hardware
- Pick-up point relocating kit
- Installation guide
Other information:
- This kit assumes coilovers
- Original wheel speed sensor can be used
Complete parts
2
Suspension Arm #2
WF451_200A
175.00€
3
Suspension Arm #3
WF451_300A
310.00€
4
Suspension Arm #4
WF451_400A
255.00€
5
Suspension Arm #5
WF451_500A
175.00€
6
Knuckle Clevis
WF451_102A
235.00€
7
Knuckle Damper Mount
WF451_103A
165.00€
8
Pick-Up Point Relocating Kit
WF451_700A
70.00€

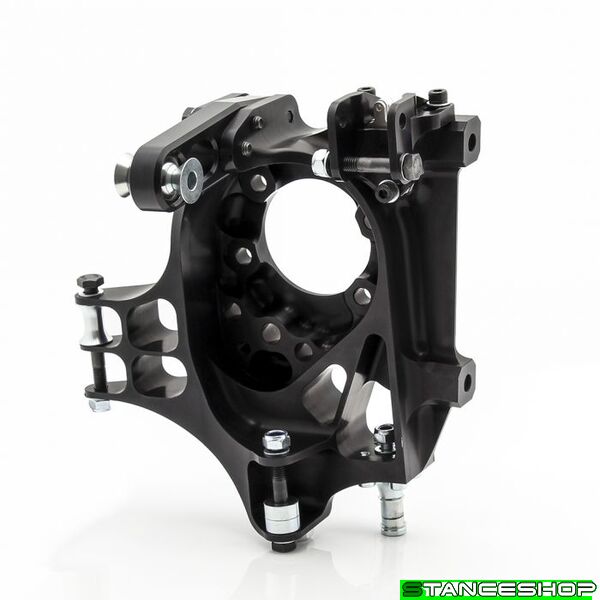

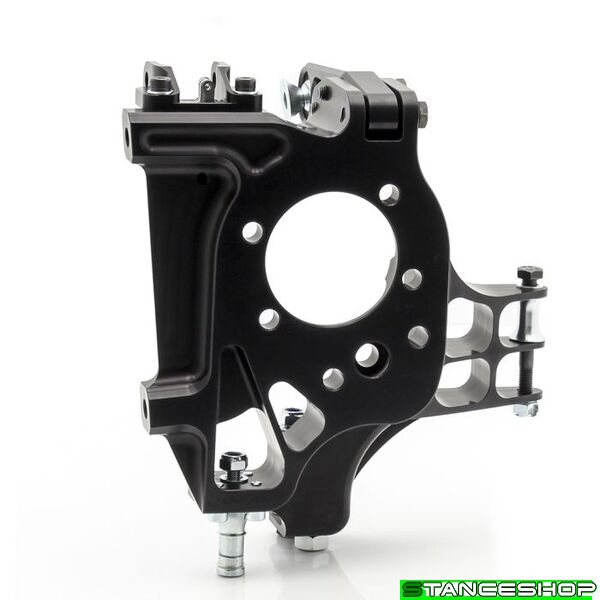

Left Knuckle
1
Knuckle
2
Bolt Allen M 8x1.25x 30 RH 12.9 ST DIN 912
B01208125030R4SD912
1.50€
3
Washer Flat M 8 ZN DIN125
B03108NAZD125
1.50€
4
Camber Adjustment Shim 1mm
WF451_111
6.30€
5
Camber Adjustment Shim 2mm
WF451_112
6.30€
6
Camber Adjustment Shim 3mm
WF451_113
6.30€
7
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
8
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
9
BushingT ID10.5 OD24 h30
WF451_901
11.00€
10
Bolt Hex M10x1.5x 90 RH 10.9 ST DIN 931
B01110150090R3SD931
4.20€
11
Bolt Hex M10x1.5x 50 RH 10.9 ST DIN 931
B01110150050R3SD931
2.80€
12
Bolt Hex M10x1.5x 45 RH 10.9 ST DIN 931
B01110150045R3SD931
2.80€
13
Bolt Hex M10x1.5x 75 RH 10.9 ST DIN 931
B01110150075R3SD931
2.80€
14
BushingT ID10 OD24 h10
WF901_905
7.30€
15
Bolt Allen M 8x1.25x 20 RH 12.9 ST DIN 912
B01208125020R4SD912
1.50€
16
Single Share Mount ID10 OD16
WF700_902
25.00€
17
Bolt Allen M10x1.50x 62.5 RH 12.9 ZN SPC
WF700_901
21.00€
18
Bolt Allen M 8x1.25x 16 RH 12.9 ST DIN 912
B01208125016R4SD912
1.50€
Right Knuckle
1
Knuckle
2
Bolt Allen M 8x1.25x 30 RH 12.9 ST DIN 912
B01208125030R4SD912
1.50€
3
Washer Flat M 8 ZN DIN125
B03108NAZD125
1.50€
4
Camber Adjustment Shim 1mm
WF451_111
6.30€
5
Camber Adjustment Shim 2mm
WF451_112
6.30€
6
Camber Adjustment Shim 3mm
WF451_113
6.30€
7
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
8
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
9
BushingT ID10.5 OD24 h30
WF451_901
11.00€
10
Bolt Hex M10x1.5x 90 RH 10.9 ST DIN 931
B01110150090R3SD931
4.20€
11
Bolt Hex M10x1.5x 50 RH 10.9 ST DIN 931
B01110150050R3SD931
2.80€
12
Bolt Hex M10x1.5x 45 RH 10.9 ST DIN 931
B01110150045R3SD931
2.80€
13
Bolt Hex M10x1.5x 75 RH 10.9 ST DIN 931
B01110150075R3SD931
2.80€
14
BushingT ID10 OD24 h10
WF901_905
7.30€
15
Bolt Allen M 8x1.25x 20 RH 12.9 ST DIN 912
B01208125020R4SD912
1.50€
16
Single Share Mount ID10 OD16
WF700_902
25.00€
17
Bolt Allen M10x1.50x 62.5 RH 12.9 ZN SPC
WF700_901
21.00€
18
Bolt Allen M 8x1.25x 16 RH 12.9 ST DIN 912
B01208125016R4SD912
1.50€
Suspension Arm #2
1
Suspension Arm #2
WF451_200A
175.00€
2
Spacer ID12 OD14 h15.5
WF351_902
8.40€
3
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
21.00€
4
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
5
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
6
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
Suspension Arm #3
1
Suspension Arm #3
WF451_300A
310.00€
2
Spacer ID12 OD16 h14.5
WF113_913
8.40€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
5
Spacer ID10 OD12 h10.5
WF113_902
7.30€
6
C-Clip InternalSTD d26 ST DIN472
B04126SD472
1.50€
7
Spherical ID12/OD26
SSPHERICAL 12/26
23.00€
Suspension Arm #4
1
Suspension Arm #4
WF451_400A
255.00€
2
ID20 OD35 Spherical Bearing Housing Washer
WF700_909
7.30€
3
C-Clip InternalSTD d35 ST DIN472
B04135SD472
1.50€
4
Spherical ID20/OD35
SSPHERICAL 20/35
21.00€
5
ID20 OD35 Spherical Bearing Housing M16x1.5
WF700_907
70.00€
6
ID20 OD35 Spherical Bearing Housing Spacer
WF700_908
10.00€
7
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
8
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
9
Spacer ID10 OD14 h 5.4
WF080_921
7.30€
10
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
21.00€
Suspension Arm #5
1
Suspension Arm #5
WF451_500A
175.00€
2
Spacer ID10 OD14 h 5.4
WF080_921
7.30€
3
Rod end 14x1.5 LH male CrMo
SRODEND14X1.5 LH M
21.00€
4
Nut Thin M14x1.5 LH 8.8 ZN DIN936/439
B02314150L2ZD936/439
2.80€
5
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
6
Spacer ID12 OD16 h14.5
WF113_913
8.40€
7
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
Knuckle Clevis
1
Knuckle Clevis
WF451_102A
235.00€
2
Bolt Hex M10x1.5x 65 RH 10.9 ST DIN 931
B01110150065R3SD931
2.80€
3
Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
4
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
Knuckle Damper Mount
1
Knuckle Damper Mount
WF451_103A
165.00€
2
Spacer ID12 OD16 h14.5
WF113_913
8.40€
3
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
4
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€

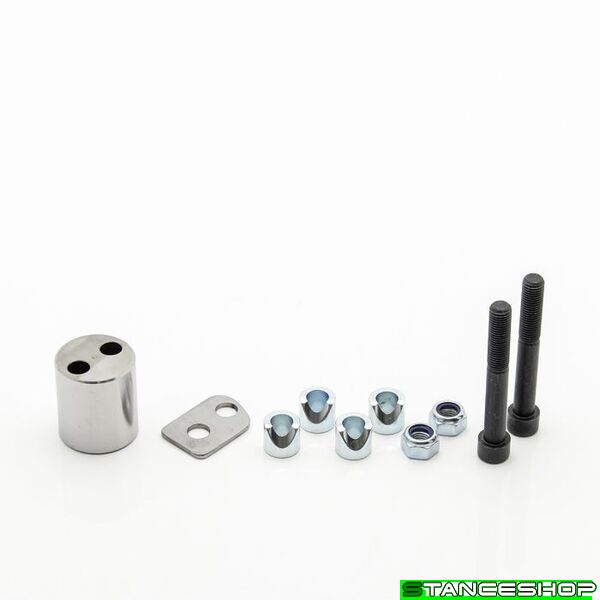

Pick-Up Point Relocating Kit
1
Pick-Up Point Relocating Kit
WF451_700A
70.00€
