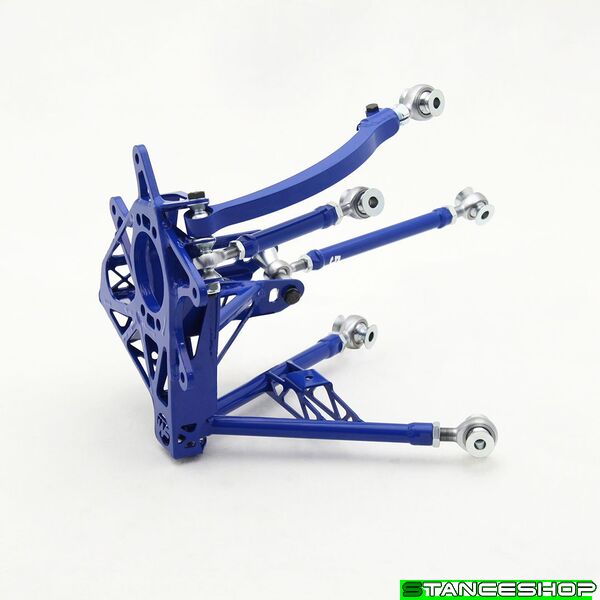

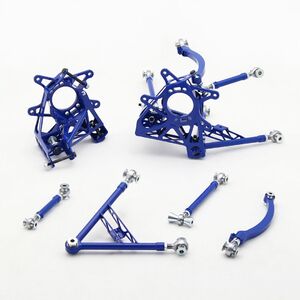

Nissan S13 Rear Suspension Drop Knuckle Kit

• Revised kinematics, not just dropped knuckle.
  If maximum grip is the keyword and combination of good roll centre position, camber gain, antisquat and bumpsteer are required, then dropped knuckle is not good enough. That is the reason why we totally revised the kinematics.
• Light weight and strong.
  More than 10kg of weight reduction over original components and still maintaining required strenght and stiffness.
• CrMo³ rod ends and sphericals.
• Bump steer adjustment.
  Possibility to adjust bump steer by changing rod end location in a slot.

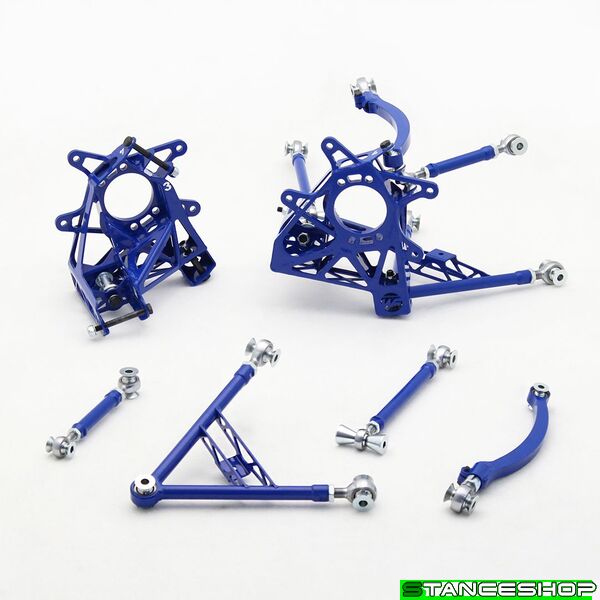

Kit includes:

• Pre-set suspension links.
• Knuckles with hardware.
• Installation guide.

Other components.

• Hub to hub length (track) is the same as original, as this is defined by halfshaft lengths.
• This kit assumes coilovers to adjust ride height.
• Minimum rim size is 17“

Kit includes:

• Pre-set suspension links.
• Knuckles with hardware.
• Installation guide.

Other components.

• Hub to hub length (track) is the same as original, as this is defined by halfshaft lengths.
• This kit assumes coilovers to adjust ride height.
• Minimum rim size is 17“

Complete parts

1



Knuckle

Left

WF113_100LA

355.00€

Right

WF113_100RA

355.00€

2



Suspension Arm #2

Left

WF113_200LA

230.00€

Right

WF113_200RA

230.00€

3



Suspension Arm #3

WF113_300A

145.00€

4



Suspension Arm #4

WF113_410A

200.00€

5



Suspension Arm #5

WF113_500A

145.00€

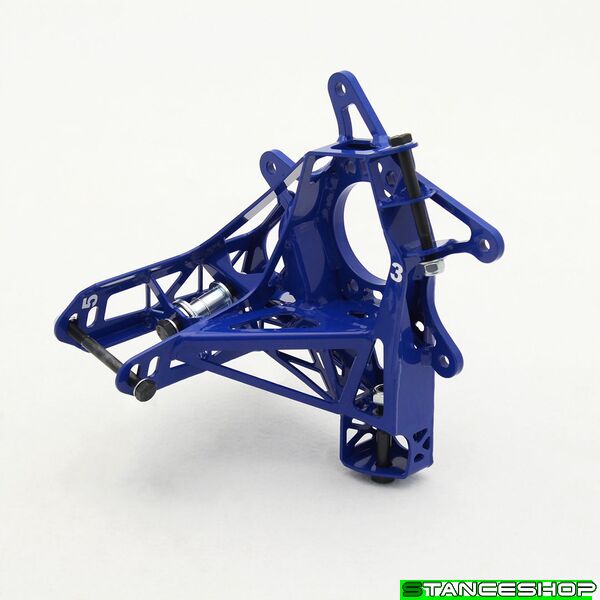

Left Knuckle

1



Knuckle

Left

WF113_100LA

355.00€

2



Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960

B01112150080R3SD960

6.30€

3



Washer FlatSmall M12 ZN DIN433

B03212NAZD433

1.50€

4



Washer ShimRing M20x1 ST DIN988

B0332010SD988

1.50€

5



Washer ShimRing M20x1.5 ST DIN988

B0332015SD988

1.50€

6



Washer Flat M20 ZN DIN125A

B03120NAZD125A

1.50€

7



Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8

B02212150R2ZD9858

1.50€

8



Bolt Hex M10x1.5x100 RH 10.9 ST DIN 931

B01110150100R3SD931

4.20€

9



Washer FlatSmall M10 ZN DIN433

B03210NAZD433

1.50€

10



Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8

B02210150R2ZD9858

1.50€

11



Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960

B01112150070R3SD960

6.30€

12



Spacer ID12 OD19.8 h 3

WF113_906

8.40€

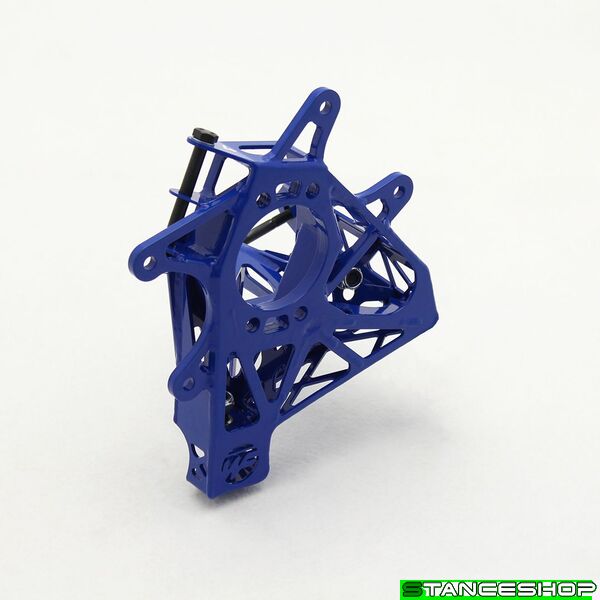

Right Knuckle

1



Knuckle

Right

WF113_100RA

355.00€

2



Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960

B01112150080R3SD960

6.30€

3



Washer FlatSmall M12 ZN DIN433

B03212NAZD433

1.50€

4



Washer ShimRing M20x1 ST DIN988

B0332010SD988

1.50€

5



Washer ShimRing M20x1.5 ST DIN988

B0332015SD988

1.50€

6



Washer Flat M20 ZN DIN125A

B03120NAZD125A

1.50€

7



Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8

B02212150R2ZD9858

1.50€

8



Bolt Hex M10x1.5x100 RH 10.9 ST DIN 931

B01110150100R3SD931

4.20€

9



Washer FlatSmall M10 ZN DIN433

B03210NAZD433

1.50€

10



Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8

B02210150R2ZD9858

1.50€

11



Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960

B01112150070R3SD960

6.30€

12



Spacer ID12 OD19.8 h 3

WF113_906

8.40€

Left Suspension Arm #2

1



Suspension Arm #2

Left

WF113_200LA

230.00€

2



Spacer ID12 OD16 h11.9

WF113_903

8.40€

3



Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

4



Nut Thin M16x1.5 RH 8.8 ZN DIN936/439

B02316150R2ZD936/439

2.80€

5



Spacer ID12 OD16 h10

WF013_903

8.40€

6



Spherical ID16/OD32

SSPHERICAL 16/32

25.00€

7



C-Clip InternalSTD d32 ST DIN472

B04132SD472

1.50€

Right Suspension Arm #2

1



Suspension Arm #2

Right

WF113_200RA

230.00€

2



Spacer ID12 OD16 h11.9

WF113_903

8.40€

3



Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

4



Nut Thin M16x1.5 RH 8.8 ZN DIN936/439

B02316150R2ZD936/439

2.80€

5



Spacer ID12 OD16 h10

WF013_903

8.40€

6



Spherical ID16/OD32

SSPHERICAL 16/32

25.00€

7



C-Clip InternalSTD d32 ST DIN472

B04132SD472

1.50€

Suspension Arm #3

1



Suspension Arm #3

WF113_300A

145.00€

2



Spacer ID12 OD14 h10.5

WF113_901

8.40€

3



Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

4



Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

5



Nut Thin M12x1.5 RH 8.8 ZN DIN936/439

B02312150R2ZD936/439

2.80€

6



Spacer ID10 OD12 h10.5

WF113_902

7.30€

7



Rod end 12x1.5 RH male CrMo

SRODEND12X1.5 RH M

21.00€

Suspension Arm #4

1



Suspension Arm #4

WF113_410A

200.00€

2



Spacer ID12 OD16 h 9.5

WFE81_905

8.40€

3



C-Clip InternalSTD d26 ST DIN472

B04126SD472

1.50€

4



Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

5



Spherical ID12/OD26

SSPHERICAL 12/26

23.00€

6



Spacer ID10 OD12 h10.5

WF113_902

7.30€

7



Double Adjuster Female/Male M16x1.5 M22x1.5

WF700_906

15.00€

8



Bolt Hex M 8x1.25x 25 RH 12.9 ST DIN 933

B01108125025R4SD933

1.50€

Suspension Arm #5

1



Suspension Arm #5

WF113_500A

145.00€

2



Spacer ID12 OD14 h10.5

WF113_901

8.40€

3



Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

4



Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

5



Nut Thin M12x1.5 RH 8.8 ZN DIN936/439

B02312150R2ZD936/439

2.80€

6



Spacer ID10 OD12 h28

WF113_904

8.40€

7



Rod end 12x1.5 RH male CrMo

SRODEND12X1.5 RH M

21.00€
