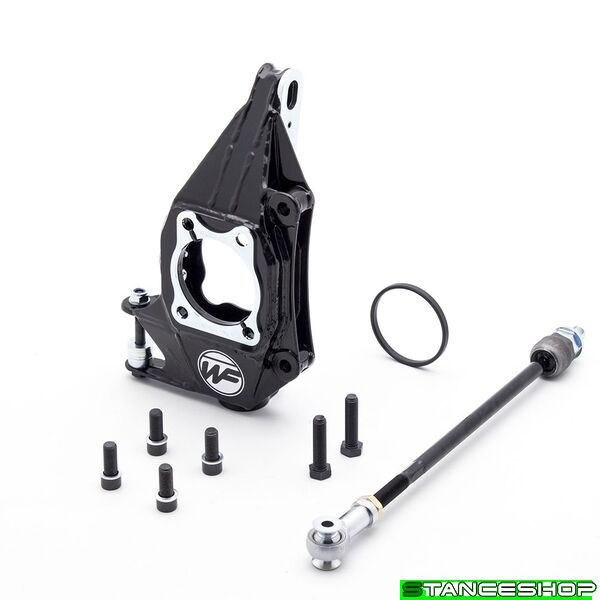

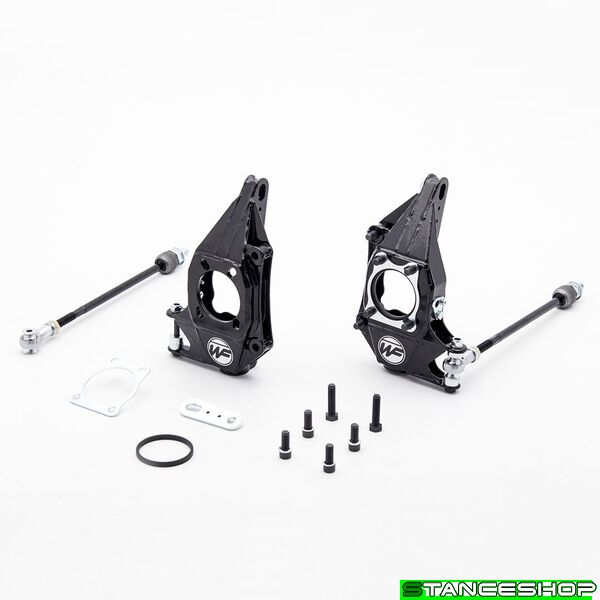

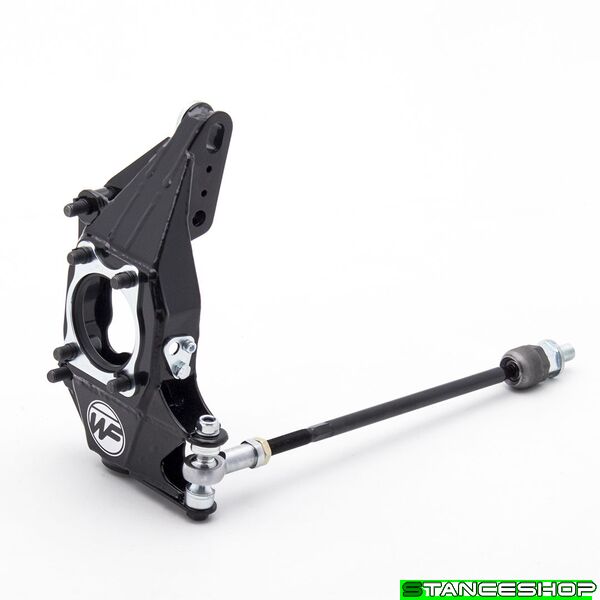

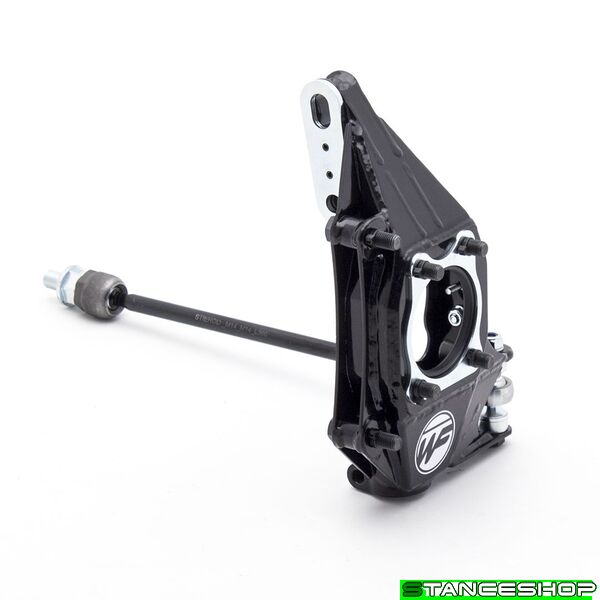

Subaru Impreza Front Drop Knuckle Kit
- This drop knuckle kit can be fitted to following models: Impreza (GM, GC, GF, 1992–2001) (GD, GG, 2000–2007) (GE, GV, GH, GR 2007–2014) (GJ, GP, 2011–2016) (VA, 2014-2020) Forester (SF, 1997–2002) (SG, 2002–2007)
- -2 kg lighter over OEM knuckle / upright
But still maintaining required strength and stiffness - Quicker steering ratio
Steering ratio is slightly quicker compared to OEM - Rollcenter correction
-50mm drop from the knuckle / upright - Mounting points for 5x100 or 5x114,3 wheel bearings
Either 2005 - STI 5x114,3 bolted wheel bearing (28373VA000) or 2007 - 2013 WRX 5x100 bolted wheel bearing (28373FG000) can be used - Bumpsteer adjustment
Bumbsteer is adjusted via washers on the upright - OEM wheel speed sensor
Either 1992 - 2007 or 2008 - 2013 type can be used. Hardware for installing included - CrMo spherical
Rod end used instead of OEM tie rod - STI or WRX shocks
Adaptor to fit either STI or WRX shock included - Pre 2003 and 2015 MY steering rack adaptors
Pre 2003 steering rack M14 inner tie rod applications need part number - WFGD3_620A
2015 MY steering rack M20 inner tie rod applications need part number - WFGD3_610A
Complete parts
2
Tie Rod Assembly
WFGD3_600A
80.00€
Left Knuckle
1
Knuckle
2
CV Spacer
WFGD3_906
42.00€
3
Bolt Allen M12x1.25x 30 RH 12.9 ST DIN 912
B01212125030R4SD912
6.30€
4
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
5
Knuckle Shock Spacer
WFGD3_112
16.00€
6
Pin Spring 6x10 Normal ST DIN1481
B05206010NSD1481
1.50€
7
Bolt Hex M10x1.5x 90 RH 10.9 ST DIN 931
B01110150090R3SD931
4.20€
8
Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
9
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
10
Washer ID10 OD24.5 h 3
WF861_113
6.30€
11
Washer ID10 OD24.5 h 2
WF861_112
6.30€
12
Washer ID10 OD24.5 h 1
WF861_111
6.30€
13
BushingT ID10 OD24 h10
WF901_905
7.30€
14
Bolt Allen M 6x1.0x 16 RH 8.8 ZN DIN 912
B01206100016R2ZD912
1.50€
15
Bolt Hex M 8x1.25x 16 RH 8.8 ZN DIN 933
B01108125016R2ZD933
1.50€
16
Nut Hex Flange M 8x1.25 RH 8.8 ZN
B02508125R2ZD69238
1.50€
17
Hub Center Ring
WF862_905
17.00€
18
Hub Spacer
WFGD3_117
16.00€
19
ABS Plate STI 2007-
WFGD3_120
7.30€
20
ABS Plate STI 2005-2007
WFGD3_121
7.30€
21
ABS Plate WRX 2007-
WFGD3_124
7.30€
Right Knuckle
1
Knuckle
2
CV Spacer
WFGD3_906
42.00€
3
Bolt Allen M12x1.25x 30 RH 12.9 ST DIN 912
B01212125030R4SD912
6.30€
4
Washer FlatSmall M12 ZN DIN433
B03212NAZD433
1.50€
5
Knuckle Shock Spacer
WFGD3_112
16.00€
6
Pin Spring 6x10 Normal ST DIN1481
B05206010NSD1481
1.50€
7
Bolt Hex M10x1.5x 90 RH 10.9 ST DIN 931
B01110150090R3SD931
4.20€
8
Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
9
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
10
Washer ID10 OD24.5 h 3
WF861_113
6.30€
11
Washer ID10 OD24.5 h 2
WF861_112
6.30€
12
Washer ID10 OD24.5 h 1
WF861_111
6.30€
13
BushingT ID10 OD24 h10
WF901_905
7.30€
14
Bolt Allen M 6x1.0x 16 RH 8.8 ZN DIN 912
B01206100016R2ZD912
1.50€
15
Bolt Hex M 8x1.25x 16 RH 8.8 ZN DIN 933
B01108125016R2ZD933
1.50€
16
Nut Hex Flange M 8x1.25 RH 8.8 ZN
B02508125R2ZD69238
1.50€
17
Hub Center Ring
WF862_905
17.00€
18
Hub Spacer
WFGD3_117
16.00€
19
ABS Plate STI 2007-
WFGD3_120
7.30€
20
ABS Plate STI 2005-2007
WFGD3_121
7.30€
21
ABS Plate WRX 2007-
WFGD3_124
7.30€
Tie Rod Assembly
1
Tie Rod Assembly
WFGD3_600A
80.00€
2
Rack Extender M14x1.5 M16x1.5 L24
WFR70_907
21.00€
3
Tie Rod Inner M14x1.5 M14x1.5 L366
STIEROD_M14_M14_L366
21.00€
4
Rod end 14x1.5 RH female CrMo
SRODEND14X1.5 RH F
26.00€
5
Spacer ID10 OD14 h 9
WF861_903
7.30€
