Toyota GT86 Front Drift Angle Lock Kit RHD
- 62 degrees of lock, parallel steering
You can tune your steering geometry towards positive Ackermann in just a few minutes even at trackside without messing up the alignment. Ackermann adjustment is included in the kit. - 7 kg of weight reduction
While still maintaining the required strength and stiffness. - 7075-T6 aluminium
Billet CNC knuckles and arms with optimized design and all double shear connections provide low weight and high strenght. - CrMo rod ends and sphericals used instead of OEM bushings
- Higher roll center (RC)
With our knuckle, the ball joint is lowered, which brings the front RC up on a lowered car, providing higher roll stiffness. This allows to remove the front anti roll-bar (sway bar) that is quite difficult to package with high lock angles. - Good camber control and minimal bump steer with high steering angles
On drift cars the dynamic camber and bump steer is much more important than static. With our kinematics we have assured that the camber will provide very good front grip and bump steer is minimal throughout the steering range. - Steering jacking control
During drifting, when steering angle is increased, jacking is also bigger, even with the same geometry it could become a problem. We have changed the geometry in a way that doesn't cause any handling issues. - Consistent and predictable self-alignment torque.
Caster is not the only important parameter to provide sufficient self-alignment torque, especially at high lock. It's the combination of different parameters to maintain consistent trail and self-alignment torque. With our setup the steering wheel turns always to the direction of movement and doesn't get stuck at full lock.

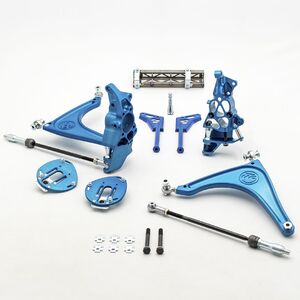

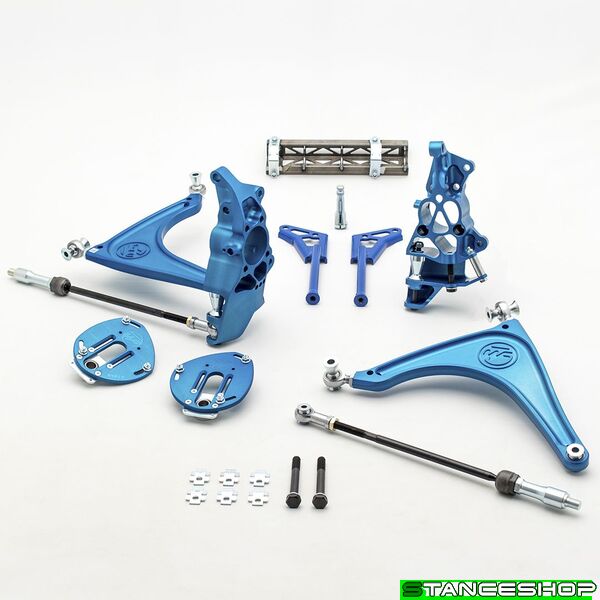

Kit includes:
- Pre-set lower control arms

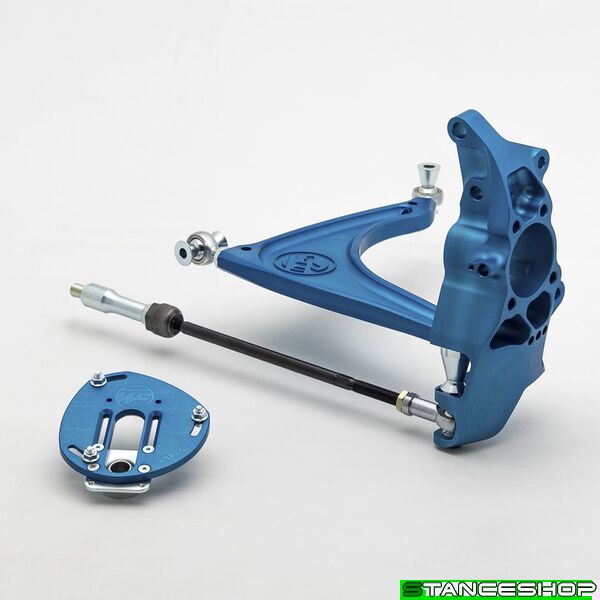

- Knuckles with hardware
- Assembeled tie rods
- Pre-set coilover upper mounts
- Rack relocating kit
- Crossmember supports
- Installation guide
Other information:
- This kit assumes coilovers for enough clearance
- Dependent on rim width and ET, wider fenders or fender flares are needed.
- Due to extremely wide engine bay on Subaru BRZ, we recommend using tires no bigger than 605mm (215/40R17, 225/40R17, 215/35R18, 225/35R18)
- With tire diameter up to 635mm (215/45R17, 225/45R17, 235/40R17, 225/40R18 etc) and lowered ride height the inner wheel wells need to be slightly modified.
- Minimum rim size is 17“, but we recommend using 18“
- Recommended backspacing is 135-140mm (7“ ET45; 8“ ET35; 9“ ET25). If ET is smaller, then wheels stay more outwards, if ET is bigger, then spacers need to be used.
- Original wheel speed sensor can be used
Complete parts
6
Steering Rack Support RHD
WF860_700A_RHD
110.00€
7
Steering Column Extender
WF860_750A
165.00€
Left Knuckle
1
Knuckle
2
Bolt Hex M10x1.5x130 RH 10.9 ST DIN 931
B01110150130R3SD931
6.30€
3
Ackermann Washer Cross 0 Offset
WF860_140
7.30€
4
Ackermann Washer Cross 1.5 Offset
WF860_141
7.30€
5
Ackermann Washer Cross 3 Offset
WF860_142
7.30€
6
Ackermann Washer Cross 4.5 Offset
WF860_143
7.30€
7
BushingT ID10 OD32 h50 Special
WF860_901
11.00€
8
Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
9
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
10
Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960
B01112150070R3SD960
6.30€
11
Washer Flat M12 ZN DIN125
B03112NAZD125
1.50€
12
Bolt Hex M 8x1.25x 70 RH 8.8 ZN DIN 931
B01108125070R2ZD931
1.50€
13
Washer Flat M 8 ZN DIN125
B03108NAZD125
1.50€
14
BushingT ID 8 OD16 h41
WF013_910
8.40€
15
Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8
B02208125R2ZD9858
1.50€
Right Knuckle
1
Knuckle
2
Bolt Hex M10x1.5x130 RH 10.9 ST DIN 931
B01110150130R3SD931
6.30€
3
Ackermann Washer Cross 0 Offset
WF860_140
7.30€
4
Ackermann Washer Cross 1.5 Offset
WF860_141
7.30€
5
Ackermann Washer Cross 3 Offset
WF860_142
7.30€
6
Ackermann Washer Cross 4.5 Offset
WF860_143
7.30€
7
BushingT ID10 OD32 h50 Special
WF860_901
11.00€
8
Washer Flat M10 ZN DIN125
B03110NAZD125
1.50€
9
Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
10
Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960
B01112150070R3SD960
6.30€
11
Washer Flat M12 ZN DIN125
B03112NAZD125
1.50€
12
Bolt Hex M 8x1.25x 70 RH 8.8 ZN DIN 931
B01108125070R2ZD931
1.50€
13
Washer Flat M 8 ZN DIN125
B03108NAZD125
1.50€
14
BushingT ID 8 OD16 h41
WF013_910
8.40€
15
Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8
B02208125R2ZD9858
1.50€

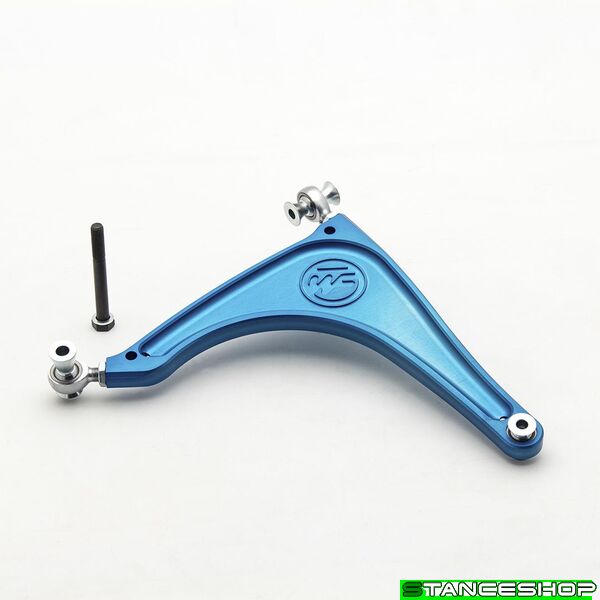

Left Lower Control Arm
1
Lower Control Arm
2
Spacer ID12 OD16 h18
WF136_903
8.40€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
5
Bolt Hex M14x1.5x120 RH 10.9 ST DIN 960
B01114150120R3SD960
8.40€
6
Washer Flat M14 ZN DIN125
B03114NAZD125
1.50€
7
Spacer ID14 OD16 h10
WF036_903
8.40€
8
Spacer ID14 OD16 h29
WF860_902
8.40€
9
Spacer ID12 OD16 h10
WF013_903
8.40€
10
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
11
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€
Right Lower Control Arm
1
Lower Control Arm
2
Spacer ID12 OD16 h18
WF136_903
8.40€
3
Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4
Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
5
Bolt Hex M14x1.5x120 RH 10.9 ST DIN 960
B01114150120R3SD960
8.40€
6
Washer Flat M14 ZN DIN125
B03114NAZD125
1.50€
7
Spacer ID14 OD16 h10
WF036_903
8.40€
8
Spacer ID14 OD16 h29
WF860_902
8.40€
9
Spacer ID12 OD16 h10
WF013_903
8.40€
10
Spherical ID16/OD32
SSPHERICAL 16/32
25.00€
11
C-Clip InternalSTD d32 ST DIN472
B04132SD472
1.50€

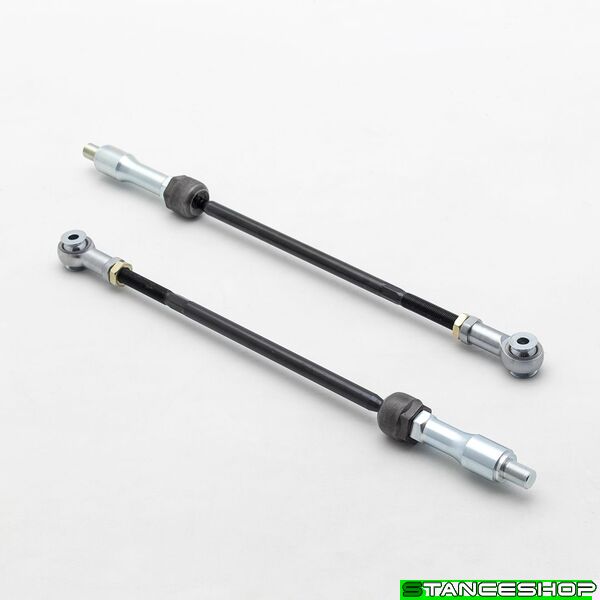

Left Tie Rod Assembly
1
Tie Rod Assembly
2
Rack Extender M14x1.5 M16x1.0 L85
WF860_904
21.00€
3
Tie Rod Inner M14x1.5 M14x1.5 L366
STIEROD_M14_M14_L366
21.00€
4
Spacer ID10 OD14 h 5.4
WF080_921
7.30€
5
Rod end 14x1.5 RH female CrMo
SRODEND14X1.5 RH F
26.00€
Right Tie Rod Assembly
1
Tie Rod Assembly
2
Rack Extender M14x1.5 M16x1.0 L101
WF860_903
21.00€
3
Tie Rod Inner M14x1.5 M14x1.5 L366
STIEROD_M14_M14_L366
21.00€
4
Spacer ID10 OD14 h 5.4
WF080_921
7.30€
5
Rod end 14x1.5 RH female CrMo
SRODEND14X1.5 RH F
26.00€

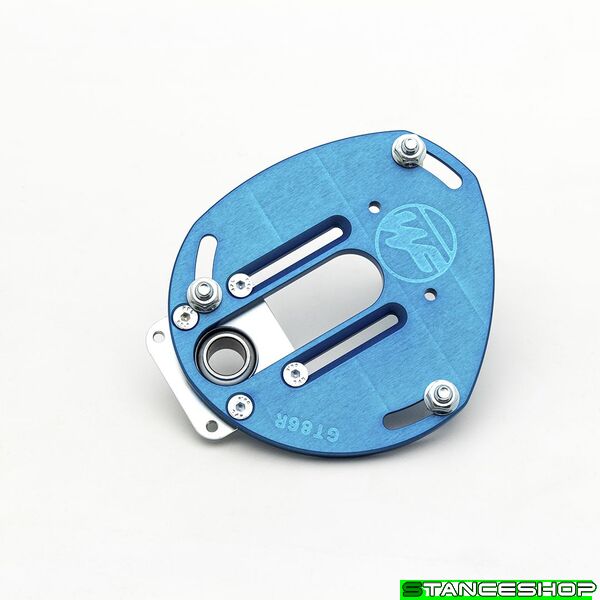

Left Top Mount
1
Top Mount
2
Camber Plate Spherical Housing REG
WF013_917A
50.00€
3
Bolt Hex M 8x1.25x 16 RH 8.8 ZN DIN 933
B01108125016R2ZD933
1.50€
4
Bolt AllenFlat M 6x1.0x 16 RH 8.8 ZN DIN7991
B01306100016R2SD7991
1.50€
5
Nut Hex Flange M 8x1.25 RH 8.8 ZN
B02508125R2ZD69238
1.50€
Right Top Mount
1
Top Mount
2
Camber Plate Spherical Housing REG
WF013_917A
50.00€
3
Bolt Hex M 8x1.25x 16 RH 8.8 ZN DIN 933
B01108125016R2ZD933
1.50€
4
Bolt AllenFlat M 6x1.0x 16 RH 8.8 ZN DIN7991
B01306100016R2SD7991
1.50€
5
Nut Hex Flange M 8x1.25 RH 8.8 ZN
B02508125R2ZD69238
1.50€
Left Subframe Support
1
Subframe Support
Right Subframe Support
1
Subframe Support

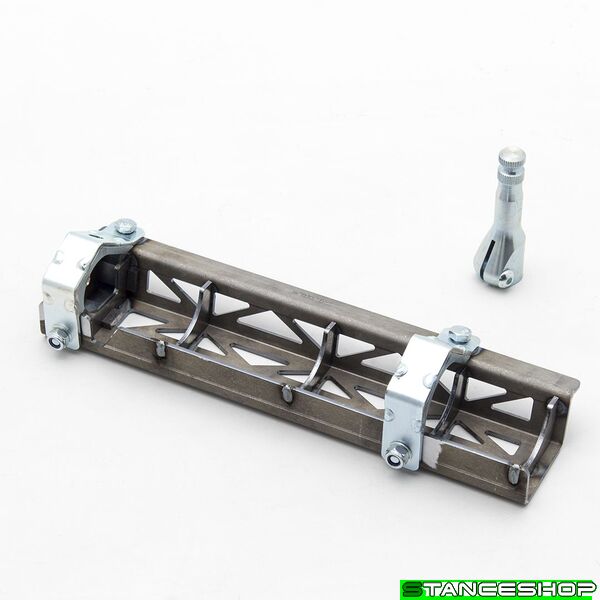

Steering Rack Support RHD
1
Steering Rack Support RHD
WF860_700A_RHD
110.00€
2
Steering Rack Support Clamp 1
WF860_730
21.00€
3
Steering Rack Support Clamp 2
WF860_740
21.00€
4
Bolt Hex M 8x1.25x 16 RH 8.8 ZN DIN 933
B01108125016R2ZD933
1.50€
5
Washer Flat M 8 ZN DIN125
B03108NAZD125
1.50€
6
Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8
B02208125R2ZD9858
1.50€
Steering Column Extender
1
Steering Column Extender
WF860_750A
165.00€
2
Bolt AllenButton M 8x1.25x 25 RH 10.9 ZN ISO7380
B01408125025R3ZI7380
1.50€
