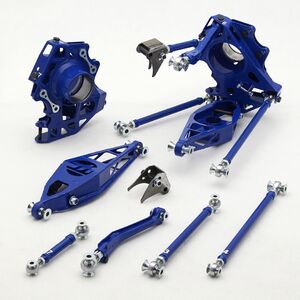

Toyota Supra A90 Rear Suspension Drop Knuckle Kit

• Revised kinematics, not just dropped knuckle.
  If the focus is more towards performance, then the car can act better with lowered ride height, but then the factory designed kinematics wouldn't work as it supposed to. The kit would give a good kinematics with lowered car - higher roll center, , revised cambergain, anti-squat and bumpsteer for maximum grip.
• Easy camber adjustment.
  As the top links are straight tubular type, then camber can be adjusted simply by changing their length.
• Bump steer adjustment.
  Possibility to adjust bump steer by changing rod end location in a slot.
• Anti-squat adjustment possibility.
  Possibility to adjust anti-squat by changing the top forward link height on upright. It can be done in less than 10 minutes at the trackside. Lowering link would increase anti-squat, raising it would decrease anti-squat.
• Original wheelspeed sensor (ABS sensor) can be used.
• Only takes either M model or 336mm or bigger brake discs.
  Smaller brakes will not fit.
• Wheel bearing size should be 45x85x41

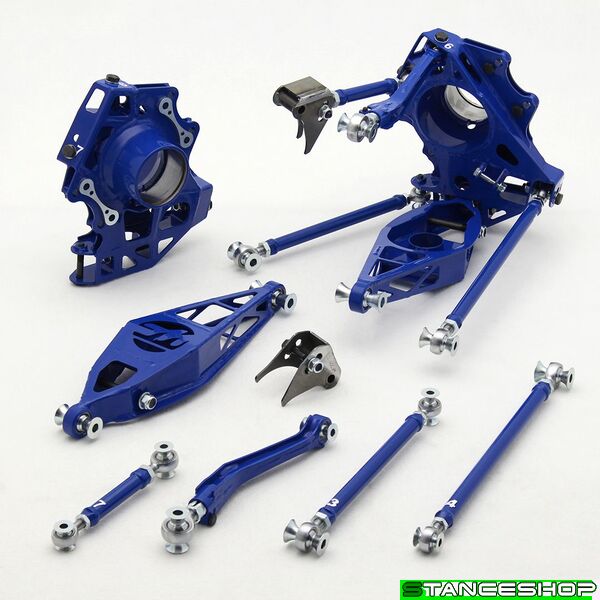

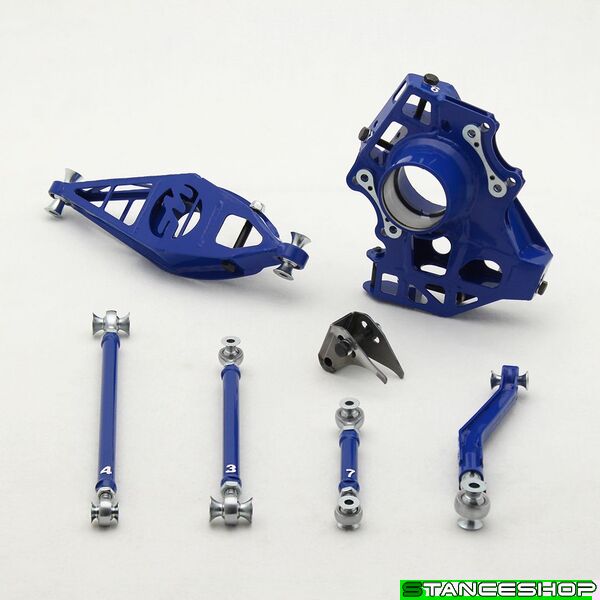

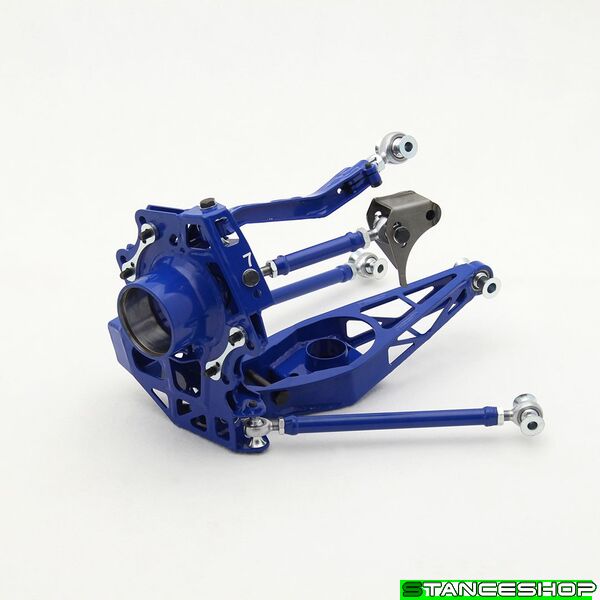

Kit includes:

• Pre-set suspension links.
• Uprights with hardware.
• Subframe bushings with sperical bearings.

Component fitment

• Wheel bearing: OEM rear wheel bearing can not be used, it has to be sourced from BMW E90. Only the bigger size wheel bearing can be used 45x85x41. Part number 33416775842.
• Wheel hub: Wheel hub has to be sourced from BMW E90 and shoulde be for the bigger wheel bearing. Part number 33416760058.
• Wheels: Wheel hub has 5x120 PCD. This means that OEM wheels can not be used.
• Brakes: Brakes has to be from BMW E90 with 336 mm brake disc or BMW E90 M3. OEM brakes do not fit.
• Strut: OEM fitment ride hight adjustable coilovers must be used.
• Driveshaft has to be from BMW E90 or E90 M3 or an aftermarket one that fits E90

Complete parts

1 Knuckle

Left

WF901_100LA

0.00€

Right

WF901_100RA

310.00€

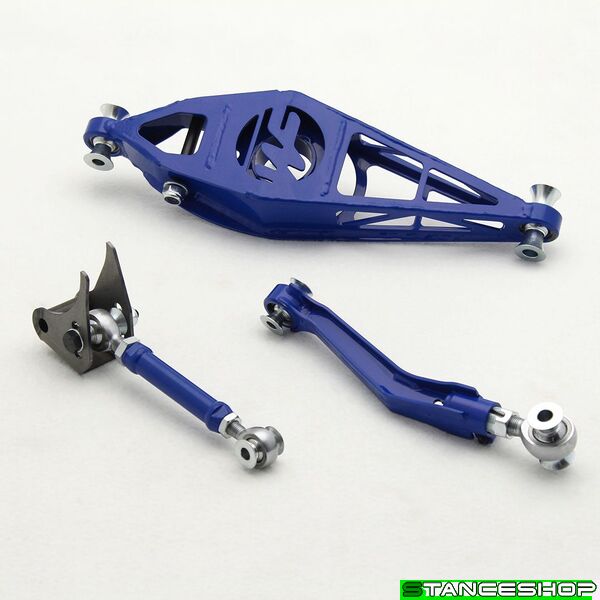

3 Suspension Arm #3

WF221_300A

210.00€

4 Suspension Arm #4

WF221_400A

145.00€

5 Suspension Arm #6

WFA91_600A

220.00€

6 Suspension Mod Arm #7

WF901_710A

215.00€

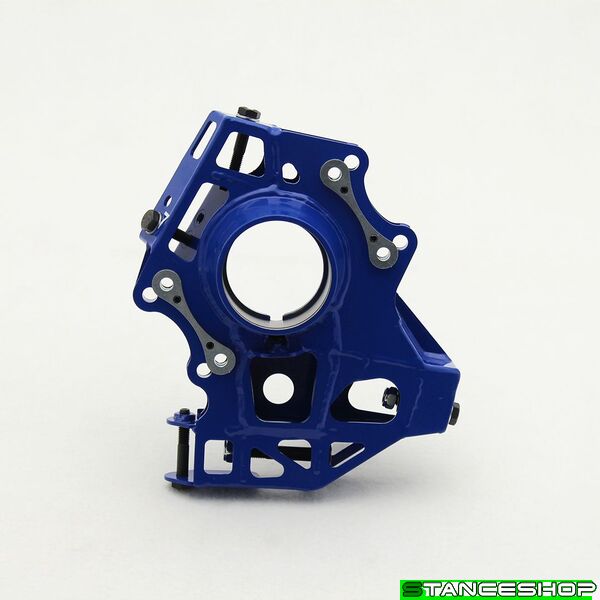

Left Knuckle

1 Knuckle

Left

WF901_100LA

0.00€

2 Bolt Hex M10x1.5x 35 RH 10.9 ST DIN 933

B01110150035R3SD933

2.80€



3 Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960

B01112150080R3SD960

6.30€

4 Washer Flat M12 ZN DIN125

B03112NAZD125

1.50€

5 Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8

B02212150R2ZD9858

1.50€

6 Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931

B01110150060R3SD931

2.80€

7 Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8

B02210150R2ZD9858

1.50€

8 Washer Flat M10 ZN DIN125

B03110NAZD125

1.50€

9 Bolt Hex M10x1.5x 55 RH 10.9 ST DIN 931

B01110150055R3SD931

2.80€

11 Bolt Hex M10x1.5x 45 RH 10.9 ST DIN 931

B01110150045R3SD931

2.80€

13 Brake Adapter

WF901_121

10.00€

14 Pin Spring 6x10 Normal ST DIN1481

B05206010NSD1481

1.50€

15 Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8

B02208125R2ZD9858

1.50€

16 Washer Flat M 8 ZN DIN125

B03108NAZD125

1.50€

17 Bolt Hex M 8x1.25x 45 RH 8.8 ZN DIN 931

B01108125045R2ZD931

1.50€

Right Knuckle

1 Knuckle

Right

WF901_100RA

310.00€

2 Bolt Hex M10x1.5x 35 RH 10.9 ST DIN 933

B01110150035R3SD933

2.80€



3 Bolt Hex M12x1.5x 80 RH 10.9 ST DIN 960

B01112150080R3SD960

6.30€

4 Washer Flat M12 ZN DIN125

B03112NAZD125

1.50€

5 Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8

B02212150R2ZD9858

1.50€

6 Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931

B01110150060R3SD931

2.80€

7 Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8

B02210150R2ZD9858

1.50€

8 Washer Flat M10 ZN DIN125

B03110NAZD125

1.50€

9 Bolt Hex M10x1.5x 55 RH 10.9 ST DIN 931

B01110150055R3SD931

2.80€

11 Bolt Hex M10x1.5x 45 RH 10.9 ST DIN 931

B01110150045R3SD931

2.80€

13 Brake Adapter

WF901_121

10.00€

14 Pin Spring 6x10 Normal ST DIN1481

B05206010NSD1481

1.50€

15 Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8

B02208125R2ZD9858

1.50€

16 Washer Flat M 8 ZN DIN125

B03108NAZD125

1.50€

17 Bolt Hex M 8x1.25x 45 RH 8.8 ZN DIN 931

B01108125045R2ZD931

1.50€

Suspension Arm #3

1 Suspension Arm #3

WF221_300A

210.00€

2 Spacer ID12 OD14 h14

WF113_905

8.40€

3 Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

4 Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

5 Nut Thin M12x1.5 RH 8.8 ZN DIN936/439

B02312150R2ZD936/439

2.80€

6 Spacer ID10 OD12 h14

WF080_906

8.40€

7 Rod end 12x1.5 RH male CrMo

SRODEND12X1.5 RH M

21.00€

Suspension Arm #4

1 Suspension Arm #4

WF221_400A

145.00€

2 Spacer ID12 OD14 h14

WF113_905

8.40€

3 Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

4 Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

5 Nut Thin M12x1.5 RH 8.8 ZN DIN936/439

B02312150R2ZD936/439

2.80€

6 Spacer ID10 OD12 h14

WF080_906

8.40€

7 Rod end 12x1.5 RH male CrMo

SRODEND12X1.5 RH M

21.00€

Suspension Arm #6

1 Suspension Arm #6

WFA91_600A

220.00€

2 Spacer ID12 OD16 h13.5

WFGD4_904

8.40€

3 Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

4 Double Adjuster Female/Male M16x1.5 M22x1.5

WF700_906

15.00€

5 Bolt Hex M 8x1.25x 25 RH 12.9 ST DIN 933

B01108125025R4SD933

1.50€

6 C-Clip InternalSTD d26 ST DIN472

B04126SD472

1.50€

7 Spacer ID10 OD12 h14

WF080_906

8.40€

8 Spherical ID12/OD26

SSPHERICAL 12/26

23.00€

Suspension Mod Arm #7

1 Suspension Mod Arm #7

WF901_710A

215.00€

2 Spacer ID10 OD14 h11

WF013_901

7.30€

3 Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

4 Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

5 Nut Thin M12x1.5 RH 8.8 ZN DIN936/439

B02312150R2ZD936/439

2.80€

6 Rod end 12x1.5 RH male CrMo

SRODEND12X1.5 RH M

21.00€

7 Spacer ID10 OD12 h 7

WF862_902

7.30€
