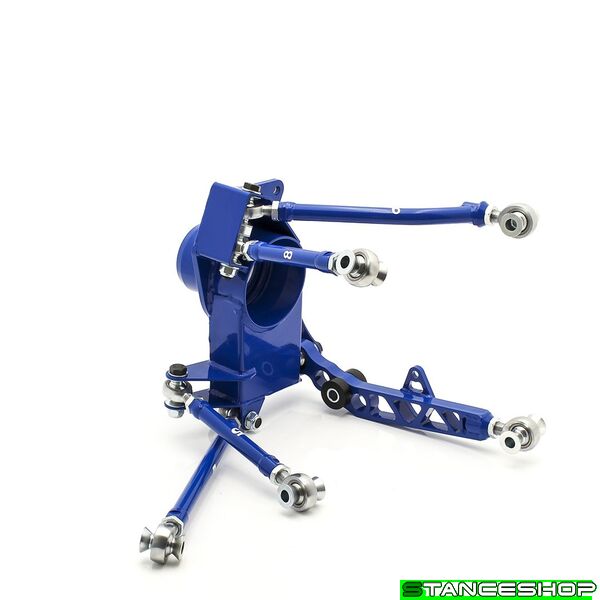

Toyota Supra JZA80 Rear Suspension Drop Knuckle Kit

• Higher roll center (RC).
  On Supra rear suspension the RC is brought back in normal range on lowered car providing higher roll stiffness.
• Less camber gain.
  Supra rear suspension has already a lot of camber gain at original ride height. With lowered car the camber gain gets even bigger. On Wisefab setup the camber gain is decreased to provide a better grip.
• Anti-squat.
  Original Supra rear suspension has some negative anti-squat. That means the rear would squat a lot during acceleration. Anti-squat is changed to slightly positive to provide more stable motion at rear.
• Adjustable spring and shock absorber motion ratio.
  The shock has 3 attachment possibilities on rear arm, which allows to change suspension stiffness and handling very quickly without changing the spring and messing up ride heights.

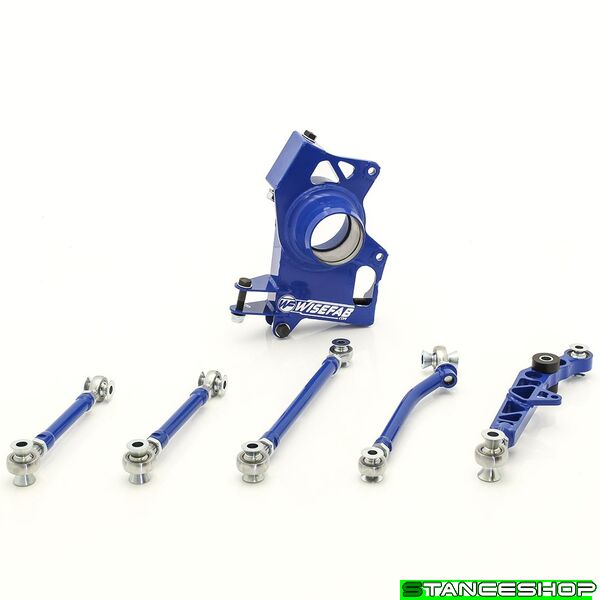

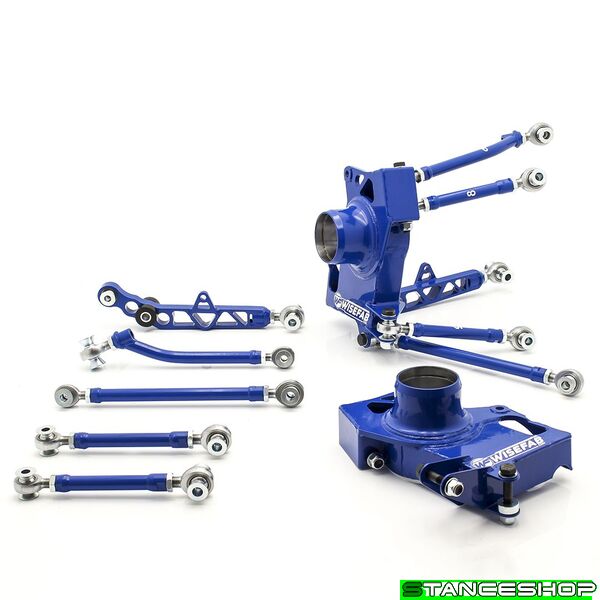

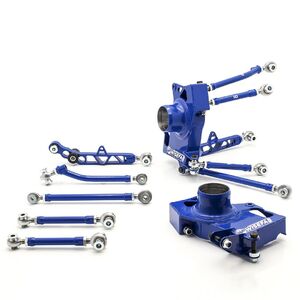

Kit includes:

• Pre-set suspension control arms.
• Knuckles with hardware.
• Installation guide.

Other components, packaging and clearance.

• Hub to hub length (track) is the same as original, as this is defined by halfshaft lengths.
• This kit assumes coilovers to have enough clearance.
• Ride height is designed to be ~80mm from front subframe to ground and rear according to front.
• Dependent on rim width and ET, inner wheel wells need to be slightly modified.
• Minimum rim size is 17”. We have tested the kit with 9,5”x18” ET 35
  Maximum tire size that is tested is 265/35 R18.

The kit is designed and manufactured the way that after installation and toe adjustment it’s ready to use right away.

Complete parts

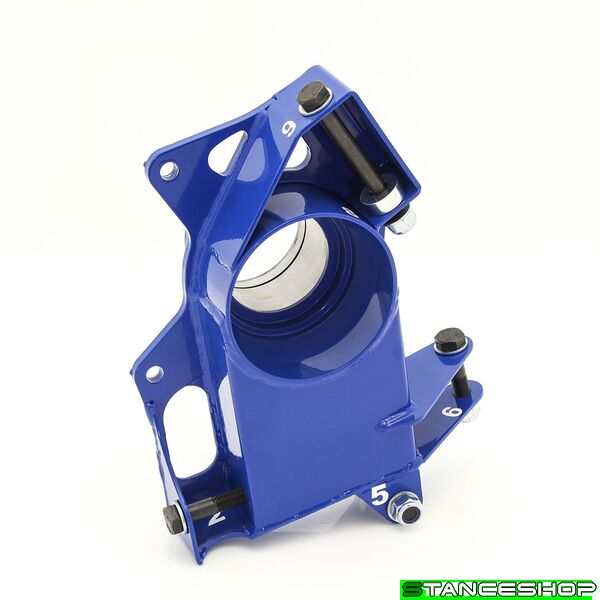

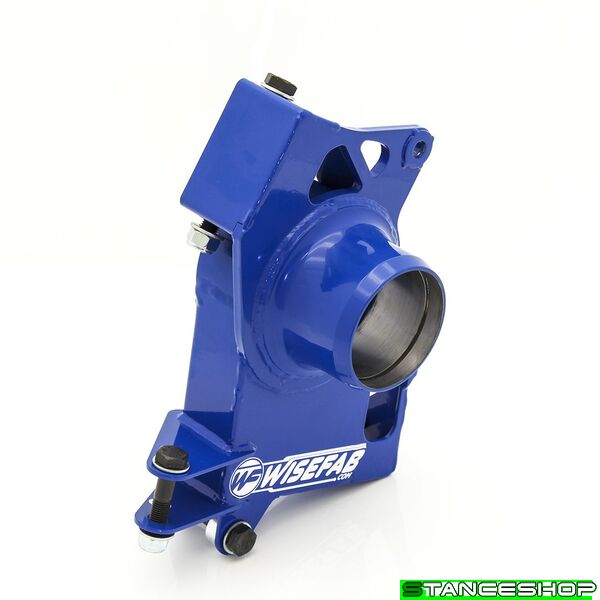

1 Knuckle

Left

WF180_100LA

345.00€

Right

WF180_100RA

345.00€

2 Suspension Arm #2

Left

WF180_200LA

190.00€

Right

WF180_200RA

190.00€

3 Suspension Arm #5

WF180_500A

145.00€

4 Suspension Arm #6

WF180_600A

145.00€

5 Suspension Arm #8

WF180_800A

145.00€

6 Suspension Arm #9

WF180_900A

150.00€

Left Knuckle

1 Knuckle

Left

WF180_100LA

345.00€

2 Bolt Hex M12x1.5x 60 RH 10.9 ST DIN 960

B01112150060R3SD960

4.20€

3 Washer FlatSmall M12 ZN DIN433

B03212NAZD433

1.50€

4 Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960

B01112150070R3SD960

6.30€

5 BushingT ID12 OD28 h11

WF180_905

8.40€

6 Bolt Hex M12x1.5x110 RH 10.9 ST DIN 960

B01112150110R3SD960

7.30€

7 Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8

B02212150R2ZD9858

1.50€

Right Knuckle

1 Knuckle

Right

WF180_100RA

345.00€

2 Bolt Hex M12x1.5x 60 RH 10.9 ST DIN 960

B01112150060R3SD960

4.20€

3 Washer FlatSmall M12 ZN DIN433

B03212NAZD433

1.50€

4 Bolt Hex M12x1.5x 70 RH 10.9 ST DIN 960

B01112150070R3SD960

6.30€

5 BushingT ID12 OD28 h11

WF180_905

8.40€

6 Bolt Hex M12x1.5x110 RH 10.9 ST DIN 960

B01112150110R3SD960

7.30€

7 Nut Nylock M12x1.5 RH 8.8 ZN DIN985-8

B02212150R2ZD9858

1.50€

Left Suspension Arm #2

1 Suspension Arm #2

Left

WF180_200LA

190.00€

2 Spacer ID14 OD16 h19

WF180_910

8.40€

3 Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

4 Nut Thin M16x1.5 RH 8.8 ZN DIN936/439

B02316150R2ZD936/439

2.80€

5 BushingPOM ID20 OD24/39 h24.5

WF180_904

8.40€

6 BushingT ID14 OD20 h50

WF180_902

8.40€

7 Spacer ID12 OD16 h10

WF013_903

8.40€

8 Spherical ID16/OD32

SSPHERICAL 16/32

25.00€

9 C-Clip InternalSTD d32 ST DIN472

B04132SD472

1.50€

Right Suspension Arm #2

1 Suspension Arm #2

Right

WF180_200RA

190.00€

2 Spacer ID14 OD16 h19

WF180_910

8.40€

3 Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

4 Nut Thin M16x1.5 RH 8.8 ZN DIN936/439

B02316150R2ZD936/439

2.80€

5 BushingPOM ID20 OD24/39 h24.5

WF180_904

8.40€

6 BushingT ID14 OD20 h50

WF180_902

8.40€

7 Spacer ID12 OD16 h10

WF013_903

8.40€

8 Spherical ID16/OD32

SSPHERICAL 16/32

25.00€

9 C-Clip InternalSTD d32 ST DIN472

B04132SD472

1.50€

Suspension Arm #5

1 Suspension Arm #5

WF180_500A

145.00€

2 Spacer ID14 OD16 h14

WF180_909

8.40€

3 Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

4 Nut Thin M16x1.5 RH 8.8 ZN DIN936/439

B02316150R2ZD936/439

2.80€

5 Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

6 Spacer ID12 OD14 h 8.5

WF180_901

8.40€

7 Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

Suspension Arm #6

1 Suspension Arm #6

WF180_600A

145.00€

2 Spacer ID14 OD16 h11.5

WF180_907

8.40€

3 Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

4 Nut Thin M16x1.5 RH 8.8 ZN DIN936/439

B02316150R2ZD936/439

2.80€

5 Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

6 Spacer ID12 OD14 h 8.5

WF180_901

8.40€

7 Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

Suspension Arm #8

1 Suspension Arm #8

WF180_800A

145.00€

2 Spacer ID14 OD16 h15

WF180_908

8.40€

3 Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

4 Nut Thin M16x1.5 RH 8.8 ZN DIN936/439

B02316150R2ZD936/439

2.80€

5 Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

6 Spacer ID12 OD14 h 8.5

WF180_901

8.40€

7 Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€

Suspension Arm #9

1 Suspension Arm #9

WF180_900A

150.00€

2 Spacer ID14 OD16 h15

WF180_908

8.40€

3 Rod end 16x1.5 RH male CrMo

SRODEND16X1.5 RH M

26.00€

4 Nut Thin M16x1.5 RH 8.8 ZN DIN936/439

B02316150R2ZD936/439

2.80€

5 Nut Thin M14x1.5 LH 8.8 ZN DIN936/439

B02314150L2ZD936/439

2.80€

6 Spacer ID12 OD14 h 8.5

WF180_901

8.40€

7 Rod end 14x1.5 LH male CrMo

SRODEND14X1.5 LH M

21.00€
