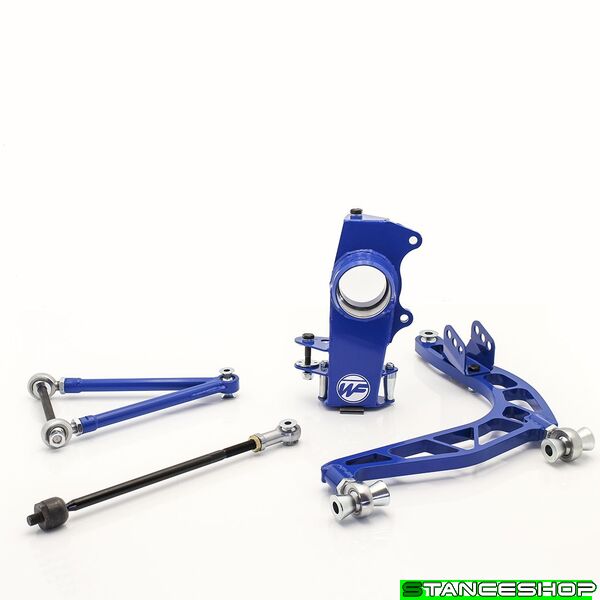

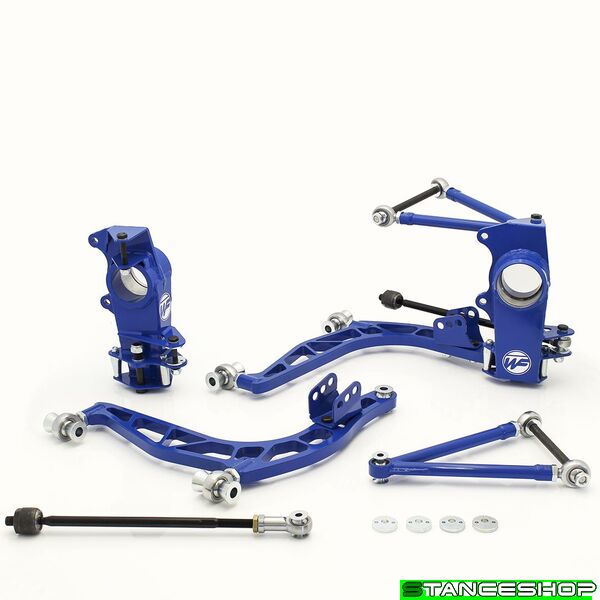

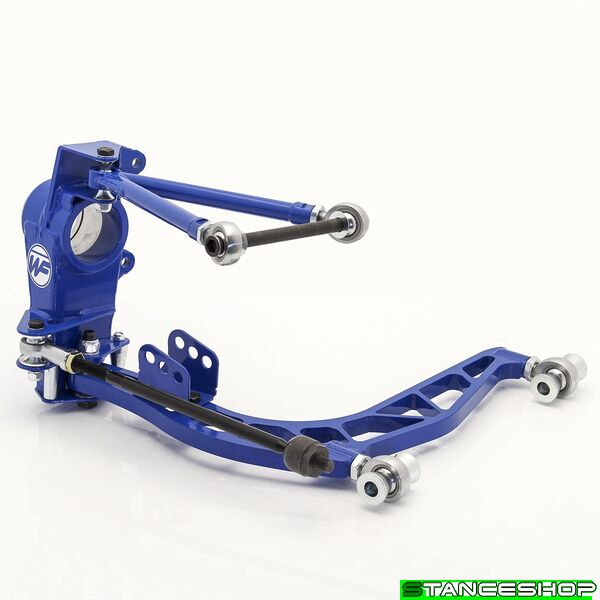

Toyota Supra JZA80 Soarer Front Drift Angle Lock Kit
- 65 degrees of lock, parallel steering.
- Both wheels turn the same angle. You could tune your steering geometry either towards positive or negative Ackermann in just a few minutes even at trackside without messing up an alignment.
Ackermann adjustment kit included. - Higher roll center (RC).
On Wisefab knuckle, both joints have lowered about 60mm, which brings the front RC up on lowered car, providing higher roll stiffness and letting to remove the front anti roll bar (sway bar) that is quite difficult to package with that high lock angles. - Very good camber control and minimal bump steer with high steering angles.
On drift cars the dynamic camber and bump steer is much more important than static. With our kinematics we have assured that the camber would provide very good front grip and bump steer is minimal at all the range of steering. - Steering jacking control.
During drifting, when steering angle is much bigger, jacking is also bigger, even with the same geometry and it could become a problem. We have changed the geometry that it doesn’t cause any handling issues. - Consistent and predictable self-alignment torque.
Caster is not the only important parameter to provide sufficient self-alignment torque especially at high lock. It’s the combination of different parameters to maintain consistent trail and self-alignment torque. With our setup the steering wheel turns always to the direction of movement and doesn’t get stuck at full lock. - Adjustable spring and shock absorber motion ratio.
The shock lower bracket has 3 attachment possibilities, which allows to change suspension stiffness and handling very quickly without changing the spring and messing up ride heights.

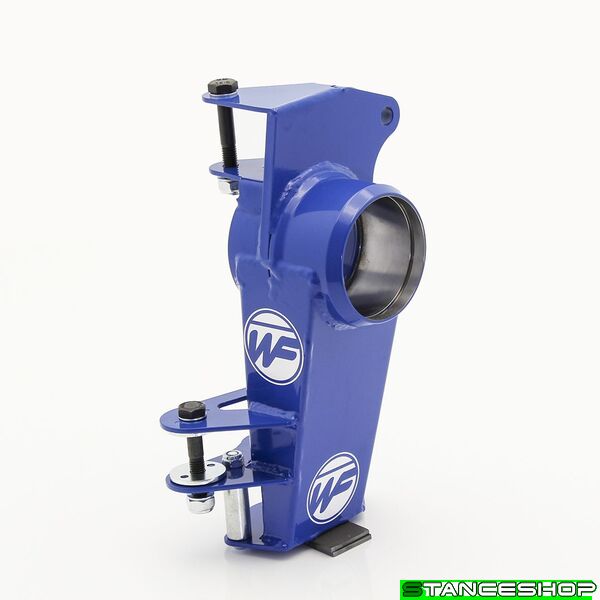

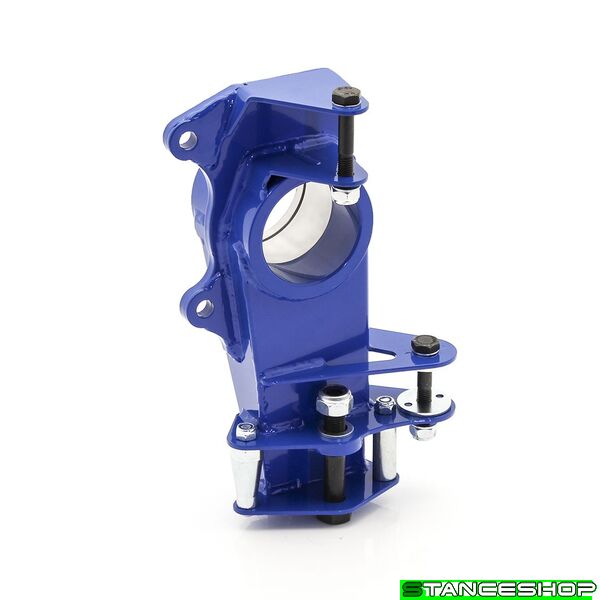

Left Knuckle
1 Knuckle
2 Bolt AllenButton M 8x1.25x 60 RH 8.8 ZN ISO7380
B01408125060R2ZI7380
2.80€
3 BushingT ID 8 OD22 h46
WF080_922
10.00€
4 Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8
B02208125R2ZD9858
1.50€
5 Bolt Hex M14x1.5x 80 RH 10.9 ST DIN 960
B01114150080R3SD960
8.40€
6 Washer FlatSmall M14 ZN DIN433
B03214NAZD433
1.50€
7 Nut Nylock M14x1.5 RH 8.8 ZN DIN985-8
B02214150R2ZD9858
1.50€
8 Bolt Hex M10x1.5x 65 RH 10.9 ST DIN 931
B01110150065R3SD931
2.80€
9 BushingT ID 8 OD16 h46
WF080_923
8.40€
10 Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
11 Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
12 Ackermann Washer Round 0 offset
WF013_140
7.30€
13Ackermann Washer Round 3 Offset
WF080_142
7.30€
14 Ackermann Washer Round 4.5 Offset
WF080_143
7.30€
15 Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931
B01110150060R3SD931
2.80€
Right Knuckle
1 Knuckle
2 Bolt AllenButton M 8x1.25x 60 RH 8.8 ZN ISO7380
B01408125060R2ZI7380
2.80€
3 BushingT ID 8 OD22 h46
WF080_922
10.00€
4 Nut Nylock M 8x1.25 RH 8.8 ZN DIN985-8
B02208125R2ZD9858
1.50€
5 Bolt Hex M14x1.5x 80 RH 10.9 ST DIN 960
B01114150080R3SD960
8.40€
6 Washer FlatSmall M14 ZN DIN433
B03214NAZD433
1.50€
7 Nut Nylock M14x1.5 RH 8.8 ZN DIN985-8
B02214150R2ZD9858
1.50€
8 Bolt Hex M10x1.5x 65 RH 10.9 ST DIN 931
B01110150065R3SD931
2.80€
9 BushingT ID 8 OD16 h46
WF080_923
8.40€
10 Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
11 Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
12 Ackermann Washer Round 0 offset
WF013_140
7.30€
13 Ackermann Washer Round 3 Offset
WF080_142
7.30€
14 Ackermann Washer Round 4.5 Offset
WF080_143
7.30€
15 Bolt Hex M10x1.5x 60 RH 10.9 ST DIN 931
B01110150060R3SD931
2.80€

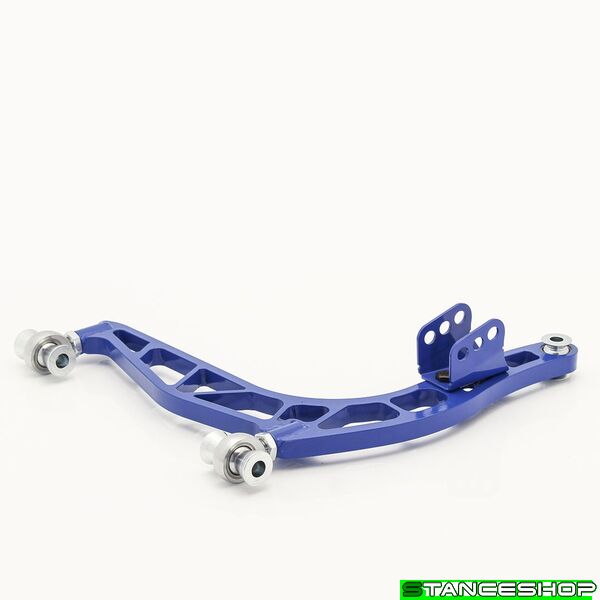

Left Lower Control Arm
1 Lower Control Arm
2 Spacer ID16 OD18 h23.7
WF080_901
8.40€
4 Nut Thin M18x1.5 RH 8.8 ZN DIN936/439
B02318150R2ZD936/439
2.80€
5 Spacer ID16 OD18 h22.25
WF080_902
8.40€
6 Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
7 Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
8 Lower Control Arm Shock Mount
WF080_220
20.00€
9 Bolt Hex M10x1.5x 35 RH 10.9 ST DIN 933
B01110150035R3SD933
2.80€
10 Spacer ID14 OD18 h 8.5
WF080_903
8.40€
11 C-Clip InternalSTD d35 ST DIN472
B04135SD472
1.50€
12 Spherical ID18/OD35
SSPHERICAL 18/35
26.00€
Right Lower Control Arm
1 Lower Control Arm
2 Spacer ID16 OD18 h23.7
WF080_901
8.40€
4 Nut Thin M18x1.5 RH 8.8 ZN DIN936/439
B02318150R2ZD936/439
2.80€
5 Spacer ID16 OD18 h22.25
WF080_902
8.40€
6 Nut Nylock M10x1.5 RH 8.8 ZN DIN985-8
B02210150R2ZD9858
1.50€
7 Washer FlatSmall M10 ZN DIN433
B03210NAZD433
1.50€
8 Lower Control Arm Shock Mount
WF080_220
20.00€
9 Bolt Hex M10x1.5x 35 RH 10.9 ST DIN 933
B01110150035R3SD933
2.80€
10 Spacer ID14 OD18 h 8.5
WF080_903
8.40€
11 C-Clip InternalSTD d35 ST DIN472
B04135SD472
1.50€
12 Spherical ID18/OD35
SSPHERICAL 18/35
26.00€

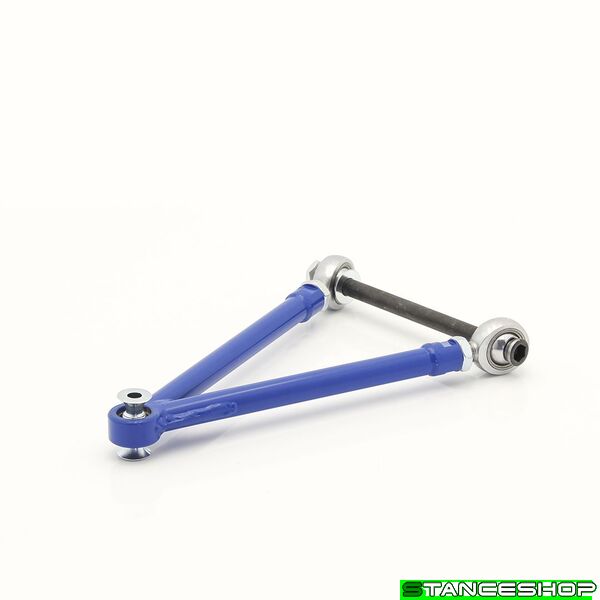

Upper Control Arm
1 Upper Control Arm
WF080_300A
235.00€
2 Nut Special M14x1.50 RH ZN SPC
WF080_908
13.00€
3 Rod end 16x1.5 RH male CrMo
SRODEND16X1.5 RH M
26.00€
4 Spacer ID14 OD16 h 4.5
WF080_909
7.30€
5 Nut Thin M16x1.5 RH 8.8 ZN DIN936/439
B02316150R2ZD936/439
2.80€
6 Bolt Allen M14x1.50x200 RH 12.9 ST SPC
WF080_907
31.00€
7 Spacer ID10 OD12 h14
WF080_906
8.40€
8 C-Clip InternalSTD d26 ST DIN472
B04126SD472
1.50€
9 Spherical ID12/OD26
SSPHERICAL 12/26
23.00€
Tie Rod Assembly
1 Tie Rod Assembly
WF080_600A
70.00€
2 Tie Rod Inner M14x1.5 M14x1.5 L366
STIEROD_M14_M14_L366
21.00€
3 Spacer ID10 OD14 h 5.4
WF080_921
7.30€
4 Rod end 14x1.5 RH female CrMo
SRODEND14X1.5 RH F
26.00€
