TA-Technix airride Honda Civic V+VI / CRX III

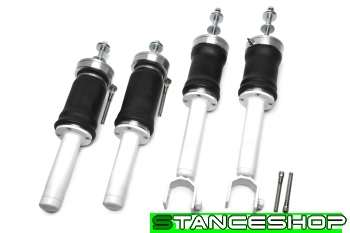

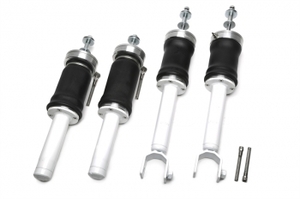

TA-Technix air suspension kit + TA-Technix air management system for air suspension / airride

Honda Civic V Hatchback (EG)
1.3 -16V (EG3), 1.5i -16V (EG4), 1.6 -16V Vtec (EG5),1.6 VTi -16V (EG6)
year 10.1991 - 11.1995
Honda Civic VI Hatchback (EJ,EK)
1.4i/s (EJ9), 1.5i (EK3), 1.6i (EK1), 1.6VTi (EK4)
year 11.1995 - 02.2001
Honda Civic V Notchback (EG,EH)
1.5i -16V (EG8), 1.6 VTi (EG9), 1.6 -16V Vtec (EH9)
year 10.1991 - 11.1995
Honda Civic VI Notchback (EJ,EK)
1.4i (EJ9), 1.5i (EK3), 1.6i Vtec, 1.6VTi (EK4)
year 11.1995 - 02.2001
Honda CRX III (EH,EG)
1.6i VTi (EG2), 1.6 ESi (EH6)
year 03.1992 - 12.1998
Honda Civic VI Coupe (EJ)
1.6i Vtec (EJ1), 1.5i LSi (EJ2), 1.6i (EJ6)
year 08.1993 - 03.1996
front load: 860kg
rear load: 820kg

Installation information on EG + EH models for the front axle:
adaptation works for brake hose holders are required
installation instructions for the rear axle:
52mm or 46mm diameter / distance
appropriate adapters are included in delivery

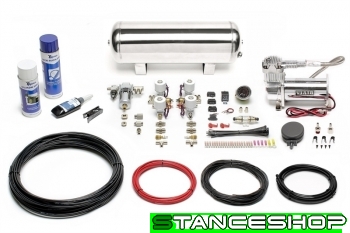

TA-Technix air management system for air suspension / airride
380er Viair compressor
11,5 liters / 3 gallons - chrome tank
Viair dual-needle indicator, colour black
6mm PU hose, 25m, colour black
hose cutter
4 pcs. 2/2-way valve, 1/4 inch
warning buzzer and LED
opener and closer of pressure switch
electronic set with 3 switches, spade connector, cable, cable zip tie and relay
all Fittings, including check valve and safety valve
2 pcs. emergency ventilation valves
safety valve
water separator
leak detection spray
silicone spray
thread sealant
